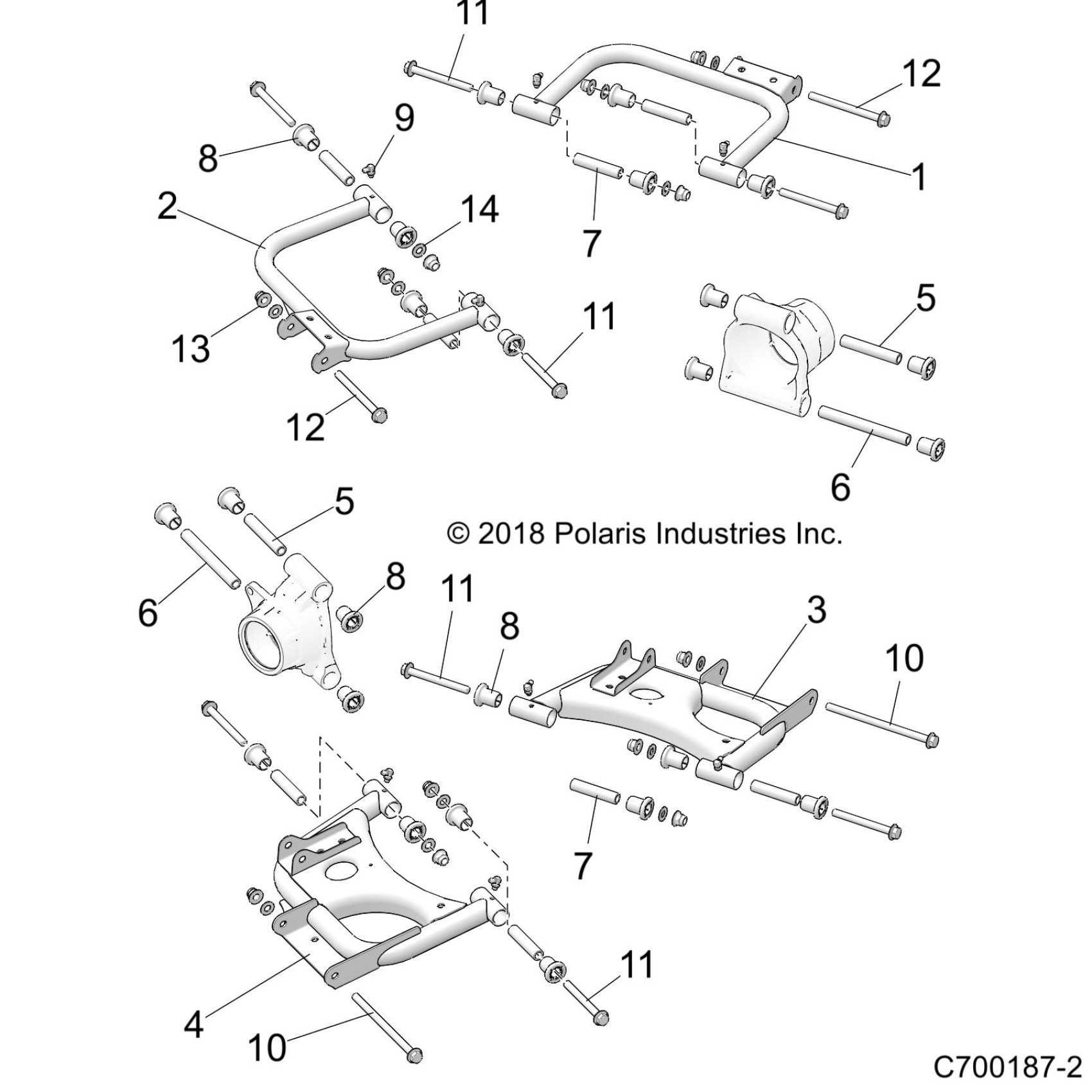

Polaris RZR 570 (R03) - Z20CHA57A2/E57AM SUSPENSION, REAR CONTROL ARMS - Z20CHA57A2/E57AM (C700187-2) Diagram

#

Description
Price

1

ARM, CONTROL, UPPER, REAR, MATTE BLACK, LH

1018121-458

$116.17

2

ARM, CONTROL, UPPER, REAR, MATTE BLACK, RH

1018123-458

$116.17

3

WELD-CNTRL ARM,LWR,REAR,LH,BLK

1021704-458

$194.99

4

WELD-CNTRL ARM,LWR,REAR,RH,BLK

1021705-458

$194.99

5

SHAFT, PIVOT

5138794

$5.65

5

SHAFT, PIVOT

5138794

$5.65

6

SHAFT, PIVOT

5138796

$12.13

6

SHAFT, PIVOT

5138796

$12.13

7

SHAFT-PIVOT,70.99MM,15.88OD

5138797

$10.44

7

SHAFT-PIVOT,70.99MM,15.88OD

5138797

$10.44

8

BUSHING-STANDARD,ORV

5439874

$2.38

8

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.32

8

BUSHING-STANDARD,ORV

5439874

$2.38

8

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.32

8

BUSHING-STANDARD,ORV

5439874

$2.38

8

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.32

9

FITTING, ZERK

7080510

$5.56

10

SCREW

7519042

$9.52

10

SCREW

7519042

$9.52

11

SCREW

7519043

$9.52

11

SCREW

7519043

$9.52

11

SCREW

7519043

$9.52

11

SCREW

7519043

$9.52

12

SCREW

7519365

$13.49

12

SCREW

7519365

$13.49

13

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

14

WASHER

7556153

$1.98
