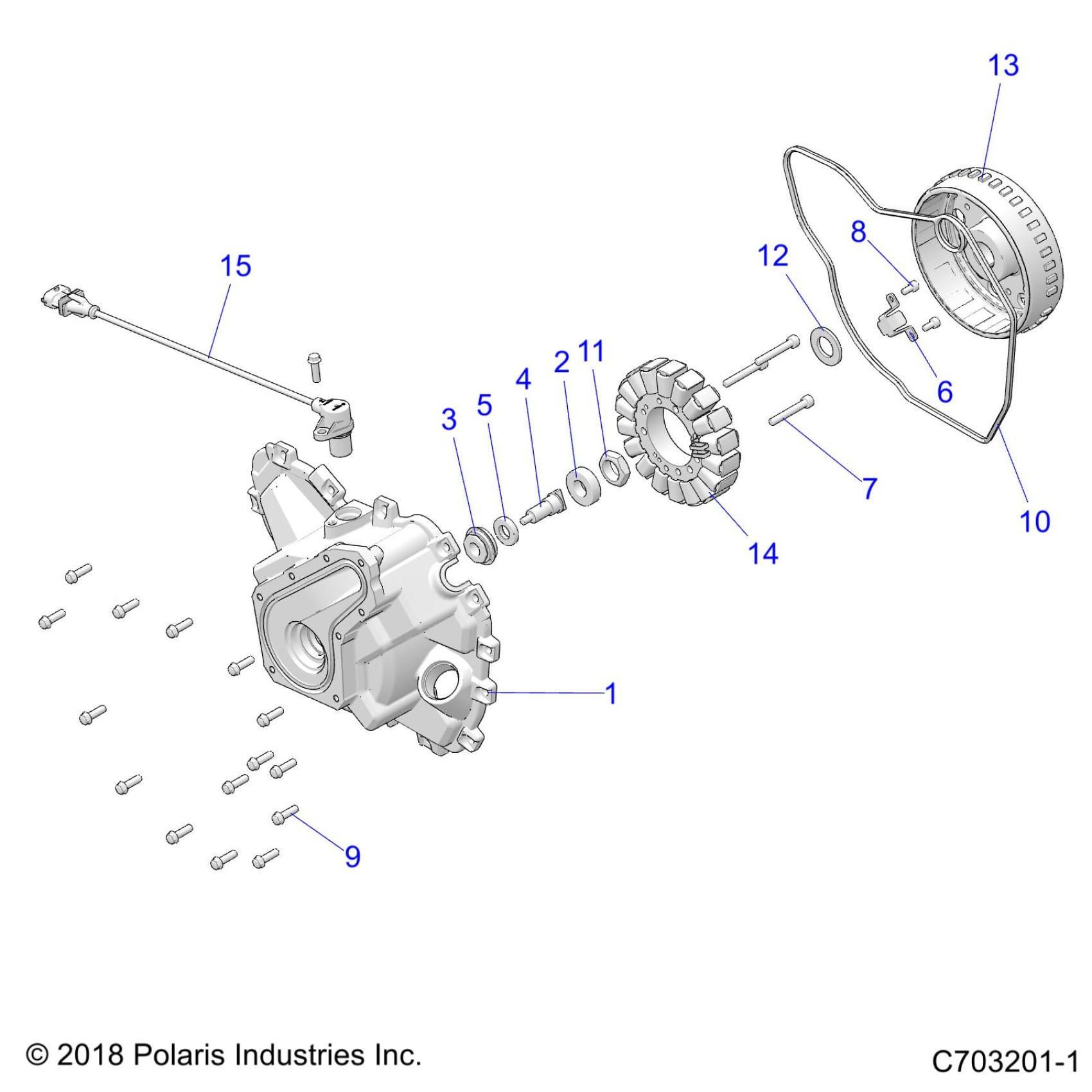

Polaris RZR 570 (R03) - Z20CHA57A2/E57AM ENGINE, STATOR COVER AND FLYWHEEL - Z20CHA57A2/E57AM (703201-1) Diagram

Description

Price

KIT, IGNITION COVER [INCL. 2-6, IMPELLER]

2204736

$227.99

BEARING-SHAFT,WATERPUMP [FROM 1/15/2023]

3515828

$10.32

BEARING, SHAFT, WATERPUMP [TO 1/15/2023]

3514696

$10.32

SEAL-WATERPUMP SHAFT,WATER

3610173

$15.87

SHAFT-PUMP DRIVE,G-1CYL

5138035

$40.46

SEAL, TYPE S

5411197

$24.27

GUIDE-STATOR LEAD

5254832

$8.08

SCR-M6X1.0X40,HX/SOC/CP-Y/D

7510005

$5.70

SCREW-M5X0.8X10 SOC/CP-D

7517847

$3.17

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.17

GASKET-STATOR COVER

5414329

$24.27

NUT-HEX,M18X1.5 4 JAM,RH

7547488

$7.14

WASHER-19X34X3, HARD

7556878

$3.97

FLYWHEEL

4016073

$295.22

STATOR,560W

4014406

$598.49

SENSOR, CRANK POSITION

2411719

$105.22
