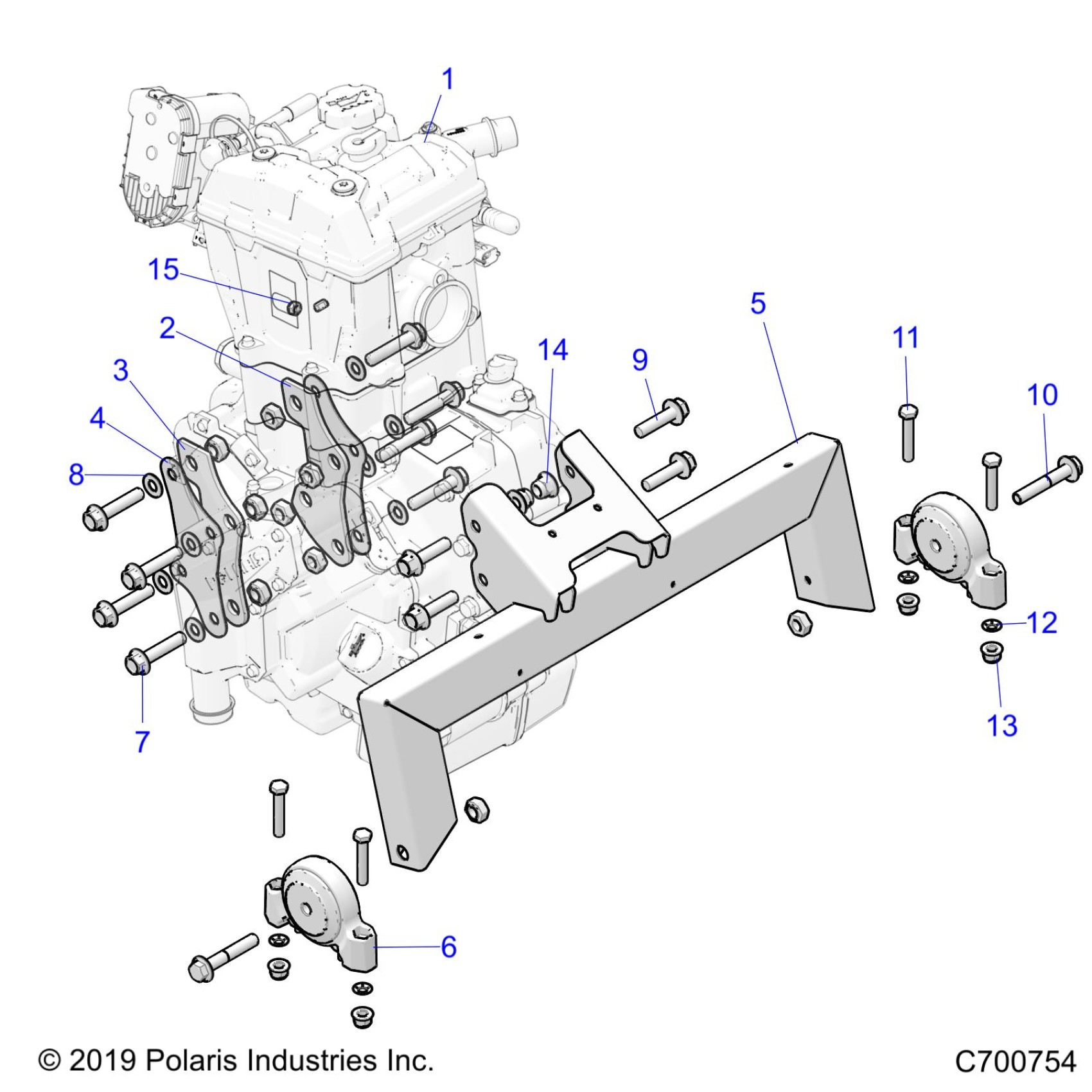

Polaris RZR 570 (R03) - Z20CHA57A2/E57AM ENGINE, MOUNTING & LONG BLOCK - Z20CHA57A2/E57AM (C700754) Diagram

#

Description

Price

1

K-LONG BLOCK 570 [NOTE: THE LONG BLOCK ASSEMBLY CONTAINS A CRANKCASE, BALANCE SHAFT, CYLINDER HEAD, PISTON AND CRANKSHAFT ASSEMBLIES. ALSO INCLUDES THE SEALS, SPARK PLUG, VALVE COVER AND OIL PUMP.

2207381

$4,162.39

2

TRANSMISSION, INNER, LEFT

1018420

Unavailable

3

TRANSMISSION, INNER, RIGHT

1018421

Unavailable

4

BRKT-COUPLER,TRANS,OUTER

5255321

$10.39

5

WELD-MNT,ENGINE,BLK

1018912-329

$243.99

6

MOUNT-ISOLATOR,DRIVELINE

1332955

$71.99

7

SCREW

7518971

$6.39

8

WASHER

7556153

$1.99

9

SCREW

7519332

$5.59

10

BOLT

7518826

$4.79

11

SCREW

7519097

$1.59

12

Nut, Pal

7547030

$4.79

13

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

14

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

15

NUT-6MM X 1 NYLOK-Z

7546703

$1.49
