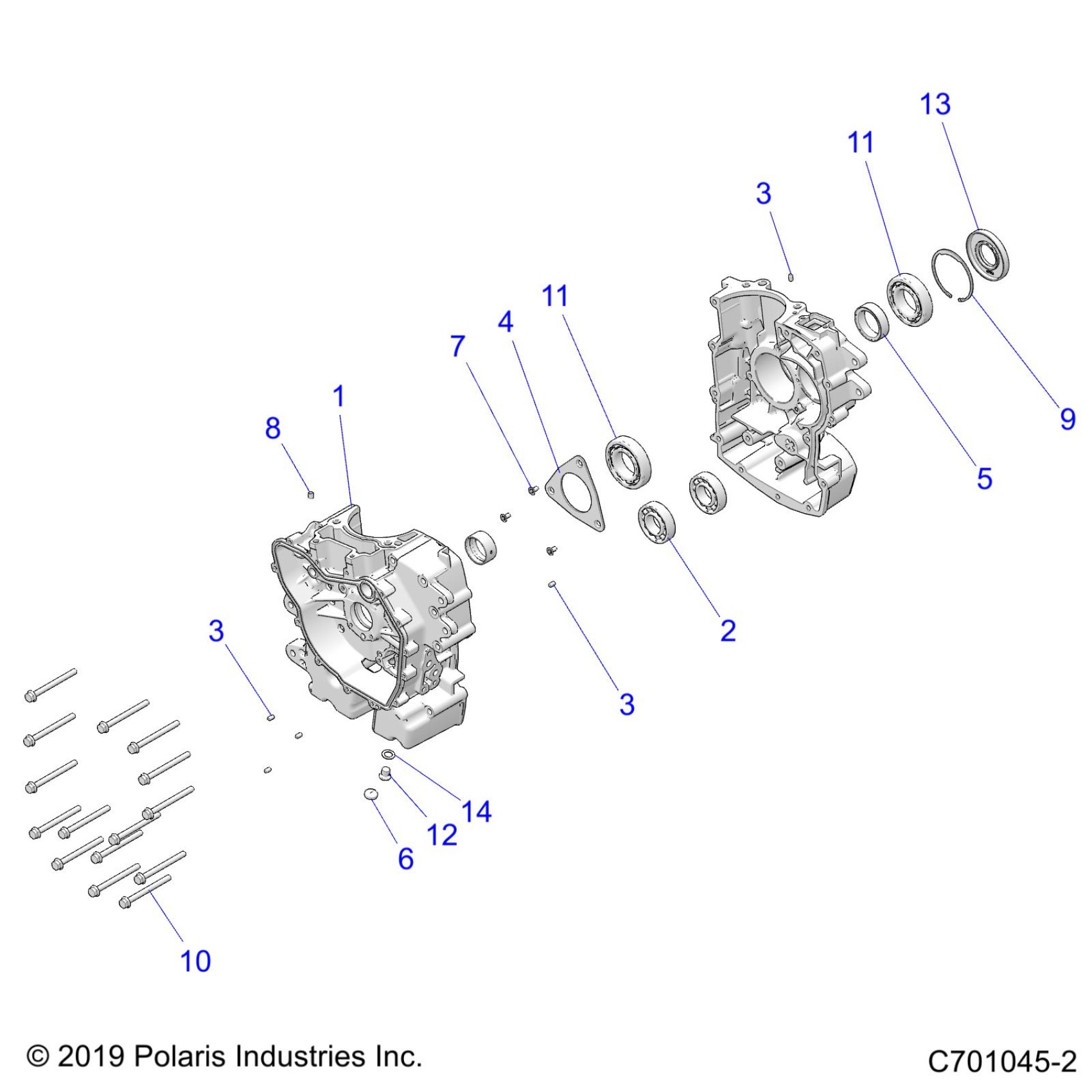

Polaris RZR 570 (R03) - Z20CHA57A2/E57AM ENGINE, CRANKCASE - Z20CHA57A2/E57AM (C701045-2) Diagram

#

Description
Price

1

K-CRANKCASE 570 [INCL. 1-11]

2206362

$1,045.79

2

BEARING-BALL,30X62X16 [FROM 1/15/2023]

3515827

$16.79

2

BEARING, BALL [TO 1/15/2023]

3514426

$19.99

3

PIN-DOWEL,M6X10

5136879

Unavailable

3

PIN-DOWEL,M6X10

5136879

Unavailable

3

PIN-DOWEL,M6X10

5136879

Unavailable

4

PLATE-BEARING RETAINER

5256915

$19.99

5

SPACER-BRG,MACH

5140919

Unavailable

6

PLUG-EXPANSION,19MM

7051530

$7.19

7

SCREW

7517598

$11.33

8

DWL-HOL,M8X8

7661977

$7.19

9

RING-SNAP,80X2.5

7710660

$3.99

10

SCREW

7520104

$5.59

11

BEARING-BALL 40X80X18 DG NCAGE [FROM 1/15/2023]

3515831

$32.79

11

BEARING, BALL [TO 1/15/2023]

3514389

Unavailable

11

BEARING-BALL 40X80X18 DG NCAGE [FROM 1/15/2023]

3515831

$32.79

11

BEARING, BALL [TO 1/15/2023]

3514389

Unavailable

12

PLUG-SOCKET,M12X1.5 DIN 908A

7052306

$15.37

13

SEAL-CRANKSHAFT

3610171

$47.99

14

WASHER, COPPER

5812232

$1.59
