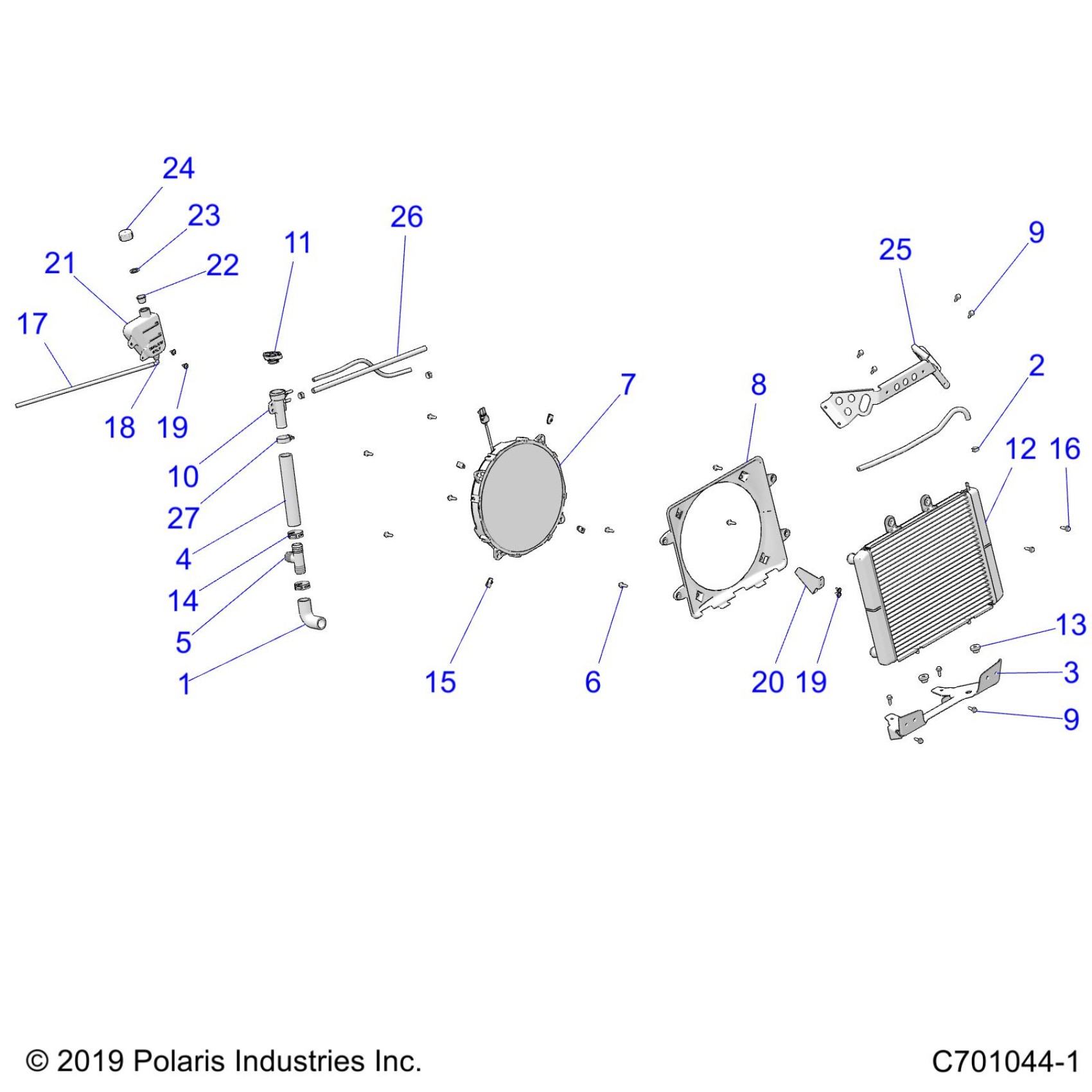

Polaris RZR 570 (R03) - Z20CHA57A2/E57AM ENGINE, COOLING - Z20CHA57A2/E57AM (C701044-1) Diagram

#

Description
Price

1

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.99

2

HOSE, ENGINE INLET, REAR

5414154

$14.39

3

CLAMP-HOSE,.875-SS

7080474

$8.40

4

HOSE, RADIATOR, LOWER

5414202

$27.99

5

HOSE CLAMP, RED

7080003

$1.49

6

ASM-COOLANT TUBE [INCL. 35]

1241229

$59.99

7

HOSE, LOWER, FRONT

5414204

$39.99

8

HOSE, ENGINE OUTLET, REAR

5414155

$59.99

9

BRACKET, MOUNT, RADIATOR, LOWER, MATTE BLACK

5254709-458

$67.99

9

BRACKET, MOUNT, RADIATOR, LOWER, MATTE BLACK

5254709-458

$67.99

10

HOSE, REMOTE FILL NECK

5414203

$31.99

11

T-CONNECTOR

7052373

$10.39

12

SCREW

7516822

$2.39

13

ASM., FAN

2410413

$251.99

14

SHROUD, FAN

5437845

$47.99

15

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

16

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

17

FILLER, REMOTE

5439079

Unavailable

18

CAP-PRESSURE

1240300

$40.46

19

Asm., Radiator, Core

1240444

Unavailable

19

Asm., Radiator, Core

1240444

Unavailable

20

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.59

21

CLAMP, SPRINGBAND, BLACK

7080844

$10.39

22

CLIP-"U",M6.0X1.0

7547366

$5.99

23

SCREW

7519342

$1.86

24

HOSE, RADIATOR, UPPER

5414201

$39.99

25

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

26

Line, Fuel

8450003-1525

$84.99

27

FITTING, 90 DEGREE

7052065

$7.19
