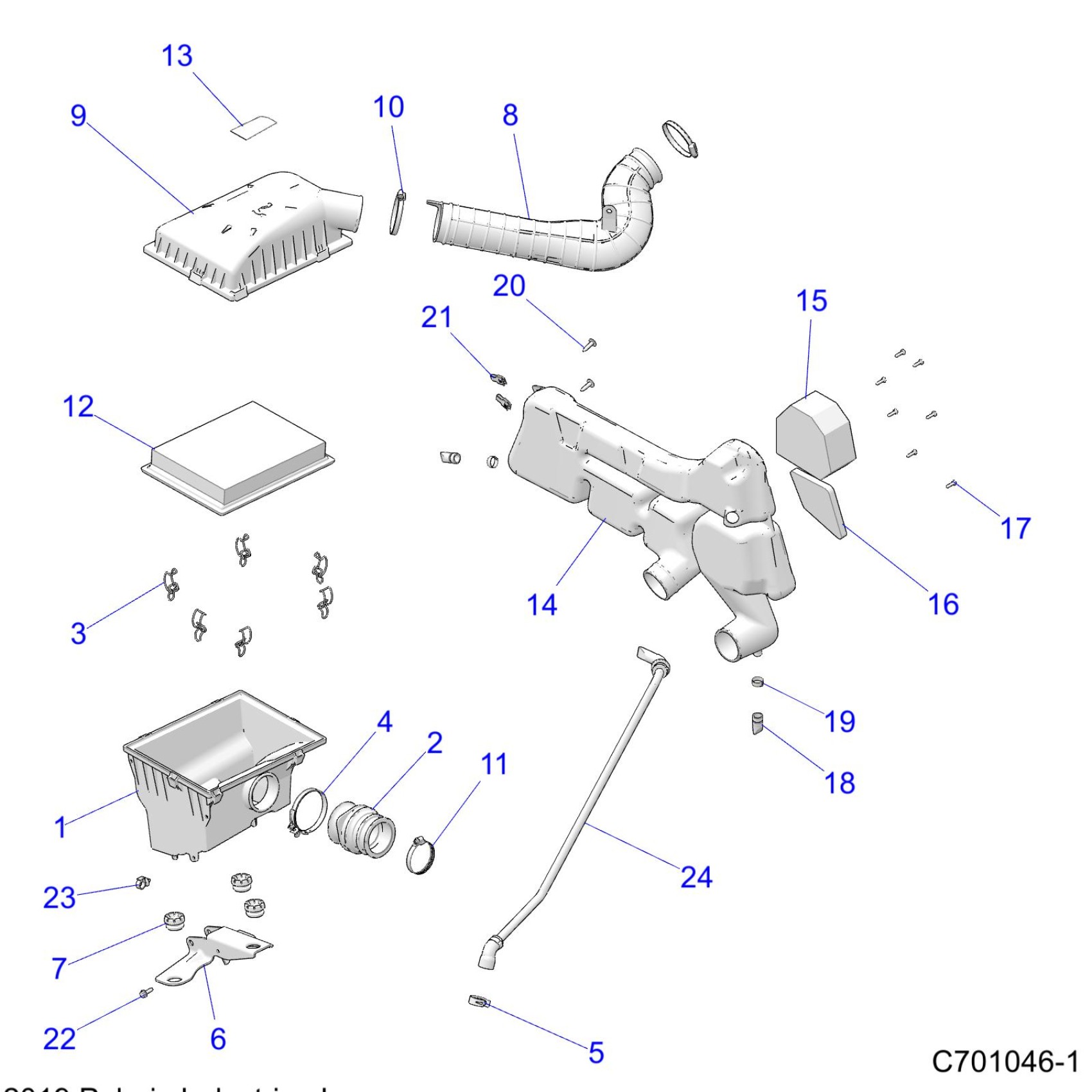

Polaris RZR 570 (R03) - Z20CHA57A2/E57AM ENGINE, AIR INTAKE SYSTEM - Z20CHA57A2/E57AM (C701046-1) Diagram

#

Description
Price

1

ASM-AIRBOX,MAIN [INCL. 1-4]

1241047

$91.99

1

BASE, AIRBOX

5438897

$67.99

2

BOOT-AIRBOX

5415864

$23.99

3

CLIP-AIRBOX

7081707

$4.79

4

Clamp, Airbox

7081312

$11.19

5

SPRINGBAND-CLAMP 27/12,GREEN

7080841

$7.19

6

BRACKET, MOUNT, BLACK

5254922-329

$27.99

7

GROMMET

5412507

$6.39

8

HOSE, INTAKE

5415098

$87.99

9

LID, AIRBOX

5450157

$67.99

10

CLAMP-BAND,NARROW 60-80MM

7080707

$3.19

11

CLAMP, BAND, NARROW

7080413

$3.19

12

FILTER, AIR BOX, MAIN

7081706

$35.99

13

DECAL, FILTER MAINTENANCE

7177872

$6.39

14

BOX, INTAKE

5450598

$155.99

15

FILTER, ENGINE IN

5813713

$31.99

16

FILTER, CLUTCH IN

5813712

$12.79

17

SCREW-#10X3/4-HI/LO-PN-T25,TRX-M

7512026

$1.49

18

Cap, Drain

5412960

$15.19

19

Clamp, Hose, Spring, .75 Inch

7080694

$6.53

20

SCR-1/4-20X1.00 TR/TX-M

7517685

$1.59

21

NUT-1/4-20,U-TYPE(.080-.170)

7670145

Unavailable

22

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

23

CLIP, ROUTING, .472 B.D., HINGED

7670116

$5.59

24

HOSE-BREATHER

5416416

$76.89
