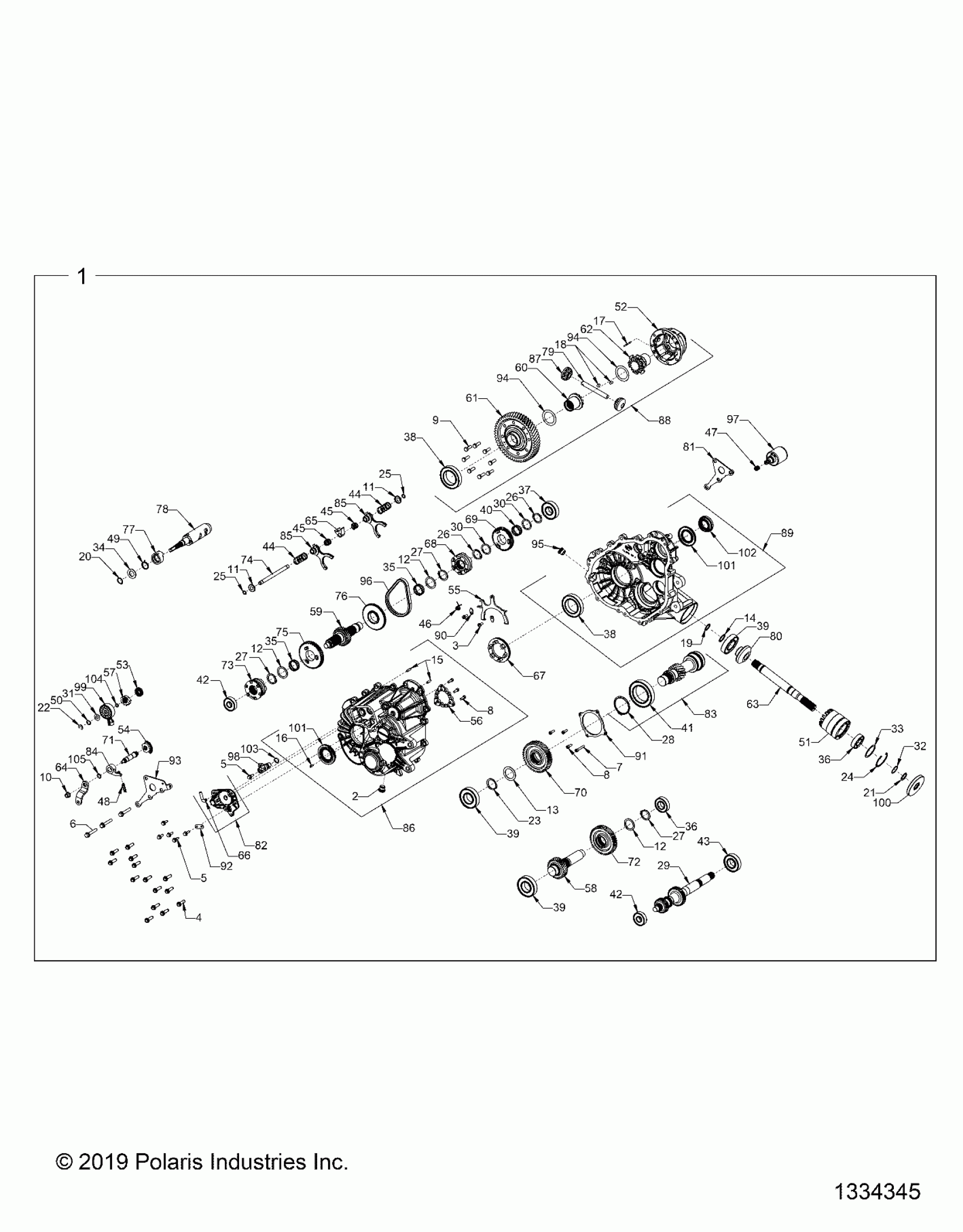

Polaris RZR 570 (R03) - Z20CHA57A2/E57AM DRIVE TRAIN, MAIN GEARCASE - Z20CHE57AM (1334345) Diagram

#

Description
Price

1

ASM-GEARCASE,EBS [INCL. ALL]

1334345

Unavailable

1

ASM-GEARCASE,EBS [INCL. ALL]

1334345

Unavailable

2

PLUG, M18 X 1.5 MAGNETIC

3234756

$31.75

3

SCREW, 6-LOBE, PAN HD M6 X 1 X 16

3234309

$7.14

4

SCREW-HEXFLANGEHEAD,M8X1.25X30

3234898

$9.52

5

SCREW, HEX FLANGE HEAD M6 X 1 X 20

3235206

$7.14

5

SCREW, HEX FLANGE HEAD M6 X 1 X 20

3235206

$7.14

6

SCREW, HEX FLANGE M8 X 50

3235207

$10.32

7

SCREW, SOCKET HEAD, CAP M6 X 1 X 40

3235208

$11.11

8

SCREW, SOCKET HEAD, CAP M6 X 1 X 18

3235332

$3.97

8

SCREW, SOCKET HEAD, CAP M6 X 1 X 18

3235332

$3.97

9

SCREW, CAP HH M8-1.25 X 25

3236169

$9.70

10

NUT, LOCK HEX FLANGE, NYLON M8 X 1.25

3235210

$7.94

11

WASHER-CUP

3234091

$9.52

11

WASHER-CUP

3234091

$9.52

12

WASHER, 32.3 X 42 X 1.5

3235211

$10.32

12

WASHER, 32.3 X 42 X 1.5

3235211

$10.32

12

WASHER, 32.3 X 42 X 1.5

3235211

$10.32

13

WASHER, 35.6 X 50 X 1.5

3235212

$13.49

14

WASHER, 22.5 X 30 X 1.5

3236410

$9.49

15

PIN, DOWEL 6 X 20

3234330

$7.14

16

PIN, SPRING, SLOTTED 6X12

7043746

$8.08

17

PIN, DOWEL 3X40

3236286

$16.14

18

PIN, DOWEL 8X10

3236295

$13.99

19

RING, RETAINING

7710434

$3.97

20

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.76

21

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.56

22

RING, SNAP

3233834

$10.32

23

RING, RETAINING SHAFT, DIA. 1.375

3233364

$6.46

24

RING,RETAINING BASIC,INTERNAL 2.047

3234269

$9.52

25

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.32

25

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.32

26

RING, RETAINING

3234205

$11.11

26

RING, RETAINING

3234205

$11.11

27

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.52

27

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.52

27

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.52

28

RING, RETAINING VSH-237

3235216

$10.32

29

SHAFT, INPUT, 42T/20T/31T

3235838

$199.99

30

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.52

30

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.52

31

WASHER,THRUST,0.446 X 0.88 X 0.025

3234642

$10.32

32

SHIM, 1.180 OD X 0.995 ID

3234272

$36.41

33

SHIM, 2.040 OD X 1.63 ID

3234248

$9.52

34

SPACER, 19.4 X 34 X 2

3235883

$28.56

35

BEARING, NEEDLE

3233014

$43.65

35

BEARING, NEEDLE

3233014

$43.65

36

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

36

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

37

BEARING

3233020

$47.62

38

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.59

38

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.59

39

BEARING,BALL 6207 C3 35X72X17

3234065

$47.62

39

BEARING,BALL 6207 C3 35X72X17

3234065

$47.62

39

BEARING,BALL 6207 C3 35X72X17

3234065

$47.62

40

BEARING, NEEDLE, CAGE ASSY

3233384

$31.75

41

BEARING, BALL 3012 C3 60X95X18

3235218

$59.52

42

BEARING, BALL 6303 17X47X14

3234652

$15.87

42

BEARING, BALL 6303 17X47X14

3234652

$15.87

43

BEARING, BALL 6206RSH2 STD 30X62X16

3235496

$37.99

44

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$24.27

44

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$24.27

45

SPRING, COMPRESSION, .46 I.D. X 0.73

3234089

$28.32

45

SPRING, COMPRESSION, .46 I.D. X 0.73

3234089

$28.32

46

SPRING, TORSION, RETURN

3234276

$8.89

47

SPRING, COMPRESSION 0.54 X 0.44 X 0.05 WIRE

3234277

$13.75

48

SPRING, COMPRESSION, DETENT

3234578

$13.75

49

SPRING, TORSION

3235885

$20.22

50

SPRING, WASHER

3235327

$9.52

51

TUBE, SNORKEL MACH

3234278

$101.17

52

CARRIER, DIFFERENTIAL MACH

3236287

$209.99

53

GEAR, SECTOR 16T

3233839

$36.41

54

GEAR-SECTOR,31T

3233832

$36.41

55

FORK, PIVOT SHIFT, REAR DIFF

3235455

$93.08

56

PLATE, PARK 12-FACE

3235456

$40.46

57

STAR, DETENT

3235982

$36.41

58

SHAFT, IDLER 29T

3235223

$128.24

59

SHAFT-REVERSE,27T(285878)

3235380

$246.89

60

GEAR, 14T OUTPUT MACH

3236290

$194.74

61

GEAR, 53T OUTPUT

3236291

$308.74

62

GEAR, 14T OUTPUT DISCONNECT MACH

3236289

$199.49

63

SHAFT, FRONT OUTPUT

3236439

$133.56

64

BELLCRANK, TXC

3235386

$32.37

65

COLLAR-SHIFT

3234073

$31.75

66

TUBE, VENT 90 -1/4" HOSE

3234230

$10.51

67

DOG, ENGAGEMENT

3236293

$169.99

68

ENGAGEMENT DOG, 6-FACE

3235233

$129.51

69

GEAR, 53T

3235234

$99.74

70

GEAR, 46T STAGE 3

3235236

$128.24

71

SHAFT, SHIFT

3235239

$40.46

72

GEAR, 46T STAGE 2

3235381

$156.74

73

SHIFT DOG, PARK

3235457

$145.70

74

RAIL, SHIFT SHAFT

3235542

$28.32

75

GEAR, LOW 61T

3235561

$99.74

76

SPROCKET 48T, 6-FACE

3235755

$80.94

77

CAM, PARK

3235983

$183.95

78

DRUM, SHIFT MACH

3235984

$279.27

79

PIN, DIFFERENTIAL

3236292

$129.99

80

GEAR, 13T SNORKEL

3236412

$170.99

81

WELDMENT, REAR MOUNT BRACKET

3235239

$40.46

82

SUBASSEMBLY, SECTOR COVER

3235713

$135.54

83

SUBASM.,SHAFT

3235336

$446.49

84

SUBASSEMBLY, PAWL, DETENT, ROLLER

3235452

$36.41

85

SUBASSEMBLY, SHIFT FORK

3235920

$72.84

85

SUBASSEMBLY, SHIFT FORK

3235920

$72.84

86

SUBASSEMBLY, RH COVER

3235995

$517.74

87

SUBASSEMBLY, PINION GEAR

3236288

$161.49

88

SUBASSEMBLY, DIFFERENTIAL

3236285

$455.99

89

SUBASSEMBLY, LH CASE

3236437

$529.99

90

RETAINER-FORK

3234934

$12.34

91

COVER-BEARING,CNTR DR.

3235241

$48.56

92

BRACKET, WIRE HARNESS

3235350

$8.89

93

BRACKET, REAR MOUNT

3235351

$48.56

94

WASHER, THRUST 40.83 X 56.25 X 0.38

3236294

$11.32

94

WASHER, THRUST 40.83 X 56.25 X 0.38

3236294

$11.32

95

PLUG, M18 X 1.5

3234755

$27.78

96

CHAIN,SIL 101,.25P X .40W X58L

3234737

$169.98

97

SOLENOID

3235478

$295.46

98

SENSOR-SPEED,TRANS

4013908

$109.27

99

SWITCH, ROTARY , 2 PIN RESISTIVE

7662299

$113.32

100

SEAL, TRIPLE LIP, 25 X 80 X 10

3234113

$36.41

101

SEAL, TRIPLE LIP, VITON 40X70X7

3235052

$32.37

101

SEAL, TRIPLE LIP, VITON 40X70X7

3235052

$32.37

102

SEAL, TRIPLE LIP, VITON HELIX 30X47

3235495

$47.49

103

O-RING

3234302

$7.27

104

O-RING, -012 VITON

3233836

$6.87

105

O-RING, -014 VITON

3233828

$6.87
