- RZR 570 (R03) - Z20CHA57A2/E57AM
DRIVE TRAIN, MAIN GEARCASE - Z20CHA57A2 (1334344)

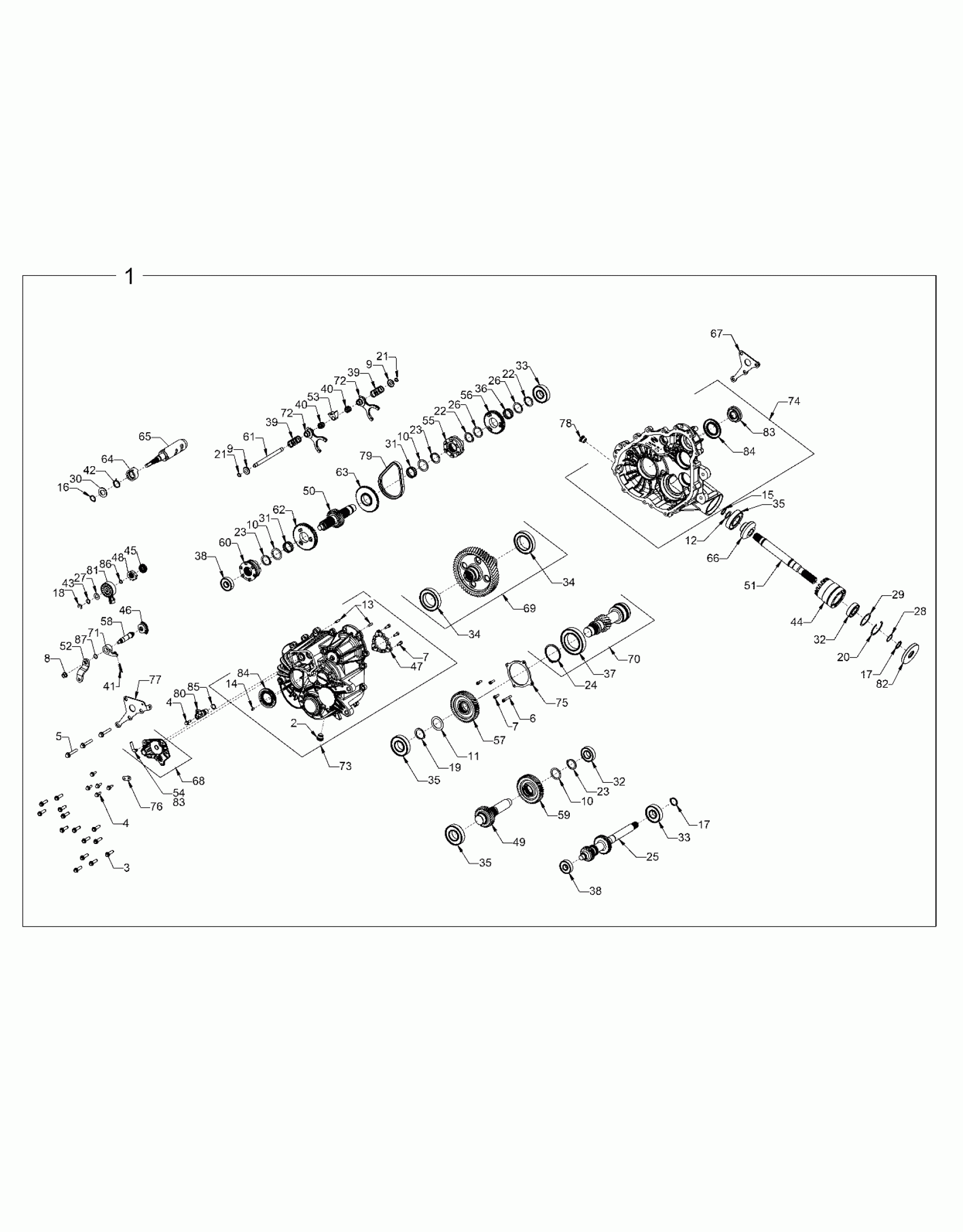

Polaris RZR 570 (R03) - Z20CHA57A2/E57AM DRIVE TRAIN, MAIN GEARCASE - Z20CHA57A2 (1334344) Diagram
#
1
ASM-GEARCASE [INCL. ALL]
1334344
$3,172.39
2
PLUG, M18 X 1.5 MAGNETIC
3234756
$31.99
3
SCREW-HEXFLANGEHEAD,M8X1.25X30
3234898
$9.59
4
SCREW, HEX FLANGE HEAD, M6 X 1 X 20
3235206
$7.19
4
SCREW, HEX FLANGE HEAD, M6 X 1 X 20
3235206
$7.19
5
SCREW, HEX FLANGE M8 X 50
3235207
$10.39
6
SCREW, SOCKET HEAD, CAP, M6 X 1 X 40
3235208
$11.19
7
SCREW, SOCKET HEAD, CAP, M6 X 1 X 18
3235332
$3.99
7
SCREW, SOCKET HEAD, CAP, M6 X 1 X 18
3235332
$3.99
8
NUT, LOCK HEX FLANGE, NYLON M8 X 1.25
3235210
$7.99
9
WASHER-CUP
3234091
$9.59
9
WASHER-CUP
3234091
$9.59
10
WASHER, 32.3 X 42 X 1.5
3235211
$10.39
10
WASHER, 32.3 X 42 X 1.5
3235211
$10.39
10
WASHER, 32.3 X 42 X 1.5
3235211
$10.39
11
WASHER, 35.6 X 50 X 1.5
3235212
$13.59
12
WASHER, 22.5 X 30 X 1.5
3236410
$8.79
13
PIN, DOWEL 6 X 20
3234330
$7.19
14
PIN, SPRING, SLOTTED 6X12
7043746
$7.19
15
RING, RETAINING
7710434
$3.99
16
RING,RETAINING BASIC,EXTERNAL 0.75
3233045
$4.79
17
RING,RETAINING BASIC,EXTERNAL 0.984
3233106
$5.59
17
RING,RETAINING BASIC,EXTERNAL 0.984
3233106
$5.59
18
RING, SNAP
3233834
$10.39
19
RING, RETAINING, SHAFT, DIA. 1.375
3233364
$6.39
20
RING,RETAINING BASIC,INTERNAL 2.047
3234269
$9.59
21
RING,RETAINING BASIC,EXTERNAL 0.428
3234090
$10.39
21
RING,RETAINING BASIC,EXTERNAL 0.428
3234090
$10.39
22
RING, RETAINING
3234205
$11.19
22
RING, RETAINING
3234205
$11.19
23
RING-RETAIN,EXT,MSR-32(130296)
3235214
$9.59
23
RING-RETAIN,EXT,MSR-32(130296)
3235214
$9.59
23
RING-RETAIN,EXT,MSR-32(130296)
3235214
$9.59
24
RING, RETAINING VSH-237
3235216
$10.39
25
SHAFT, BOSS LW, UTILITY, INPUT, AVALANCHE
3235710
$195.99
26
WASHER,THRUST,1.187 X 1.500 X .0600
3233378
$9.59
26
WASHER,THRUST,1.187 X 1.500 X .0600
3233378
$9.59
27
WASHER,THRUST,0.446 X 0.88 X 0.025
3234642
$10.39
28
SHIM, 1.180 OD X 0.995 ID
3234272
$31.99
29
SHIM, 2.040 OD X 1.63 ID
3234273
$12.79
30
SPACER, 19.4 X 34.0 X 2
3235883
$23.99
31
BEARING, NEEDLE
3233014
$43.99
31
BEARING, NEEDLE
3233014
$43.99
32
BEARING, BALL, 6205 C3 25X52X15
3233019
$31.99
32
BEARING, BALL, 6205 C3 25X52X15
3233019
$31.99
33
BEARING
3233020
$47.99
33
BEARING
3233020
$47.99
34
BEARING-BALL 6010 C3 50 X 80 X 10
3233268
$51.99
34
BEARING-BALL 6010 C3 50 X 80 X 10
3233268
$51.99
35
BEARING,BALL 6207 C3 35X72X17
3234065
$47.99
35
BEARING,BALL 6207 C3 35X72X17
3234065
$47.99
35
BEARING,BALL 6207 C3 35X72X17
3234065
$47.99
36
BEARING, NEEDLE, CAGE ASSY
3233384
$31.99
37
BEARING, BALL, 6012 C3 60X95X18
3235218
$59.99
38
BEARING, BALL 6303 17X47X14
3234652
$15.99
38
BEARING, BALL 6303 17X47X14
3234652
$15.99
39
SPRING,COMPRESSION, .92 O.D. X 2.000
3234078
$19.99
39
SPRING,COMPRESSION, .92 O.D. X 2.000
3234078
$19.99
40
SPRING, COMPRESSION .46 I.D. X 0.73
3234089
$23.99
40
SPRING, COMPRESSION .46 I.D. X 0.73
3234089
$23.99
41
SPRING, COMPRESSION, DETENT
3234578
$12.79
42
SPRING, TORSION
3235885
$19.99
43
SPRING, WASHER
3235327
$9.59
44
TUBE, SNORKEL MACH
3234278
$95.99
45
GEAR, SECTOR 16T
3233839
$31.99
46
GEAR-SECTOR,31T
3233832
$31.99
47
PLATE, PARK 12-FACE
3235456
$35.99
48
STAR, DETENT
3235982
$31.99
49
SHAFT, IDLER 29T
3235223
$107.99
50
SHAFT-REVERSE,27T(285878)
3235380
$243.99
51
SHAFT, FRONT OUTPUT
3236439
$131.99
52
BELLCRANK, TXC
3235386
$27.99
53
COLLAR-SHIFT
3234073
$31.99
54
TUBE, VENT 90 -1/4" HOSE
3234230
$9.59
55
ENGAGEMENT DOG, 6-FACE
3235233
$119.99
56
GEAR, 53T
3235234
$79.99
57
GEAR, 46T STAGE 3
3235236
$103.99
58
SHAFT-SHIFT(352973)
3235238
$37.61
59
GEAR, 46T STAGE 2
3235381
$123.99
60
SHIFT DOG, PARK
3235457
$135.99
61
RAIL, SHIFT SHAFT
3235542
$27.99
62
GEAR, LOW 61T
3235561
$79.99
63
SPROCKET 48T, 6-FACE
3235755
$79.99
64
PARK CAM
3235983
$151.99
65
DRUM, SHIFT MACH
3235984
$263.99
66
GEAR, 13T SNORKEL
3236412
$135.99
67
WELDMENT, REAR MOUNT BRACKET
3235239
$39.99
68
SUBASSEMBLY, SECTOR COVER [INCLUDES ALL HARDWARE]
3235713
$107.99
69
SUBASSEMBLY, OUTPUT [INCLUDES BEARINGS]
3235335
$342.75
70
SUBASM.,SHAFT [INCLUDES ALL HARDWARE]
3235336
$355.99
71
SUBASSEMBLY, PAWL, DETENT, ROLLER [INCLUDES ALL HARDWARE]
3235452
$31.99
72
SUBASSEMBLY, SHIFT FORK
3235920
$71.99
72
SUBASSEMBLY, SHIFT FORK
3235920
$71.99
73
SUBASSEMBLY, RH COVER
3235995
$405.59
74
SUBASSEMBLY, LH CASE [INCLUDES ALL HARDWARE]
3236543
$475.19
75
COVER-BEARING,CNTR DR.
3235241
$43.99
76
BRACKET, WIRE HARNESS
3235350
$8.79
77
BRACKET, REAR MOUNT
3235351
$47.99
78
PLUG, M18 X 1.5
3234755
$27.99
79
CHAIN,SIL 101,.25P X .40W X58L
3234737
$159.99
80
SENSOR-SPEED,TRANS
4013908
Unavailable
81
SWITCH, ROTARY, 2 PIN RESISTIVE
7662299
$111.99
82
SEAL, TRIPLE LIP 25X80X10
3234113
$35.99
83
SEAL, DUAL LIP 25X47 VITON
3234851
$35.99
83
SEAL, DUAL LIP 25X47 VITON
3234851
$35.99
84
SEAL, TRIPLE LIP 40X70X7 VITON
3235052
$31.99
84
SEAL, TRIPLE LIP 40X70X7 VITON
3235052
$31.99
85
O-RING
3234302
$7.19
86
O-RING, -012 VITON
3233836
$6.87
87
O-RING, -014 VITON
3233828
$6.79
