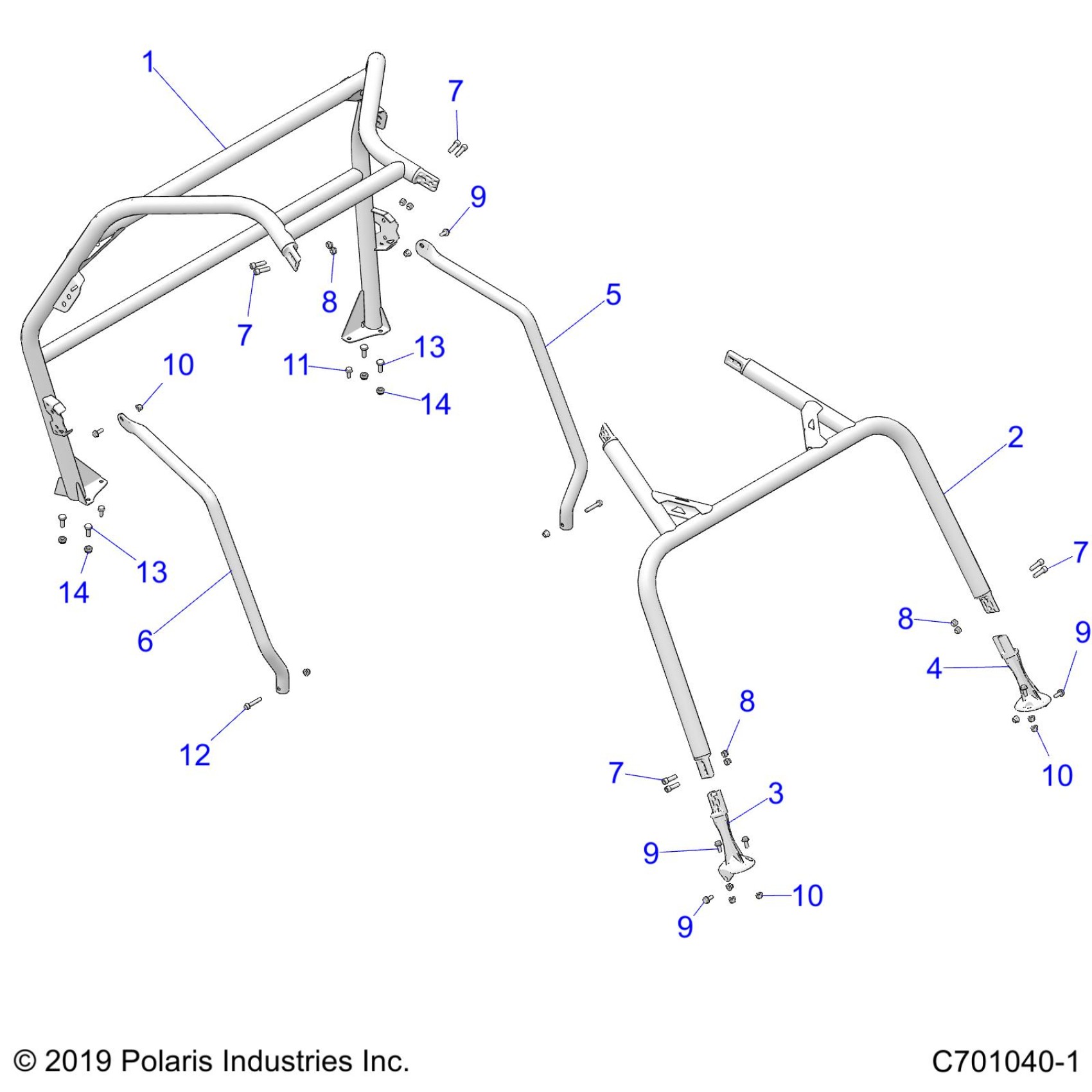

Polaris RZR 570 (R03) - Z20CHA57A2/E57AM CHASSIS, CAB FRAME - Z20CHA57A2/E57AM (C701040-1) Diagram

#

Description
Price

1

FRAME, CAB, BACK, MATTE BLACK

1019563-458

$866.79

2

FRAME, CAB, FRONT, MATTE BLACK

1019958-458

$277.19

3

Base, Cab Frame, Front, Base, RH, Matte Black

5632414-458

$127.59

4

Base, Cab Frame, Front, Base, LH, Matte Black

5632415-458

$127.59

5

TUBE-SIDE BAR,LH,BLK

5339659-458

$147.99

6

TUBE-SIDE BAR,RH,BLK

5339660-458

$147.99

7

SCREW

7517935

$2.39

7

SCREW

7517935

$2.39

7

SCREW

7517935

$2.39

7

SCREW

7517935

$2.39

8

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

8

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

8

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

9

BOLT, FLANGE

7518702

$3.99

9

BOLT, FLANGE

7518702

$3.99

9

BOLT, FLANGE

7518702

$3.99

9

BOLT, FLANGE

7518702

$3.99

10

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

10

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

10

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

11

BOLT

7518555

$2.39

12

SCREW

7516732

$1.59

13

SCR-M10X1.5X25,HEX,DIN933,8.8

7519308

$4.79

13

SCR-M10X1.5X25,HEX,DIN933,8.8

7519308

$4.79

14

NUT-NY INS,M10X1.5,HEX,ZINC,YW

7547385

$1.49

14

NUT-NY INS,M10X1.5,HEX,ZINC,YW

7547385

$1.49
