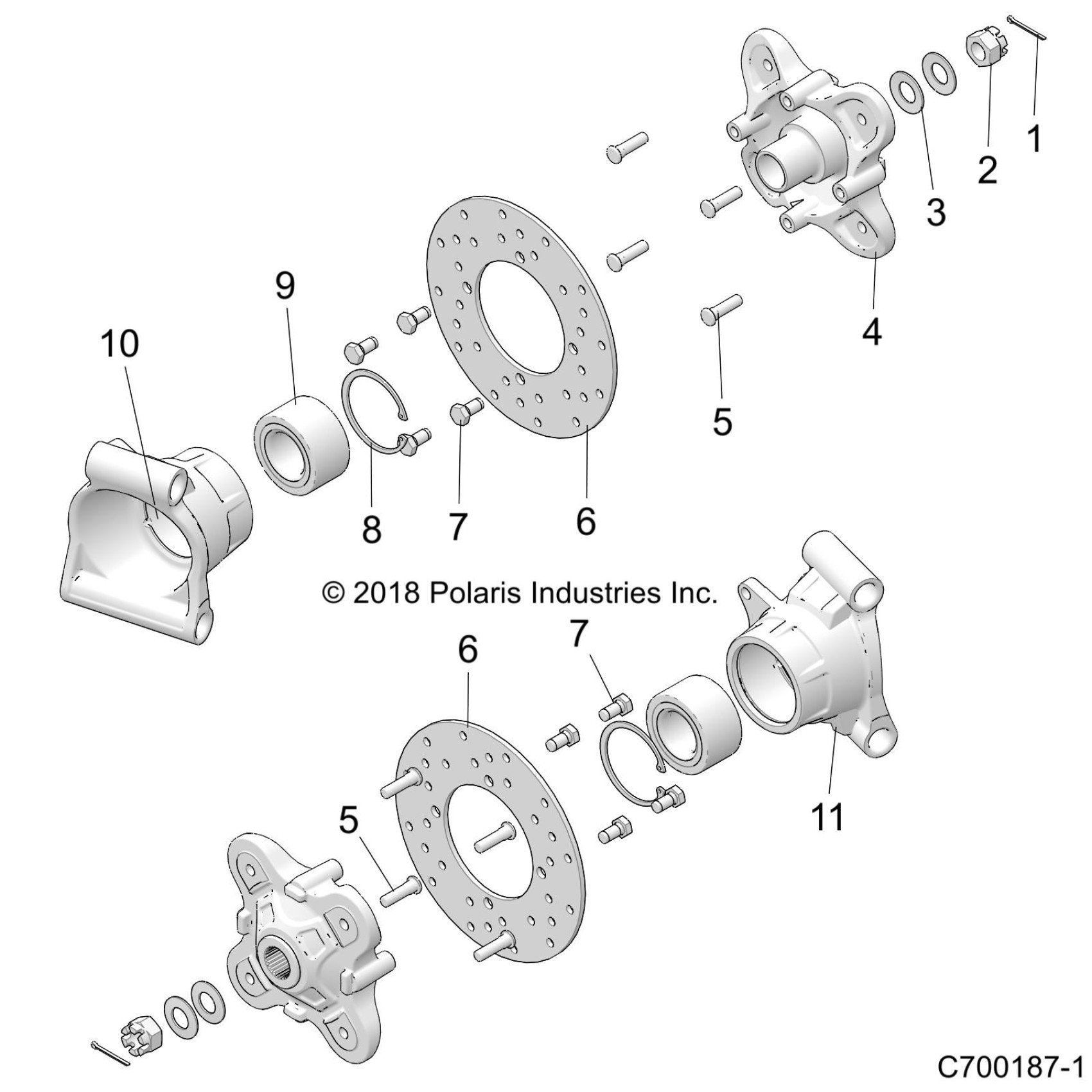

Polaris RZR 570 (R02) - Z19VHA57B2/E57BM SUSPENSION, REAR CARRIER - Z19VHA57B2/E57BM (C700187-1) Diagram

#

Description
Price

1

PIN, COTTER

7661404

$4.79

2

NUT, CASTLE

7547337

$1.99

3

WASHER, CONE

7555796

$7.99

4

HUB, WHEEL, REAR

5139163

Unavailable

5

STUD

7518378

$1.59

5

STUD

7518378

$1.59

6

DISC, BRAKE, REAR

5248250

$75.99

6

DISC, BRAKE, REAR

5248250

$75.99

7

SCREW

7519343

$4.79

7

SCREW

7519343

$4.79

8

RING, RETAINING

7710440

$10.39

9

BEARING, BALL

3514635

$39.99

9

BEARING-WHEEL,HD,40X74X40MM [OPTIONAL]

3515087

$63.99

10

CARRIER, BEARING, WHEEL, LH

5138501

$251.73

11

CARRIER, BEARING, WHEEL, RH

5138502

$251.73
