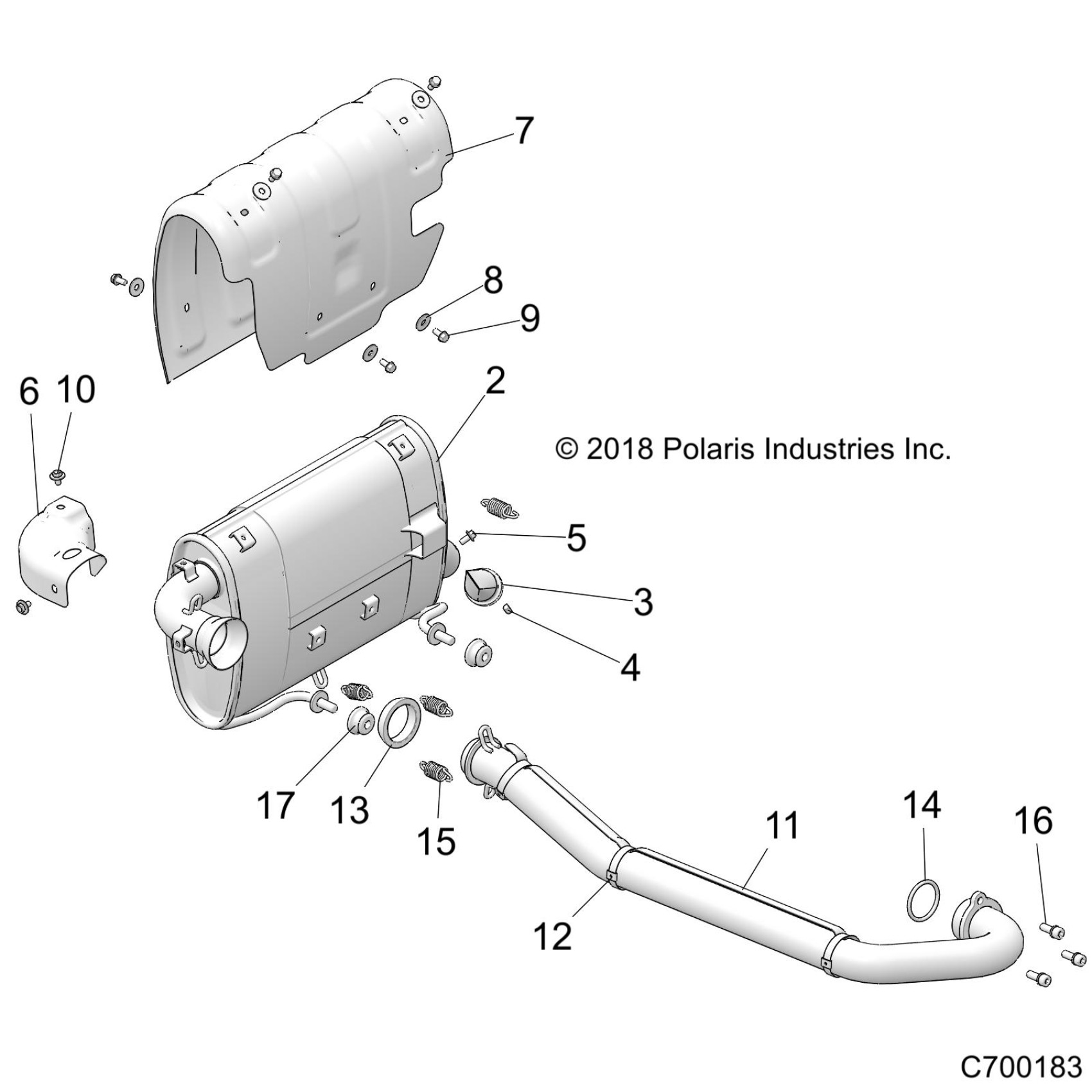

Polaris RZR 570 (R02) - Z19VHA57B2/E57BM ENGINE, EXHAUST SYSTEM - Z19VHA57B2/E57BM (C700183) Diagram

Description

Price

WELD-SILENCER

1263094

$589.59

WELD-SPARK ARRESTOR,QT

1262239

$43.99

NUT-HEX-M6X1.0 8 SPC

7547120

$4.79

SCREW

7517257

$9.59

SHIELD-HEAT,INLET

5264461

$35.99

SHIELD-SILENCER

5258938

$63.99

WASHER-.28 X .81 X .06, ST-M

7555935

$2.39

SCR-1/4-20X1/2,TFM HW-M

7518490

$1.49

SCR-HHSEMS-M6X1.0X10 A286,LOCK

7520291

$7.19

ASM., HEADPIPE, REAR [INCL. 12]

1262355

$239.99

CLAMP-HEAT SHIELD,EXHAUST

7081156

$7.19

SEAL, EXHAUST, SOCKET

3610181

$31.99

GASKET-EXHAUST SEALING

5253989

$27.99

SPRING-EXHAUST S.S. SHOTPEENED

7043727

$4.84

SCREW

7518984

$7.99

ISOLATOR-EXHAUST,HANGER

5415785

$2.79
