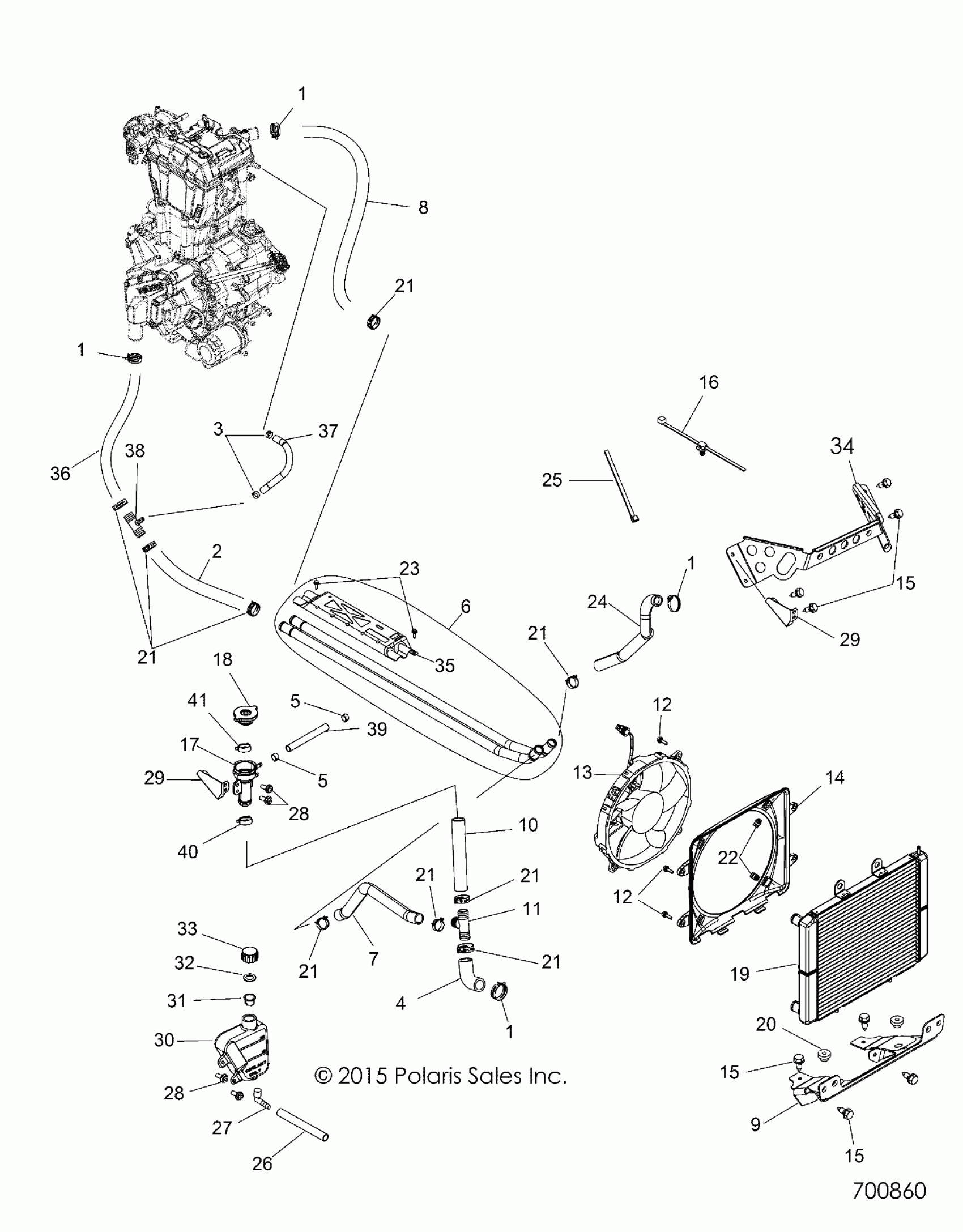

Polaris RZR 570 (R02) - Z19VHA57B2/E57BM ENGINE, COOLING SYSTEM - Z19VHA57B2/E57BM (700860) Diagram

#

Description
Price

1

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.99

1

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.99

1

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.99

1

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.99

2

HOSE, ENGINE INLET, REAR

5414154

$14.39

3

CLAMP-HOSE,.875-SS

7080474

$8.40

4

HOSE, RADIATOR, LOWER

5414202

$27.99

5

HOSE CLAMP, RED

7080003

$1.49

5

HOSE CLAMP, RED

7080003

$1.49

6

ASM-COOLANT TUBE [INCL. 35]

-------

Unavailable

7

HOSE, LOWER, FRONT

5414204

$39.99

8

HOSE, ENGINE OUTLET, REAR

5414155

$59.99

9

BRACKET, MOUNT, RADIATOR, LOWER, MATTE BLACK

5254709-458

$67.99

10

HOSE, REMOTE FILL NECK

5414203

$31.99

11

T-CONNECTOR

7052373

$10.39

12

SCREW

7516822

$2.39

12

SCREW

7516822

$2.39

13

ASM., FAN

2410413

$251.99

14

SHROUD, FAN

5437845

$47.99

15

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

15

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

15

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

16

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

17

FILLER, REMOTE

5439079

$27.99

18

CAP-PRESSURE

1240300

$40.46

19

Asm., Radiator, Core

1240444

Unavailable

20

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.59

21

CLAMP, SPRINGBAND, BLACK

7080844

$10.39

21

CLAMP, SPRINGBAND, BLACK

7080844

$10.39

21

CLAMP, SPRINGBAND, BLACK

7080844

$10.39

21

CLAMP, SPRINGBAND, BLACK

7080844

$10.39

21

CLAMP, SPRINGBAND, BLACK

7080844

$10.39

21

CLAMP, SPRINGBAND, BLACK

7080844

$10.39

21

CLAMP, SPRINGBAND, BLACK

7080844

$10.39

22

CLIP-"U",M6.0X1.0

7547366

$5.99

23

SCREW

7519342

$1.86

24

HOSE, RADIATOR, UPPER

5414201

$39.99

25

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

26

Line, Fuel

8450003-1525

Unavailable

27

FITTING, 90 DEGREE

7052065

$7.19

28

Screw

7512084

$1.49

28

Screw

7512084

$1.49

29

Bracket, Filler Neck

5253450

$27.99

29

Bracket, Filler Neck

5253450

$27.99

30

ASM-SURGE TANK,38CM

2520837

$39.99

31

PLUG-CAP 9X(GREEN) FLEX TEMP

5433774

$5.65

32

GASKET-OVERFLOW CAP

5810279

$2.41

33

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

34

Bracket, Mount, Radiator, Upper, Matte Black

5254710-458

$39.99

35

Bracket, Fuel Tank Mount, Center, Black

5254161-329

$39.99

36

HOSE-BYPASS,1IN FORMED

5414162

$35.99

37

HOSE, BYPASS, FORMED

5414163

$31.99

38

CONNECTOR, TEE

7052530

$5.59

39

FUEL LINE-40 CM

8450120-40

Unavailable

40

CLAMP, SPRINGBAND, BLACK

7080844

$10.39

41

CLAMP-HOSE,13/16"-1 1/2"

7081174

$7.19
