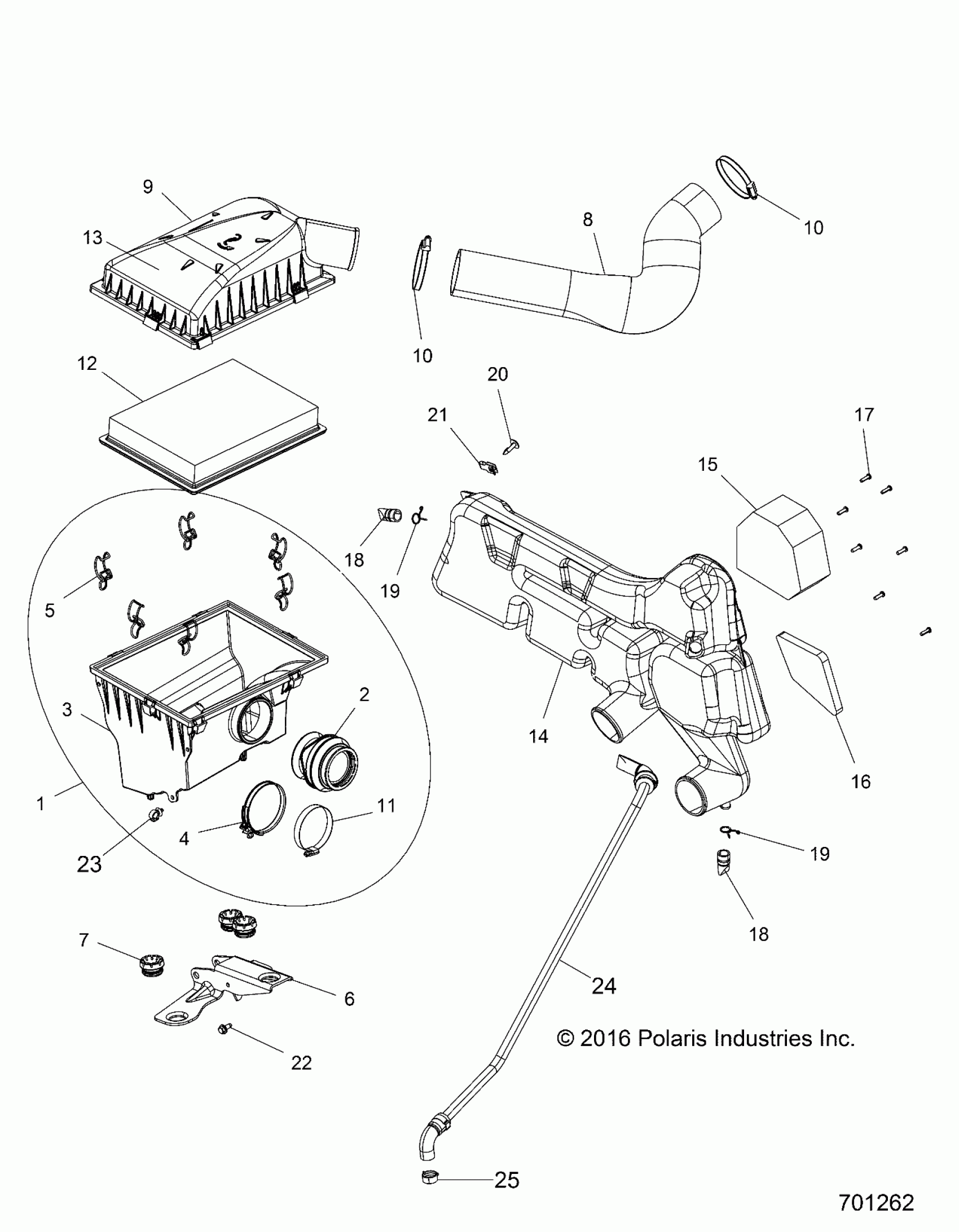

Polaris RZR 570 (R02) - Z19VHA57B2/E57BM ENGINE, AIR INTAKE SYSTEM - Z19VHA57B2/E57BM (701262) Diagram

Description

Price

ASM-AIRBOX,MAIN [INCL. 1-5]

1241047

$116.17

BOOT-AIRBOX

5415864

$24.27

BASE, AIRBOX

5438897

$72.84

Clamp, Airbox

7081312

$11.11

CLIP-AIRBOX

7081707

$4.76

BRACKET, MOUNT, BLACK

5254922-329

$34.99

GROMMET

5412507

$6.35

HOSE, INTAKE

5415098

$102.21

LID, AIRBOX

5450157

$72.84

CLAMP-BAND,NARROW 60-80MM

7080707

$3.17

CLAMP-BAND,NARROW 60-80MM

7080707

$3.17

CLAMP-BAND,NARROW

7080413

$3.17

FILTER, AIRBOX, MAIN

7081706

$35.71

DECAL, FILTER MAINTENANCE

7177872

$7.27

BOX, INTAKE

5450598

Unavailable

FILTER, ENGINE IN

5813713

$36.41

FILTER, CLUTCH IN

5813712

$13.75

SCREW

7512026

$1.19

Cap, Drain

5412960

$15.37

Cap, Drain

5412960

$15.37

Clamp, Hose

7080694

$6.64

Clamp, Hose

7080694

$6.64

SCREW

7517685

$1.59

NUT, U

7670145

$2.38

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

CLIP-ROUTING,.472 B.D.,HINGED

7670116

$5.56

HOSE-BREATHER

5416416

$80.94

SPRINGBAND-CLAMP 27/12,GREEN

7080841

$7.14
