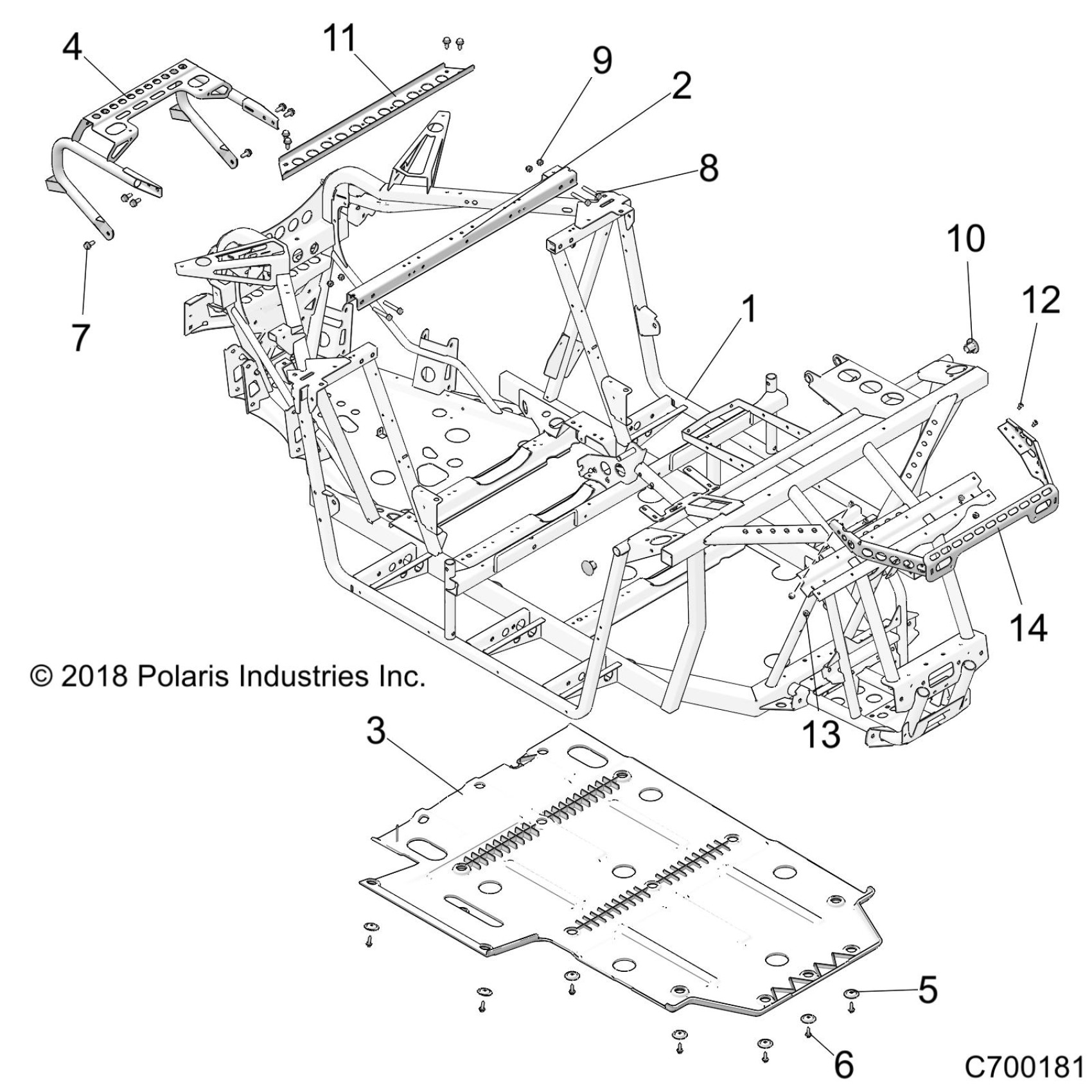

Polaris RZR 570 (R02) - Z19VHA57B2/E57BM CHASSIS, MAIN FRAME and SKID PLATE - Z19VHA57B2/E57BM (C700181) Diagram

#

Description
Price

1

WELD-MAIN FRAME,M.BLK

1023462-458

$2,763.19

2

BRACE, CROSS BRACE, BLACK

5257552-329

$62.69

3

PLATE, SKID, BLACK

5438937-070

$195.99

4

WELD-BUMPER,REAR,ECOAT

1023404-329

$259.99

5

WASHER-SKID PLATE

7556065

Unavailable

6

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

Unavailable

7

BOLT

7518555

$2.39

8

BOLT

7515319

$4.79

9

NUT-5/16-18 NYLOK-Y

7542324

$1.49

10

CAPLUG

5437721

$6.39

11

BRACKET, REAR, BRACE, BLACK

5254980-329

$131.99

12

BOLT

7518656

$3.99

13

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

14

Support, Bumper, Front, Black

1017800-329

$67.99
