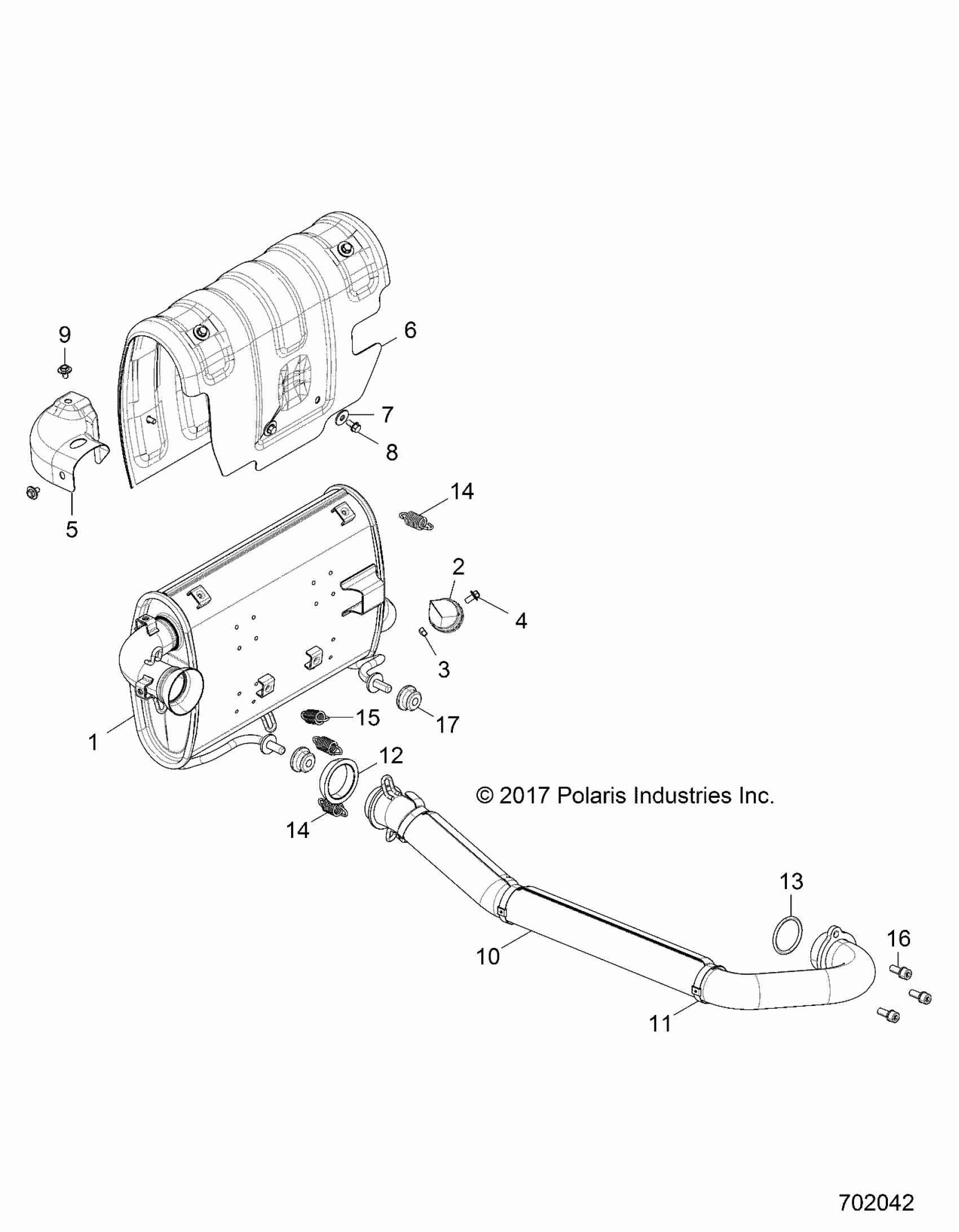

Polaris RZR 570 EPS (R05) - Z18VHE57BV ENGINE, EXHAUST SYSTEM - Z18VHE57BV (702042) Diagram

#

Description
Price

1

ASM-SILENCER [INCL. 2-5]

1263093

$589.59

2

WELD-SPARK ARRESTOR,QT

1262239

$43.99

3

NUT-HEX-M6X1.0 8 SPC

7547120

$4.79

4

SCREW

7517257

$9.59

5

SHIELD-HEAT,INLET

5264461

$35.99

6

SHIELD-SILENCER

5258938

$63.99

7

WASHER-.28 X .81 X .06, ST-M

7555935

$2.39

8

SCR-1/4-20X1/2,TFM HW-M

7518490

$1.49

9

SCR-HHSEMS-M6X1.0X10 A286,LOCK

7520291

$7.19

10

ASM., HEADPIPE, REAR [INCL. 11]

1262355

$239.99

11

CLAMP-HEAT SHIELD,EXHAUST

7081156

$7.19

12

SEAL, EXHAUST, SOCKET

3610181

$31.99

13

GASKET-EXHAUST SEALING

5253989

$27.99

14

SPRING-EXHAUST

7041789

$7.99

14

SPRING-EXHAUST

7041789

$7.99

15

SPRING-EXHAUST

7041804

$7.99

16

SCREW

7518984

$7.99

17

ISOLATOR-EXHAUST,HANGER

5415785

$2.79
