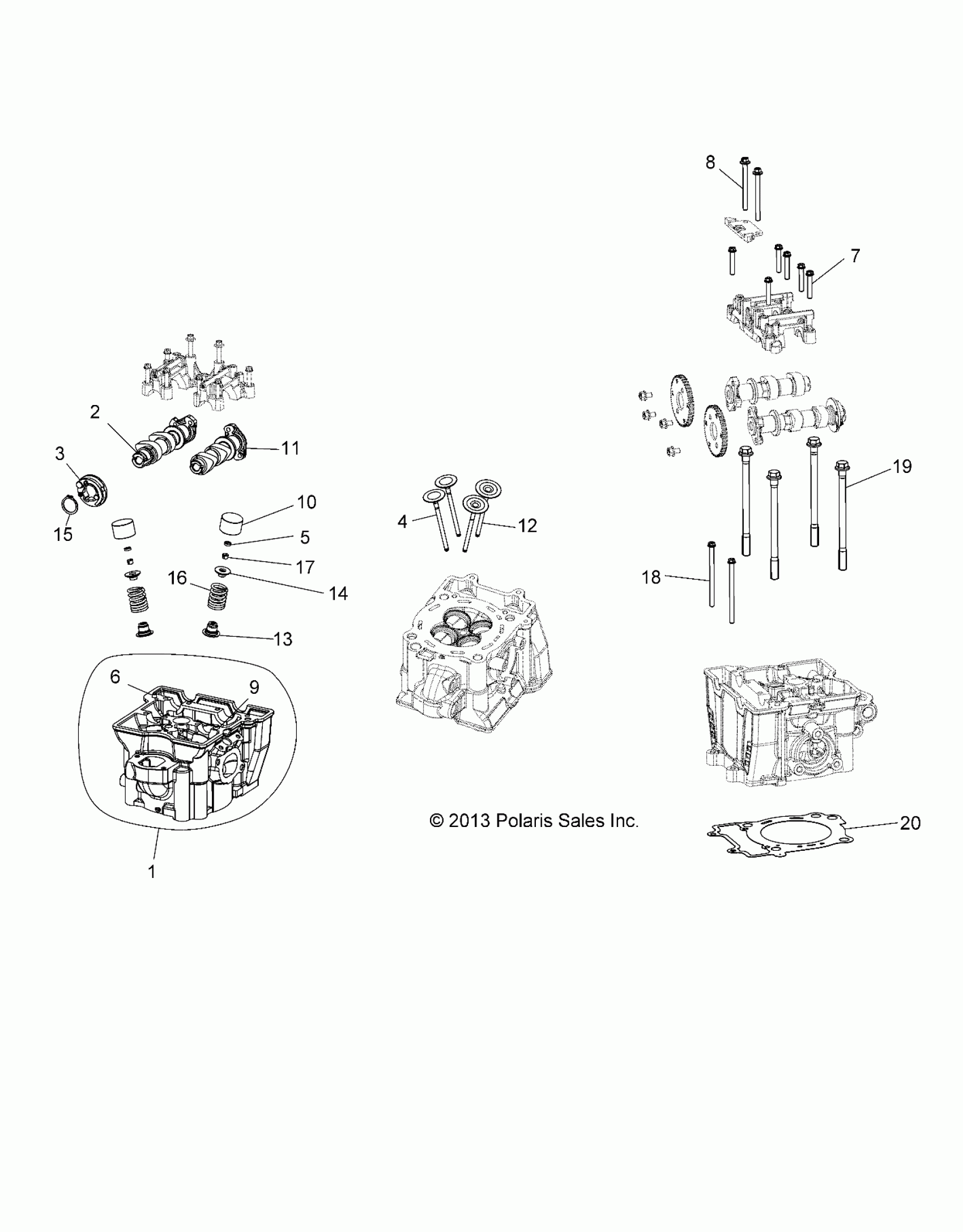

Polaris RZR 570 EFI - R13VH57AD/6EAK ENGINE, CYLINDER HEAD, CAMS and VALVES - R13VH57AD/6EAK (49RGRCYLINDERHD13RZR570) Diagram

#

Description
Price

1

ASM., CYLINDER HEAD [INCL. HEAD, GUIDES, CARRIER, 6-9]

3022521

Unavailable

2

ASM., CAMSHAFT

1204291

Unavailable

3

ASM., DECOMP SYSTEM

1204968

Unavailable

4

VALVE, INTAKE, STEEL

3022134

$48.56

5

SHIM, VALVE LASH, 2.975MM

3022173-298

Unavailable

5

SHIM, VALVE LASH, 1.825MM

3022173-182

Unavailable

5

SHIM, VALVE LASH, 1.700MM

3022173-170

Unavailable

5

SHIM, VALVE LASH, 1.900MM

3022173-190

Unavailable

5

SHIM, VALVE LASH, 2.600MM

3022173-260

Unavailable

5

SHIM, VALVE LASH, 2.700MM

3022173-270

Unavailable

5

SHIM, VALVE LASH, 2.075MM

3022173-208

Unavailable

5

SHIM, VALVE LASH, 2.525MM

3022173-252

Unavailable

5

SHIM, VALVE LASH, 2.100MM

3022173-210

Unavailable

5

SHIM, VALVE LASH, 2.475MM

3022173-248

Unavailable

5

SHIM, VALVE LASH, 2.375MM

3022173-238

Unavailable

5

SHIM, VALVE LASH, 1.950MM

3022173-195

Unavailable

5

SHIM, VALVE LASH, 2.200MM

3022173-220

Unavailable

5

SHIM, VALVE LASH, 2.400MM

3022173-240

Unavailable

5

SHIM, VALVE LASH, 2.250MM

3022173-225

Unavailable

5

SHIM, VALVE LASH, 1.975MM

3022173-198

Unavailable

5

SHIM, VALVE LASH, 2.750MM

3022173-275

Unavailable

5

SHIM, VALVE LASH, 2.550MM

3022173-255

Unavailable

5

SHIM, VALVE LASH, 2.175MM

3022173-218

Unavailable

5

SHIM, VALVE LASH, 2.350MM

3022173-235

Unavailable

5

SHIM, VALVE LASH, 2.925MM

3022173-292

Unavailable

5

SHIM, VALVE LASH, 1.775MM

3022173-178

Unavailable

5

SHIM, VALVE LASH, 2.025MM

3022173-202

Unavailable

5

SHIM, VALVE LASH, 2.225MM

3022173-222

Unavailable

5

SHIM, VALVE LASH, 1.800MM

3022173-180

Unavailable

5

SHIM, VALVE LASH, 1.850MM

3022173-185

Unavailable

5

SHIM, VALVE LASH, 2.275MM

3022173-228

Unavailable

5

SHIM, VALVE LASH, 2.800MM

3022173-280

Unavailable

5

SHIM, VALVE LASH, 2.850MM

3022173-285

Unavailable

5

SHIM, VALVE LASH, 1.925MM

3022173-192

Unavailable

5

SHIM, VALVE LASH, 2.425MM

3022173-242

Unavailable

5

SHIM, VALVE LASH, 2.950MM

3022173-295

Unavailable

5

SHIM, VALVE LASH, 2.825MM

3022173-282

Unavailable

5

SHIM, VALVE LASH, 2.725MM

3022173-272

Unavailable

5

SHIM, VALVE LASH, 2.150MM

3022173-215

Unavailable

5

SHIM, VALVE LASH, 2.325MM

3022173-232

Unavailable

5

SHIM, VALVE LASH, 2.050MM

3022173-205

Unavailable

5

SHIM, VALVE LASH, 2.875MM

3022173-288

Unavailable

5

SHIM, VALVE LASH, 2.000MM

3022173-200

Unavailable

5

SHIM, VALVE LASH, 2.575MM

3022173-258

Unavailable

5

SHIM, VALVE LASH, 1.875MM

3022173-188

Unavailable

5

SHIM, VALVE LASH, 2.500MM

3022173-250

Unavailable

5

SHIM, VALVE LASH, 2.450MM

3022173-245

Unavailable

5

SHIM, VALVE LASH, 3.00MM

3022173-300

Unavailable

5

SHIM, VALVE LASH, 2.125MM

3022173-212

Unavailable

5

SHIM, VALVE LASH, 2.625MM

3022173-262

Unavailable

5

SHIM, VALVE LASH, 2.900MM

3022173-290

Unavailable

5

SHIM, VALVE LASH, 2.300MM

3022173-230

Unavailable

5

SHIM, VALVE LASH, 1.750MM

3022173-175

Unavailable

5

SHIM, VALVE LASH, 2.650MM

3022173-265

Unavailable

5

SHIM, VALVE LASH, 1.725MM

3022173-172

Unavailable

5

SHIM, VALVE LASH,2.675 MM

3022173-268

Unavailable

5

SHIM, VALVE LASH, 2.775MM

3022173-278

Unavailable

5

SHIM

3022173

Unavailable

6

PIN-DOWEL,M6X10

5132835

$2.39

7

SCREW

7518578

$3.99

8

SCREW

7519197

$1.49

9

DWL-HOL,M8X8

7661977

$7.19

10

TAPPET, BUCKET, VALVE

3022443

$35.99

11

CAMSHAFT, INTAKE

3022299

Unavailable

12

VALVE-EXHAUST,INCONEL

3022349

$63.99

13

SEAT W/SEAL, VALVE SPRING

3610199

Unavailable

14

RETAINER, VALVE

5136901

$34.99

15

RING-SNAP EXT 23MM

7710653

$3.19

16

SPRING, VALVE

7043949

$23.99

17

KEEPER-VALVE

7081470

$4.03

18

SCREW

7519153

$5.59

19

BOLT, HEAD

7519123

Unavailable

20

GASKET, CYLINDER HEAD

5813676

Unavailable
