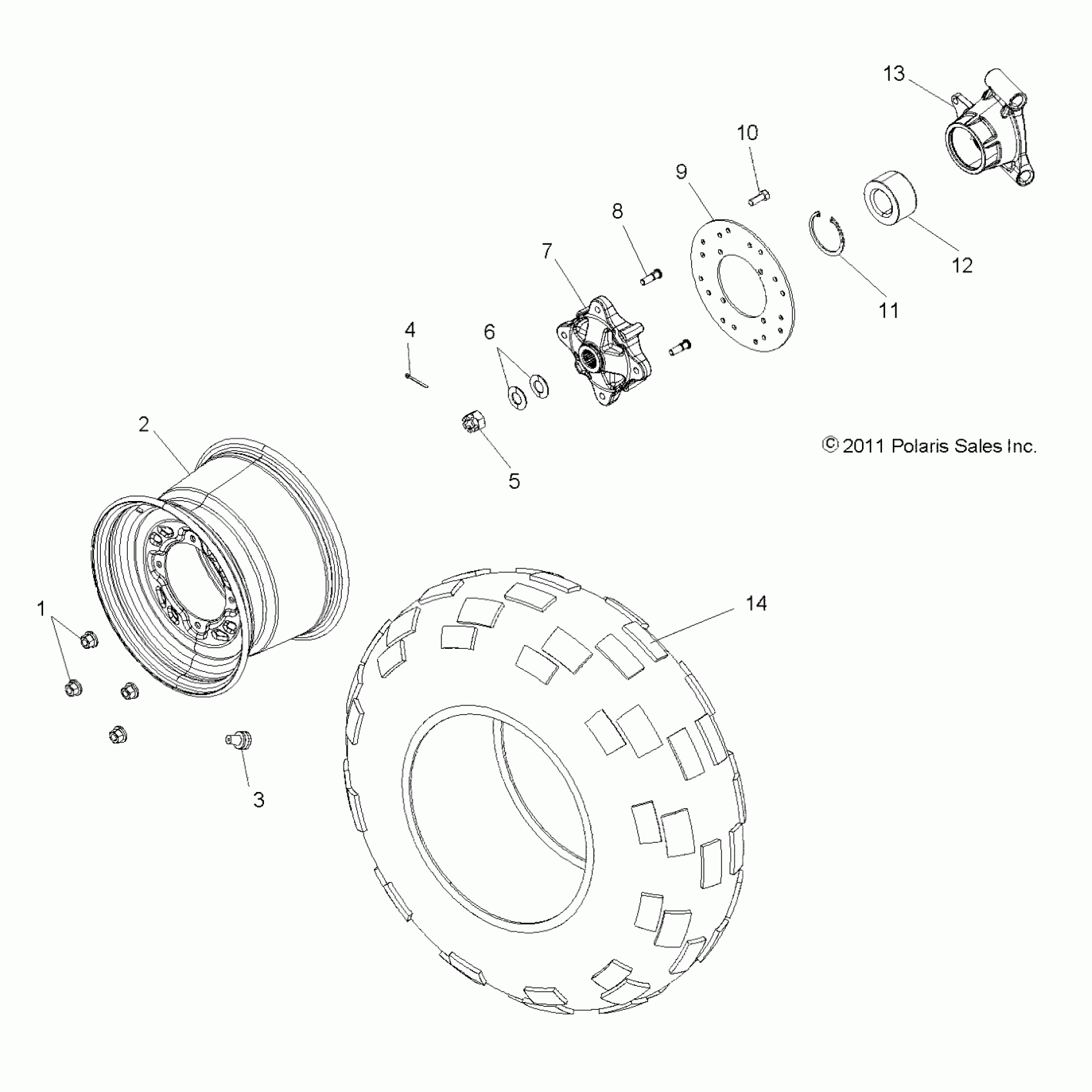

Polaris RZR 570 EFI - R12VH57AD WHEELS, REAR - R12VH57AD (49RGRWHEELRR12RZR570) Diagram

#

Description
Price

1

NUT, FLANGED

7547237

$2.39

2

RIM, REAR, BLACK

1520992-067

Unavailable

3

VALVE-RIM

1525017

$5.59

4

PIN, COTTER

7661404

$4.79

5

NUT, CASTLE

7547337

$1.99

6

WASHER, CONE

7555796

$7.99

7

HUB, WHEEL, REAR

5135113

Unavailable

8

STUD

7518378

$1.59

9

DISC, BRAKE, REAR

5248250

$75.99

10

BOLT

7518903

$3.99

11

RING, RETAINING

7710440

$10.39

12

BEARING, BALL

3514635

$39.99

12

BEARING-WHEEL,HD,40X74X40MM [OPTIONAL]

3515087

$63.99

13

Carrier, Bearing, LH

5137676

Unavailable

13

Carrier, Bearing, RH

5137677

Unavailable

14

TIRE, REAR, 25X10-12

5414179

$115.99
