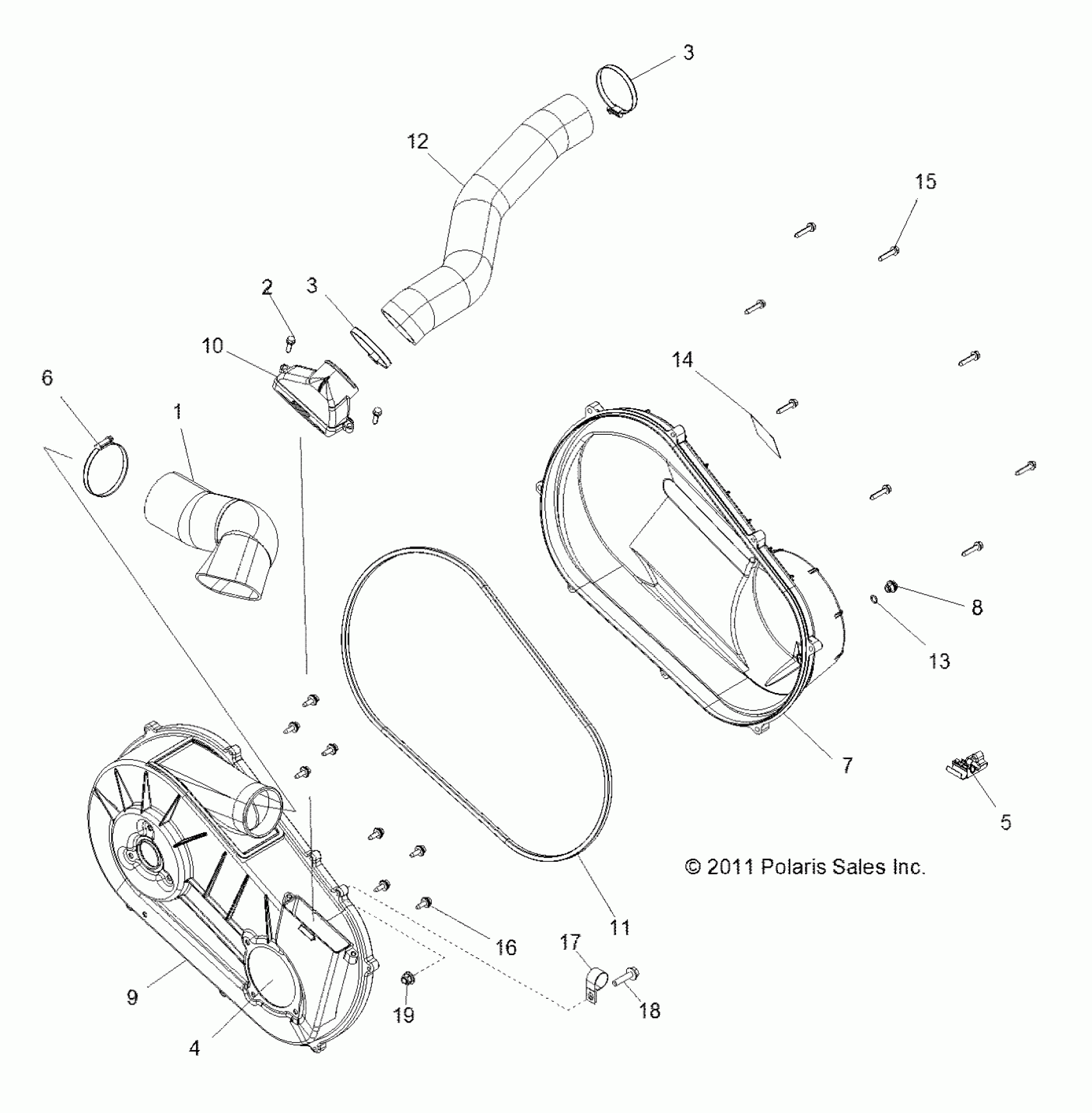

Polaris RZR 570 EFI - R12VH57AD DRIVE TRAIN, CLUTCH COVER and DUCTING - R12VH57AD (49RGRCLUTCHCVR12RZR570) Diagram

BOOT, OUTLET, CLUTCH

5813831

$71.99

Screw

7512098

$1.59

CLAMP-BAND,NARROW 60-80MM

7080707

$3.19

CLAMP-BAND,NARROW 60-80MM

7080707

$3.19

RTV SILICONE

-------

Unavailable

Clip, Routing [Built 2/06/12 and Before]

5439035

$8.23

CLAMP-BAND,NARROW 70-90MM

7081279

$3.19

ASM., COVER, CLUTCH, OUTER [INCL. OUTER COVER, PLUG, O-RING]

2634179

$175.99

PLUG-DRAIN,CLUTCH COVER

5434264

$5.59

COVER, CLUTCH, INNER

5438889

Unavailable

ASM-COVER,CLUTCH,INNER [Incl. 9,10]

2634188

$127.99

DUCT-CLUTCH,AIR IN

5438891

$27.99

SEAL, OUTER, CLUTCH COVER

5521831

Unavailable

HOSE, INTAKE, CLUTCH

5414156

$67.99

O RING-.364X.504X.07

5410542

Unavailable

DECAL-BELT,WARNING/CHECK

7177469

Unavailable

Screw [Qty 8 if Built 2/07/12 and After]

7512094

$1.59

ASM., BOLT/WASHER

7519278

$4.79

CLAMP-RUBBER COATED,.75" ID

7081116

$7.19

Bolt [Built 2/07/12 and After]

7518576

$3.19

NUT- M8X1.25, FLG, NYLOC-OLIVE D [Built 2/07/12 and After]

7547332

$3.99
