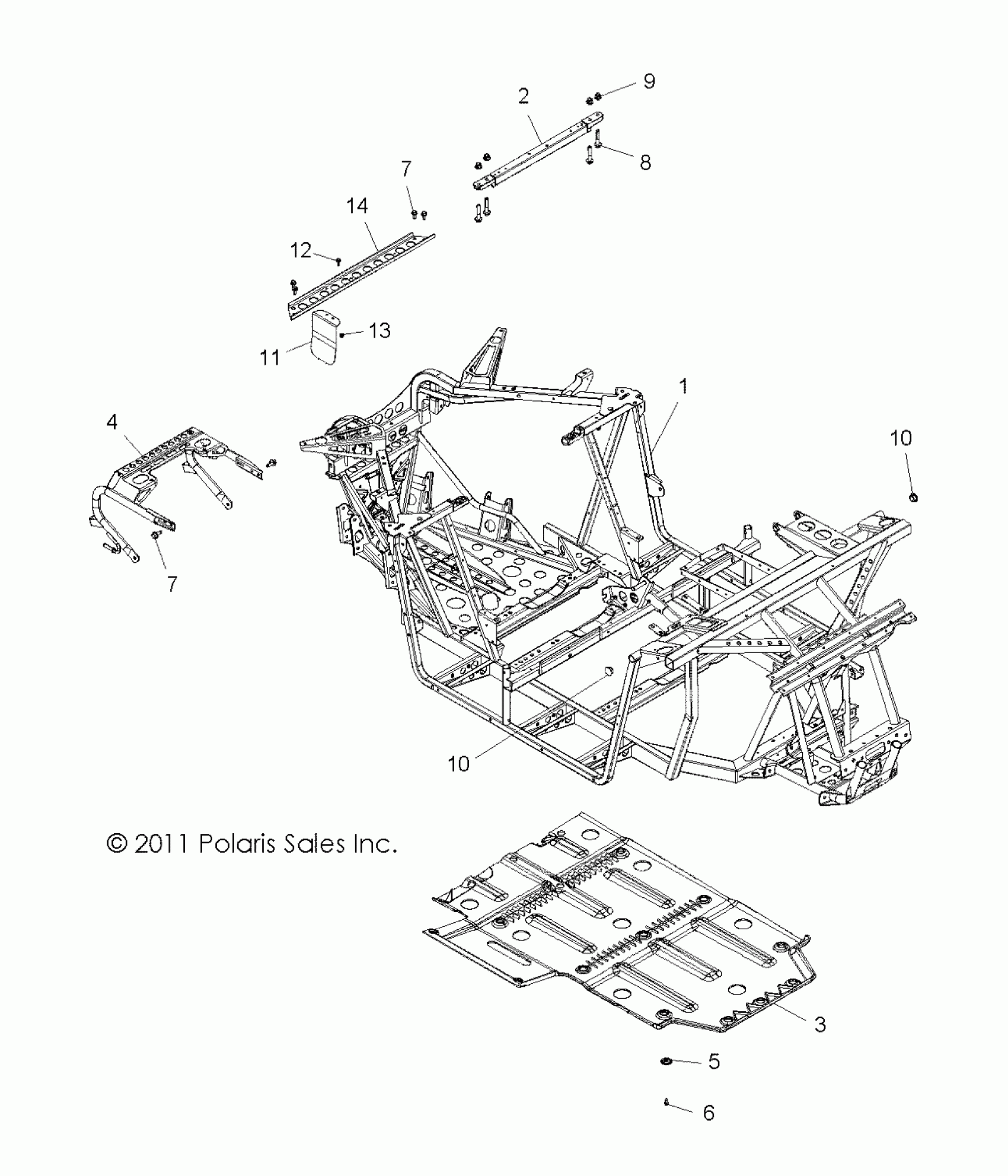

Polaris RZR 570 EFI - R12VH57AD CHASSIS, MAIN FRAME and SKID PLATE - R12VH57AD (49RGRFRAME12RZR570) Diagram

#

Description
Price

1

Frame, Main, Matte Black

1018117-458

Unavailable

2

BRACE, BOLT IN, REAR, MATTE BLACK

1018005-458

$123.99

3

PLATE, SKID, BLACK

5438937-070

$195.99

4

Support, Bumper, Rear, Black

1018144-329

Unavailable

5

WASHER-SKID PLATE

7556065

$4.79

6

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

7

BOLT

7518555

$2.39

7

BOLT

7518555

$2.39

8

SCREW

7519285

$2.39

9

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

10

CAPLUG

5437721

$6.39

10

CAPLUG

5437721

$6.39

11

Shield, Pipe

5255219

$37.11

12

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

13

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

14

BRACKET, REAR, BRACE, BLACK

5254980-458

Unavailable
