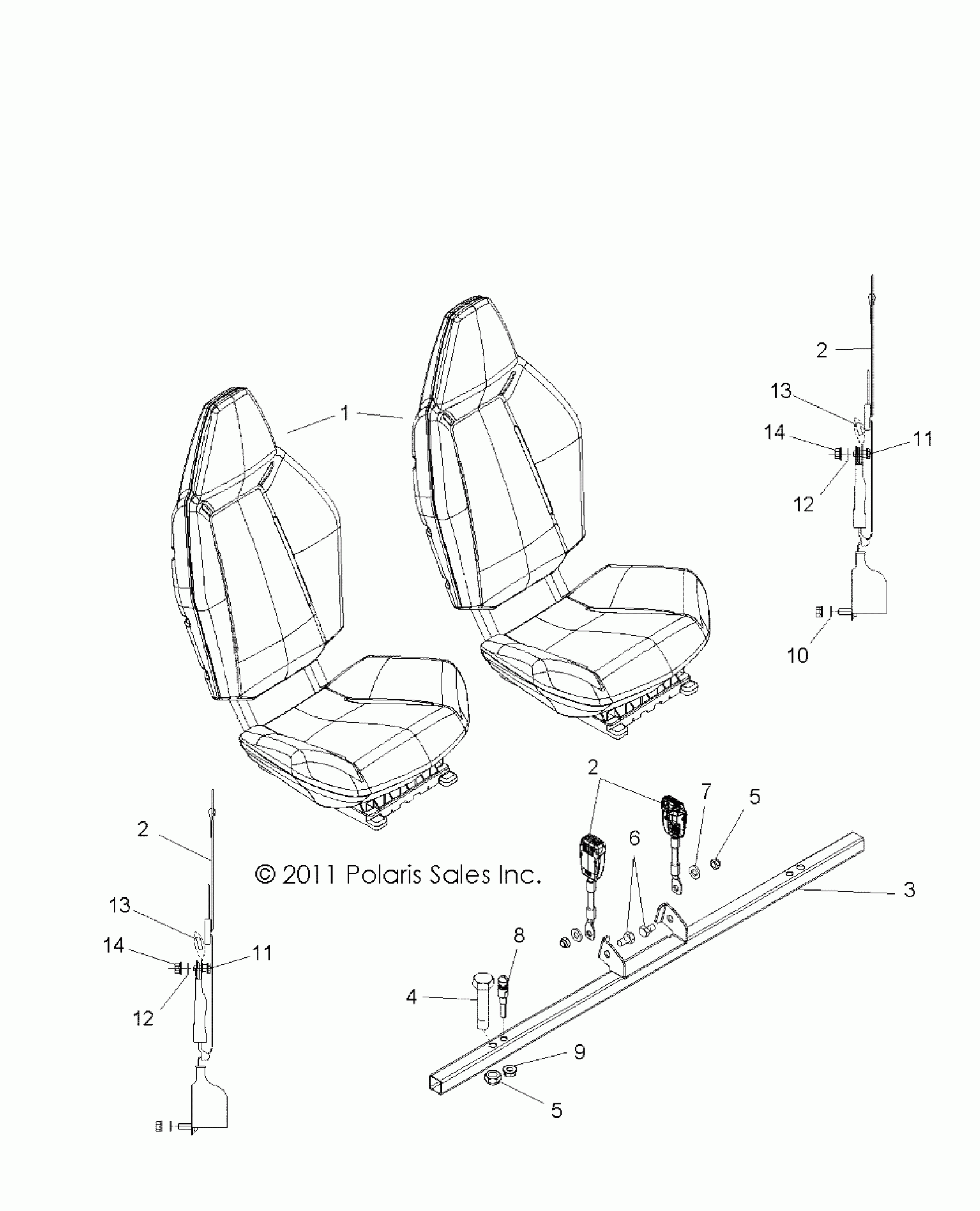

Polaris RZR 570 EFI - R12VH57AD BODY, SEAT MOUNTING and BELTS - R12VH57AD (49RGRSEATMTG12RZR570) Diagram

#

Description
Price

1

ASM., SEAT [SEE SEAT ASM. PAGE FOR DETAILS]

-------

Unavailable

2

Asm., Seat Belt, 3 Point [Incl. 10-13]

2634154

$159.99

2

Asm., Seat Belt, 3 Point [Incl. 10-13]

2634154

$159.99

2

Asm., Seat Belt, 3 Point [Incl. 10-13]

2634154

$159.99

3

BASE, SEAT, REAR, MATTE BLACK

1017452-458

Unavailable

4

SCREW

7517442

$6.39

5

NUT, NYLON

7542525

$4.79

5

NUT, NYLON

7542525

$4.79

6

Bolt

7518820

$3.99

7

WASHER, FLAT

7556333

$3.99

8

PLUNGER-LATCH

7519252

$14.39

9

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

10

WASHER-SEATBELT,RUBBER

5813829

$1.49

11

BOLT, SHOULDER

5137011

$5.59

11

BOLT, SHOULDER

5137011

$5.59

12

RETAINER

5253444

Unavailable

12

RETAINER

5253444

Unavailable

13

BOLT, CAP

5137010

$13.59

13

BOLT, CAP

5137010

$13.59

14

NUT

7547066

$1.59

14

NUT

7547066

$1.59
