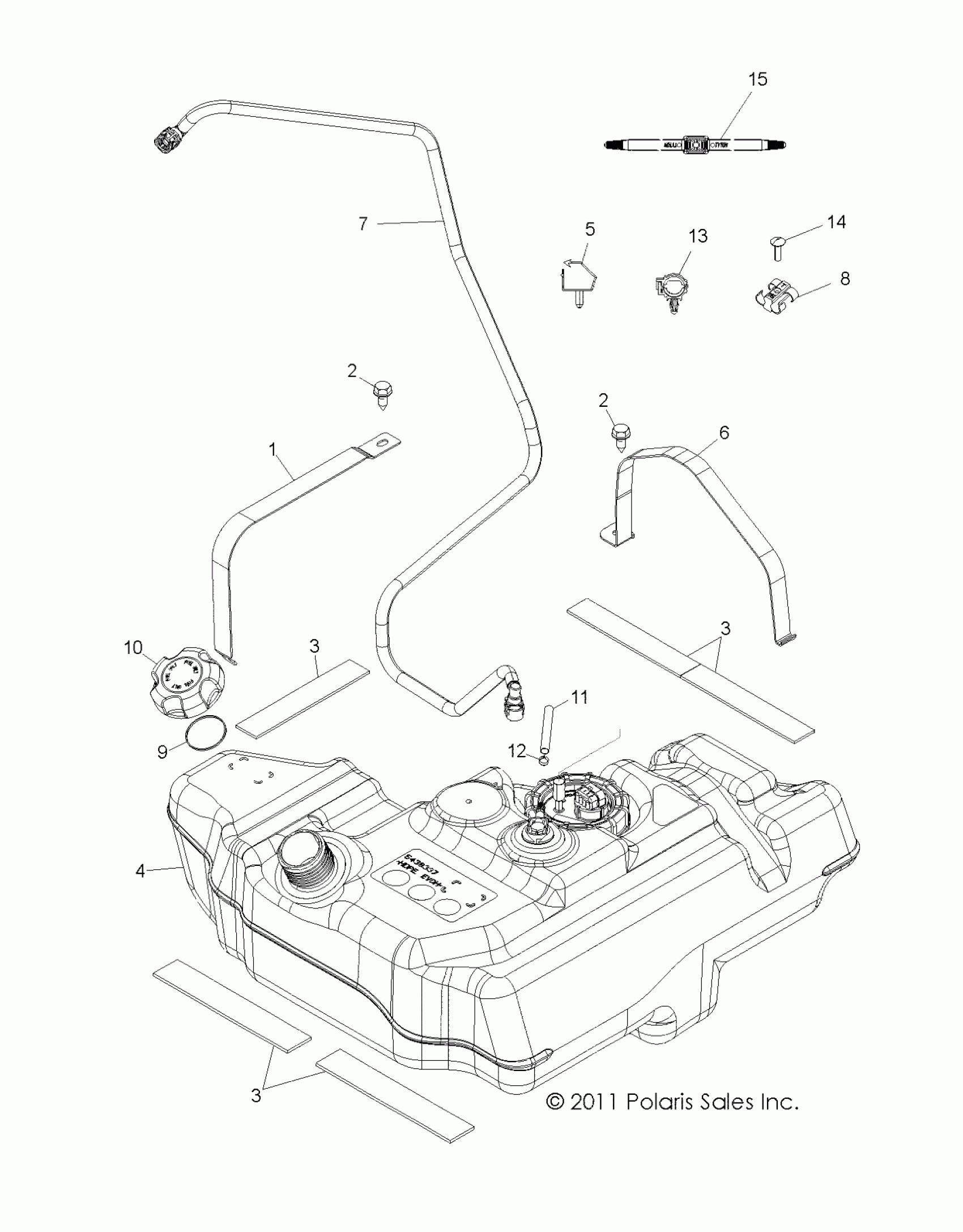

Polaris RZR 570 EFI - R12VH57AD BODY, FUEL TANK - R12VH57AD (49RGRFUEL12RZR600) Diagram

#

Description
Price

1

BRACKET, TANK, REAR

5253844

$44.51

2

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

2

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

3

PAD-BATTERY

5810290

$7.27

3

PAD-BATTERY

5810290

$7.27

3

PAD-BATTERY

5810290

$7.27

4

ASM., FUEL TANK [INCL. PUMP]

2521204

$1,199.99

4

KIT, FUEL PUMP [INCL. PUMP, GASKET, NUT, ALCOHOL WIPE, INSTRUCTIONS]

2204403

$455.99

5

CLIP, ROUTING

7670109

$2.38

6

BRACKET, TANK, FRONT

5253884

$74.99

7

ASM., FUEL LINE, RAIL TO TANK

2521252

$113.32

8

T-CLIP

7081689

$7.14

9

GASKET

5812123

$5.65

10

Cap, Gas Tank [Incl. 9]

5433687

$20.22

11

LINE, FUEL [VENT]

8450126-104

Unavailable

12

CLAMP-HOSE, (LARGE GREEN) [Built 5/07/12 and Before]

7080307

$0.79

12

Clamp, Hose [Built 5/08/12 and After]

7080236

$1.59

13

CLIP, ROSEBUD

4020139

$4.76

14

SCREW

7512025

$4.76

15

CABLE-TIE,DIA14-45MM,DUAL-LOOP

7081807

$7.94
