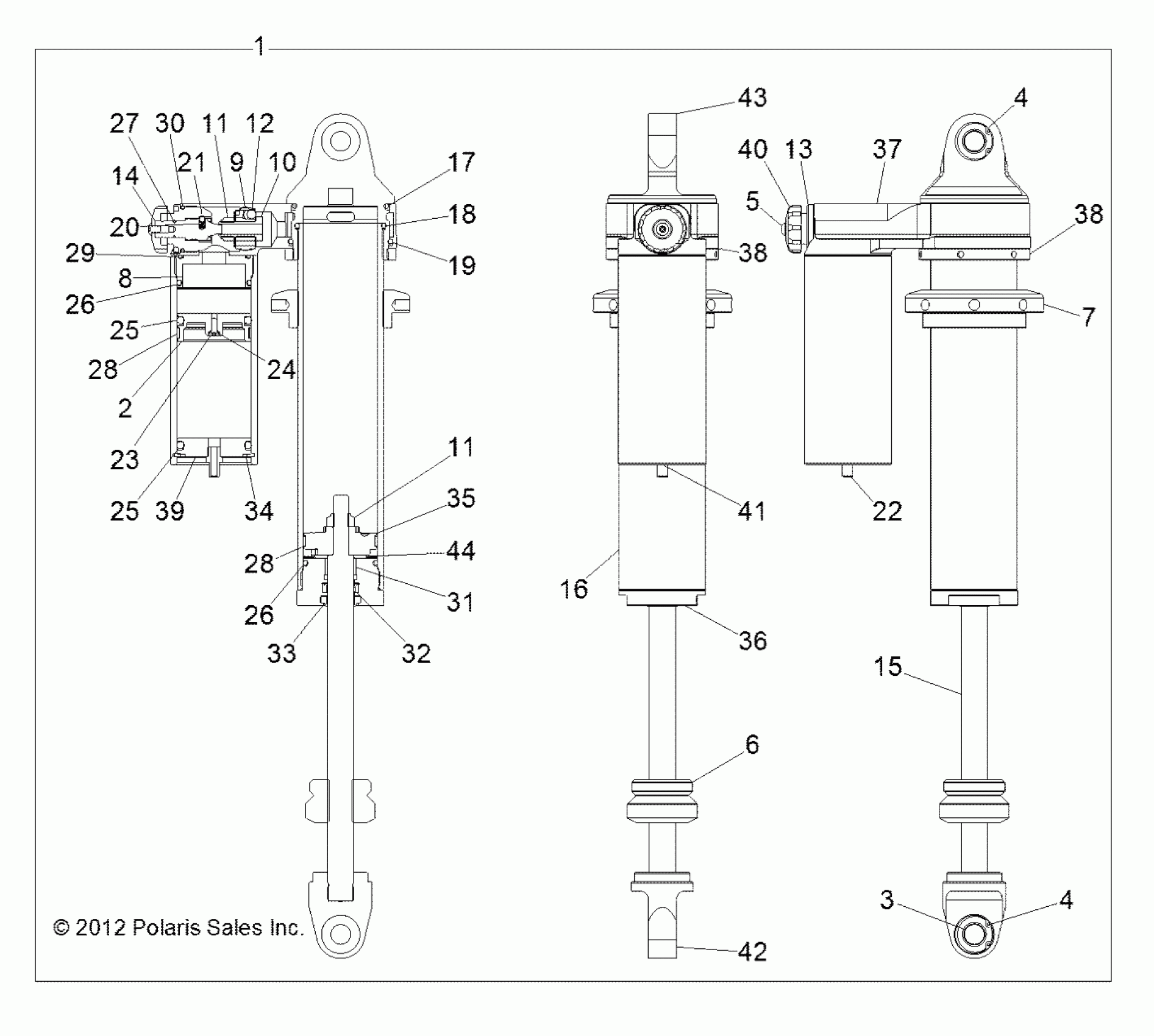

Polaris RZR 4 XP JAGGED X - R13XT9EAL SUSPENSION, REAR SHOCK (7043938) - R13XT9EAL (49RGRSHOCKRR7043938) Diagram

#

Description
Price

1

SHOCK, REAR [INCL. ALL]

7043938

$760.75

2

PISTON

1800480

$123.99

3

BEARING

1800592

$59.99

4

RING, SNAP

1800481

$79.99

4

RING, SNAP

1800481

$79.99

5

SCREW

1800357

$3.19

6

BUMPER

1800593

$63.99

7

NUT, SPRING

1800485

Unavailable

8

MOUNT

1800488

$83.99

9

CHECK VALVE

1800546

$57.19

10

BOLT, CLICKER

1800547

$35.99

11

NUT, CRIMP

1800164

$9.59

11

NUT, CRIMP

1800164

$9.59

12

BALL

1800548

$7.19

13

NUT

1800492

Unavailable

14

NUT

1800493

Unavailable

15

SHAFT

1800494

$179.99

16

BODY

1800495

$140.66

17

O-RING

1800497

$5.59

18

O-RING

1800498

$1.99

19

O-RING

1800499

$1.59

20

SPRING-COMP .025X.3, 40.5#

1800128

$10.39

21

BALL

1800127

$6.39

22

VALVE

1800021

$43.99

23

SCREW, BLEED

1800043

$5.59

24

O-RING

1800210

$1.59

25

O-RING

1800508

$5.59

25

O-RING

1800508

$5.59

26

O-RING

1800500

$1.99

26

O-RING

1800500

$1.99

27

O-RING

1800215

$7.68

28

BANK, PISTON

1800509

$55.99

28

BANK, PISTON

1800509

$55.99

29

O-RING

1800502

$1.99

30

O-RING

1800503

$1.59

31

BUSHING, SHAFT

1800504

$27.99

32

SEAL, SHAFT

1800505

$47.99

33

WIPER

1800506

$39.99

34

RING, RETAINING

1800507

$10.39

35

PISTON

1800486

Unavailable

36

ASM., SEAL HEAD

1800549

$127.59

37

BRIDGE

1800550

$190.95

38

NUT, LOCK

1800551

$83.99

38

NUT, LOCK

1800551

$83.99

39

CAP, END

1800552

$119.99

40

KNOB, ADJUSTER

1800553

$131.99

41

BODY, RESERVOIR

1800554

Unavailable

42

LOOP, SHAFT

1800555

$223.99

43

BODY, LOOP

1800556

$218.39

44

SPACER

1800496

$35.99
