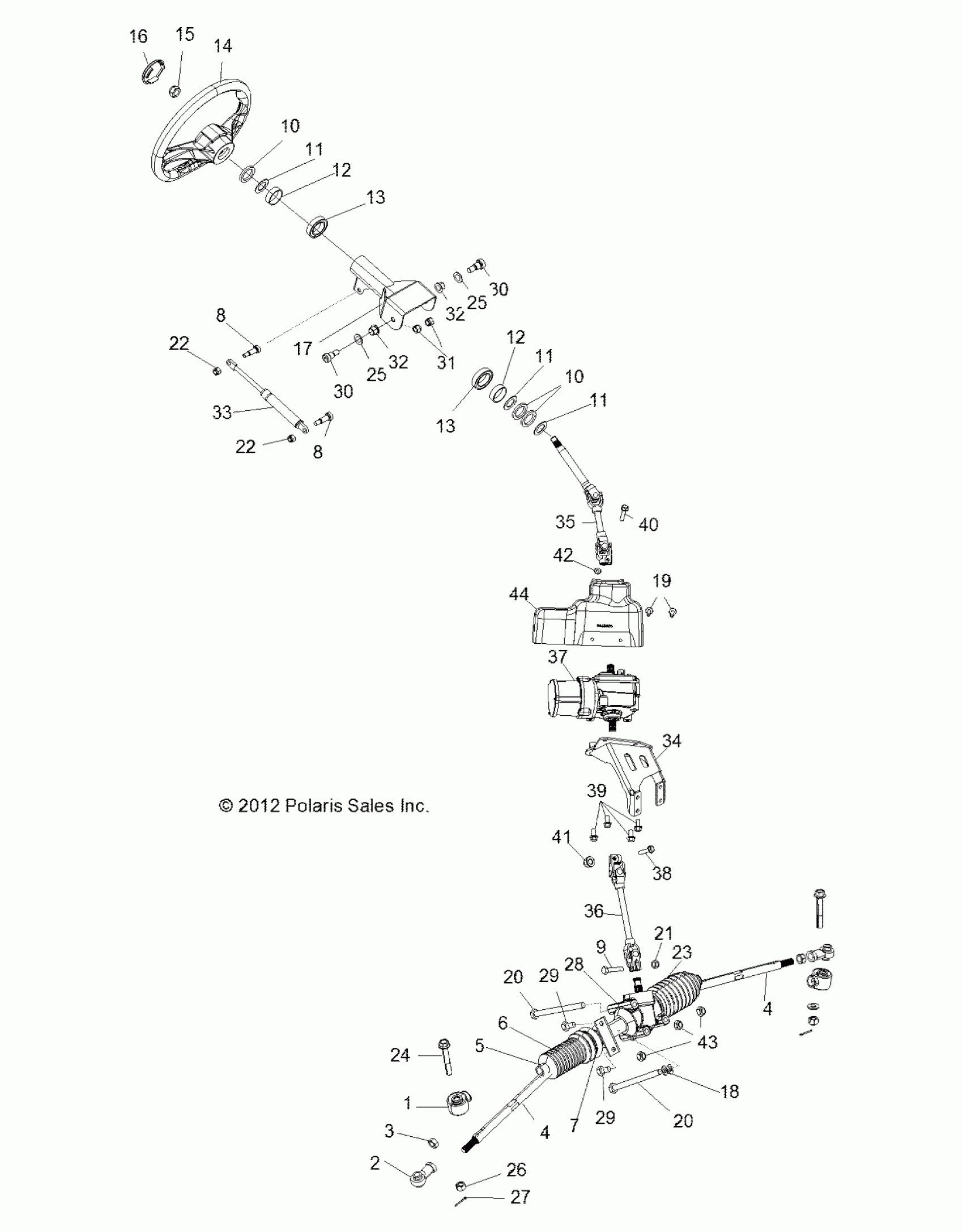

Polaris RZR 4 XP JAGGED X - R13XT9EAL STEERING, STEERING ASM. - R13XT9EAL (49RGRSTEERING13JAGX) Diagram

#

Description
Price

1

Boot, Seal, Rod End

5411920

Unavailable

2

Rod End

7061054

Unavailable

3

Nut, Jam, LH

7547028

$2.39

4

TIE ROD, INNER

-------

Unavailable

4

TIE ROD, INNER

-------

Unavailable

5

CLAMP, BOOT, SMALL

7080978

$2.39

6

BOOT, PASSENGER, SIDE RACK

5412013

$55.99

7

CLAMP, BOOT, LARGE

7080979

$5.59

8

BOLT, SHOULDER

7518786

$2.39

8

BOLT, SHOULDER

7518786

$2.39

9

SCREW

7518644

$4.79

10

WASHER-NEOPREME,28 OD X 20 ID

7556482

$3.99

10

WASHER-NEOPREME,28 OD X 20 ID

7556482

$3.99

11

WASHER

7556483

$3.99

11

WASHER

7556483

$3.99

11

WASHER

7556483

$3.99

12

SPACER-STEERING SHAFT

5252796

$4.79

12

SPACER-STEERING SHAFT

5252796

$4.79

13

BEARING-STEERING

3514686

$9.59

13

BEARING-STEERING

3514686

$9.59

14

WHEEL-STEERING, 14"

1823623

$123.99

15

NUT

7547506

$4.39

16

CAP-STEERING WHEEL

5436536

$31.99

17

ASM., TUBE, PIVOT, BLACK [INCL. 13]

1017621

$127.99

18

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

19

SCREW

7519092

$1.49

20

BOLT [LOCK PATCH]

7518935

$1.59

20

BOLT [LOCK PATCH]

7518935

$1.59

21

NUT, NYLOK

7547385

$1.49

22

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

22

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

23

BOOT, DRIVER SIDE, RACK

5412012

$59.99

24

Bolt

7517909

$5.59

25

WASHER

7555919

$4.99

25

WASHER

7555919

$4.99

26

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

27

Pin, Cotter

7661203

$1.49

28

ASM., GEAR BOX, STEERING [INCL. 2-7,23]

1823706

$580.79

29

BOLT

7518702

$3.99

29

BOLT

7518702

$3.99

30

BOLT, SHOULDER

7517607

$5.59

30

BOLT, SHOULDER

7517607

$5.59

31

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

32

BUSHING-PEDAL PIVOT

5431107

$8.79

32

BUSHING-PEDAL PIVOT

5431107

$8.79

33

ASM., SHOCK, OIL LOCKING

7043810

$91.99

34

MOUNT, EPS, BLACK

1017716-458

$119.99

35

SHAFT, STEERING, EPS, UPPER

1823749

$139.99

36

SHAFT, STEERING, EPS, LOWER

1823846

$227.99

37

ASM., POWER STEERING

2411826

Unavailable

38

SCREW

7519052

$1.59

39

BOLT

7518558

$3.99

40

SCREW

7516827

$6.39

41

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

42

NUT-M6 FLANGE,NYLOC

7547274

$1.49

43

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

44

COVER, EPS

5438626

$31.99
