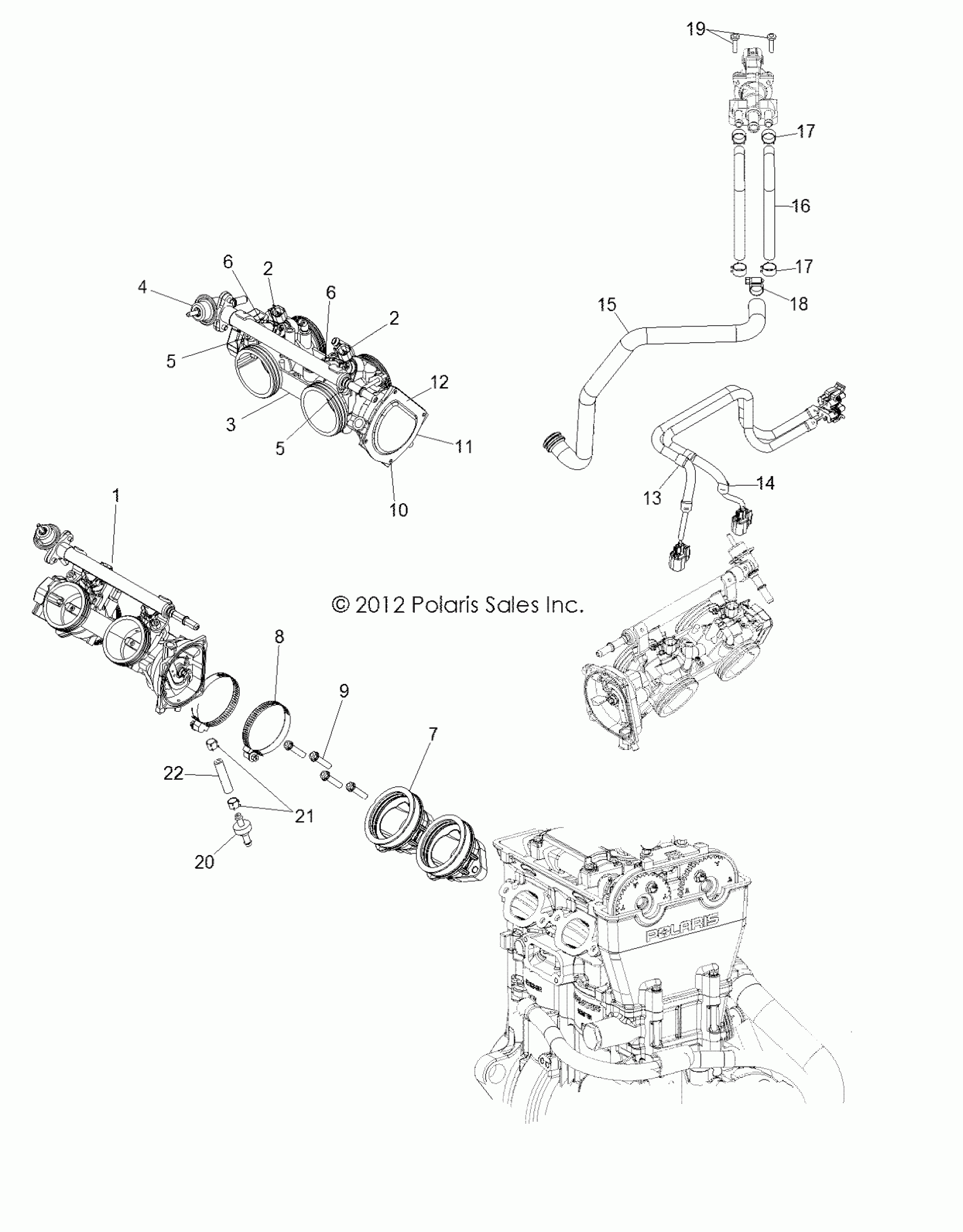

Polaris RZR 4 XP JAGGED X - R13XT9EAL ENGINE, THROTTLE BODY and INJECTOR - R13XT9EAL (49RGRTHROTTLEBODY12RZRXP4) Diagram

#

Description
Price

1

ASM., THROTTLE BODY, DUAL [INCL. 1-6, 10-12]

1204552

$949.99

2

INJECTOR, FUEL

2521068

$101.17

2

INJECTOR, FUEL

2521068

$101.17

3

ASM., THROTTLE BODY, DUAL

----

Unavailable

4

ASM., FUEL RAIL

3131715

$339.98

5

BOLT, FUEL RAIL

3131716

$4.76

5

BOLT, FUEL RAIL

3131716

$4.76

6

CLIP, INJECTOR

3131717

$11.11

6

CLIP, INJECTOR

3131717

$11.11

7

ADAPTER, THROTTLE BODY

1204490

$53.24

8

Clamp, Narrow Band

7080413

$3.17

9

SCREW

7519297

$3.97

10

SCREW-MIKUNI C2=0408

3130592

$1.59

11

COVER, THROTTLE CAM

3131734

$32.37

12

O-RING, THROTTLE CAM COVER

3131735

$7.27

13

ASM., INJECTOR, FUEL, MAG, BLACK

1204366

$67.76

14

ASM., INJECTOR, FUEL, PTO, GRAY

1204367

$40.46

15

HOSE, IAC, FORMED

5813644

$44.51

16

HOSE, IAC, SHORT

5813672

$6.46

17

HOSE CLAMP, RED

7080003

$1.19

17

HOSE CLAMP, RED

7080003

$1.19

18

CLAMP-HOSE,.875-SS

7080474

$8.54

19

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.17

20

VALVE, CHECK

7052038

$11.32

21

CLAMP-HOSE, (LARGE GREEN)

7080307

$0.79

22

HOSE

8450113-153

Unavailable
