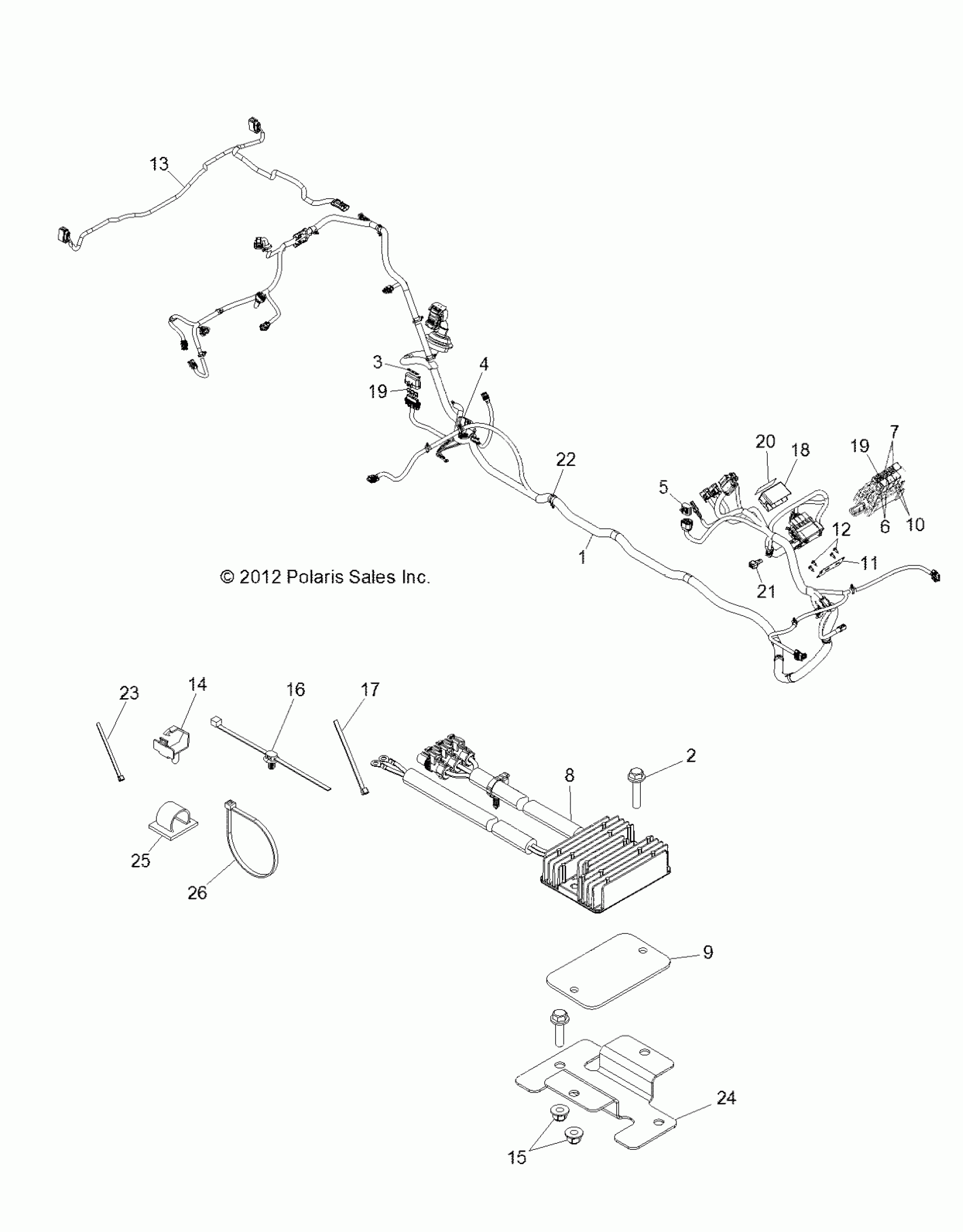

Polaris RZR 4 XP JAGGED X - R13XT9EAL ELECTRICAL, WIRE HARNESS - R13XT9EAL (49RGRHARNESS13RZRXP) Diagram

HARNESS, CHASSIS [INCL. 3-7,10,18-22]

2411692

$1,047.19

BOLT

7518576

$3.19

DECAL, POWER FUSE

7177211

Unavailable

BREAKER-CIRCUIT,20 AMP,SEALED

2410881

$72.84

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

FUSE-IGNITION,10 AMP

2434016

$4.79

FUSE-PARK,20 AMP

2434017

Unavailable

K-REGULATOR ADAPTER [INCL. HARNESS, SCREWS, NUTS]

2206367

$101.19

PLATE, HEAT SINK, REGULATOR

5254970

Unavailable

RELAY-SPST,SERIES 303,SEALED

4011283

Unavailable

PLATE, FUSE MOUNT

5253675

$7.19

Rivet

7661855

$1.49

HARNESS, BOX

2411805

$55.99

CLIP, ROUTING

7670109

$2.39

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

COVER-RELAY/FUSE CENTER

5438758

$11.32

FUSE-MAIN,30 AMP

2434015

$7.19

FUSE-MAIN,30 AMP

2434015

$7.19

DECAL, RELAY/FUSE BLOCK

7176911

Unavailable

DIODE, 6 AMP

2410000

$35.99

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

BRACKET, REGULATOR MOUNT, BLACK

5256448-329

$43.99

CLIP, WIRE, ADHESIVE BACK

7670134

$9.59

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41
