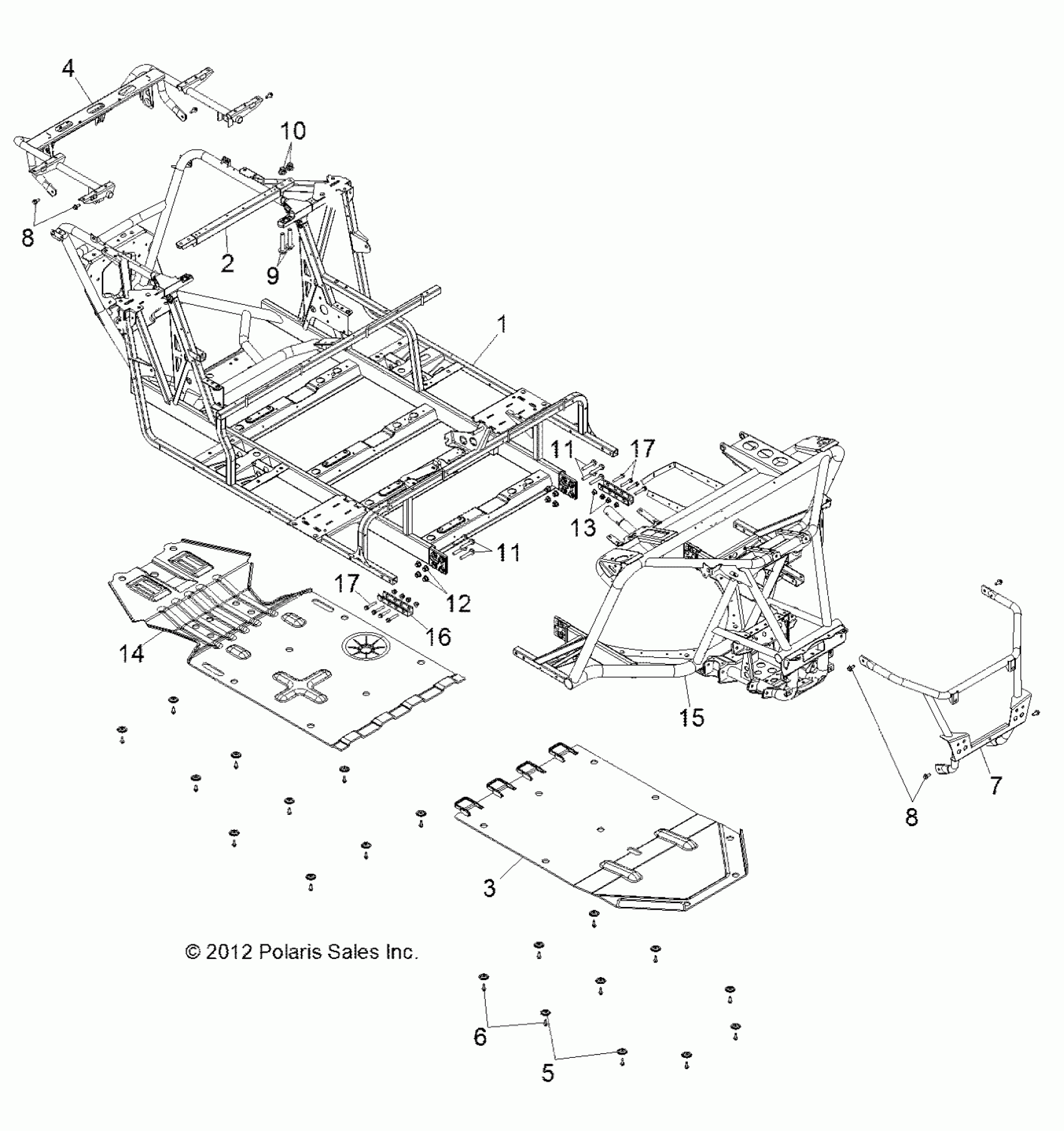

Polaris RZR 4 XP JAGGED X - R13XT9EAL CHASSIS, MAIN FRAME and SKID PLATE - R13XT9EAL (49RGRFRAME13JAGX) Diagram

#

Description
Price

1

FRAME, MAIN, REAR, MATTE BLACK

1018109-458

Unavailable

2

BRACE, BOLT IN, REAR, BLACK

1018959-329

$107.19

3

PLATE, SKID, FRONT, BLACK

5438909-070

$175.99

4

SUPPORT, BUMPER, REAR, MATTE BLACK

1017473-458

Unavailable

5

WASHER-SKID PLATE

7556065

$4.79

6

BOLT

7518513

$4.79

7

SUPPORT, BUMPER, FRONT, MATTE BLACK

1017471-458

$457.59

8

BOLT

7518555

$2.39

8

BOLT

7518555

$2.39

9

SCREW

7519285

$2.39

10

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

11

BOLT

7518474

$4.79

11

BOLT

7518474

$4.79

12

Nut, Flange

7547313

$1.49

13

Nut, Flange

7547317

Unavailable

14

PLATE, SKID, REAR, BLACK

5438911-070

$171.59

15

FRAME, FRONT, MATTE BLACK

1018110-458

Unavailable

16

BRACKET, FRAME EXT, SIDE, MATTE BLACK

5253873-458

$27.99

17

SCREW

7516732

$1.59

17

SCREW

7516732

$1.59
