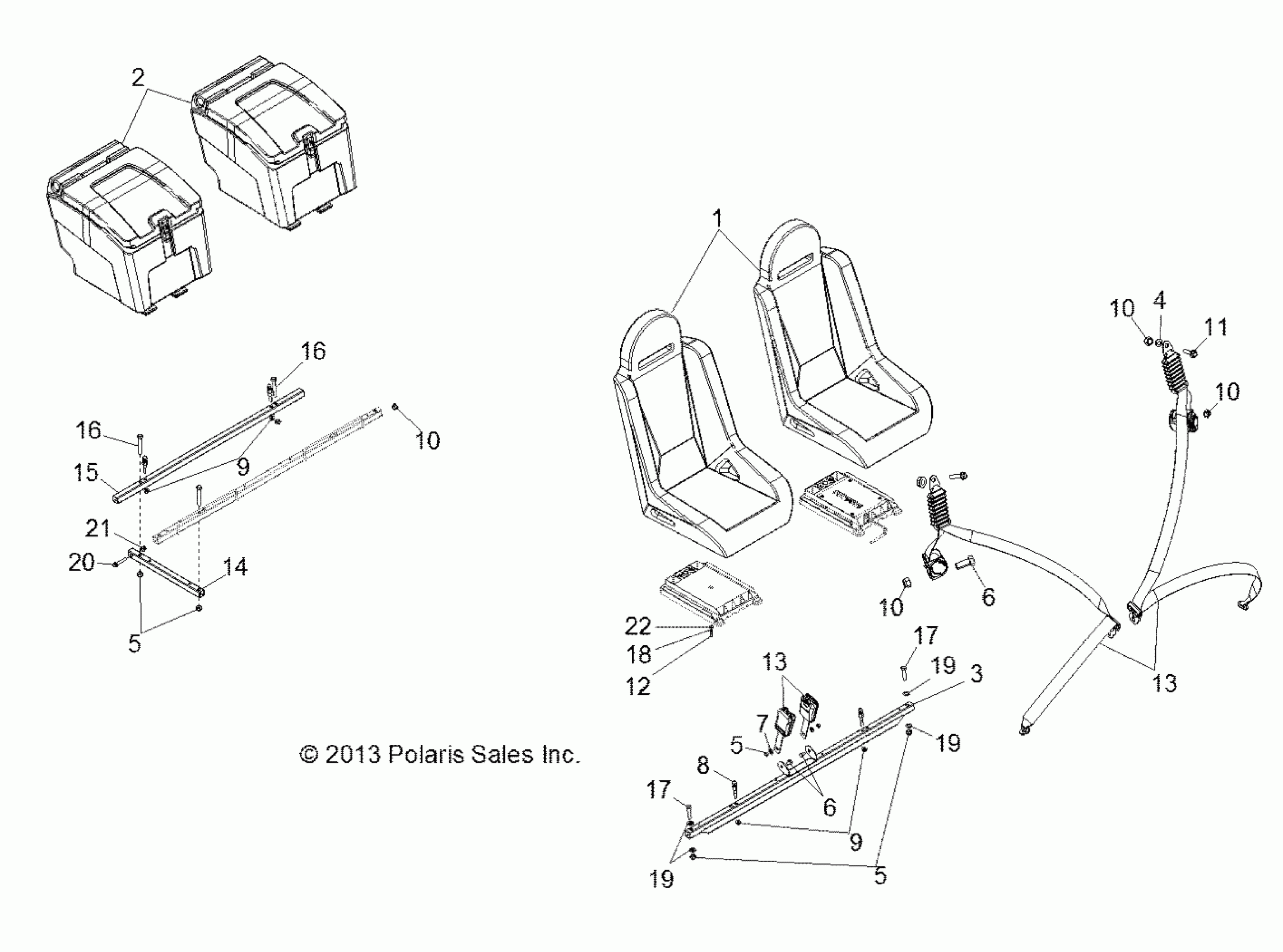

Polaris RZR 4 XP JAGGED X - R13XT9EAL BODY, SEAT, MOUNTING and BELTS - R13XT9EAL (49RGRSEAT13JAGX) Diagram

#

Description
Price

1

ASM., SEAT, BLACK

2685705

Unavailable

2

KIT, BOX, SEAT

2879058

Unavailable

3

BASE, SEAT, MATTE BLACK

1017454-458

$115.99

4

WASHER-SEATBELT,RUBBER

5813829

$1.49

5

NUT, NYLON

7542525

$4.79

5

NUT, NYLON

7542525

$4.79

5

NUT, NYLON

7542525

$4.79

6

BOLT

7512520

$4.79

6

BOLT

7512520

$4.79

7

WASHER, FLAT

7556333

$3.99

8

PLUNGER-LATCH

7519252

$14.39

9

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

9

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

10

NUT

7547066

$1.59

10

NUT

7547066

$1.59

10

NUT

7547066

$1.59

10

NUT

7547066

$1.59

11

SCREW

7519241

Unavailable

12

SCREW

7519296

$1.59

13

ASM., SEAT BELT, FRONT

2635091

Unavailable

13

ASM., SEAT BELT, FRONT

2635091

Unavailable

14

TUBE, SUPPORT, SEAT, REAR, MATTE BLACK

5336541-458

Unavailable

15

TUBE, SEAT BASE, REAR, MATTE BLACK

5335107-458

$58.39

16

SCR-HH-7/16-14X2.75 GR5 ZY3 NY

7517873

$2.39

16

SCR-HH-7/16-14X2.75 GR5 ZY3 NY

7517873

$2.39

17

SCREW

7519891

Unavailable

17

SCREW

7519891

Unavailable

18

WASHER, SPRING LOCK

7552801

$1.59

19

WASHER, FLAT

7556468

$3.99

19

WASHER, FLAT

7556468

$3.99

19

WASHER, FLAT

7556468

$3.99

20

SCREW

7516732

$1.59

21

Nut, Flange

7547317

Unavailable

22

Washer, Flat

7555859

$1.49
