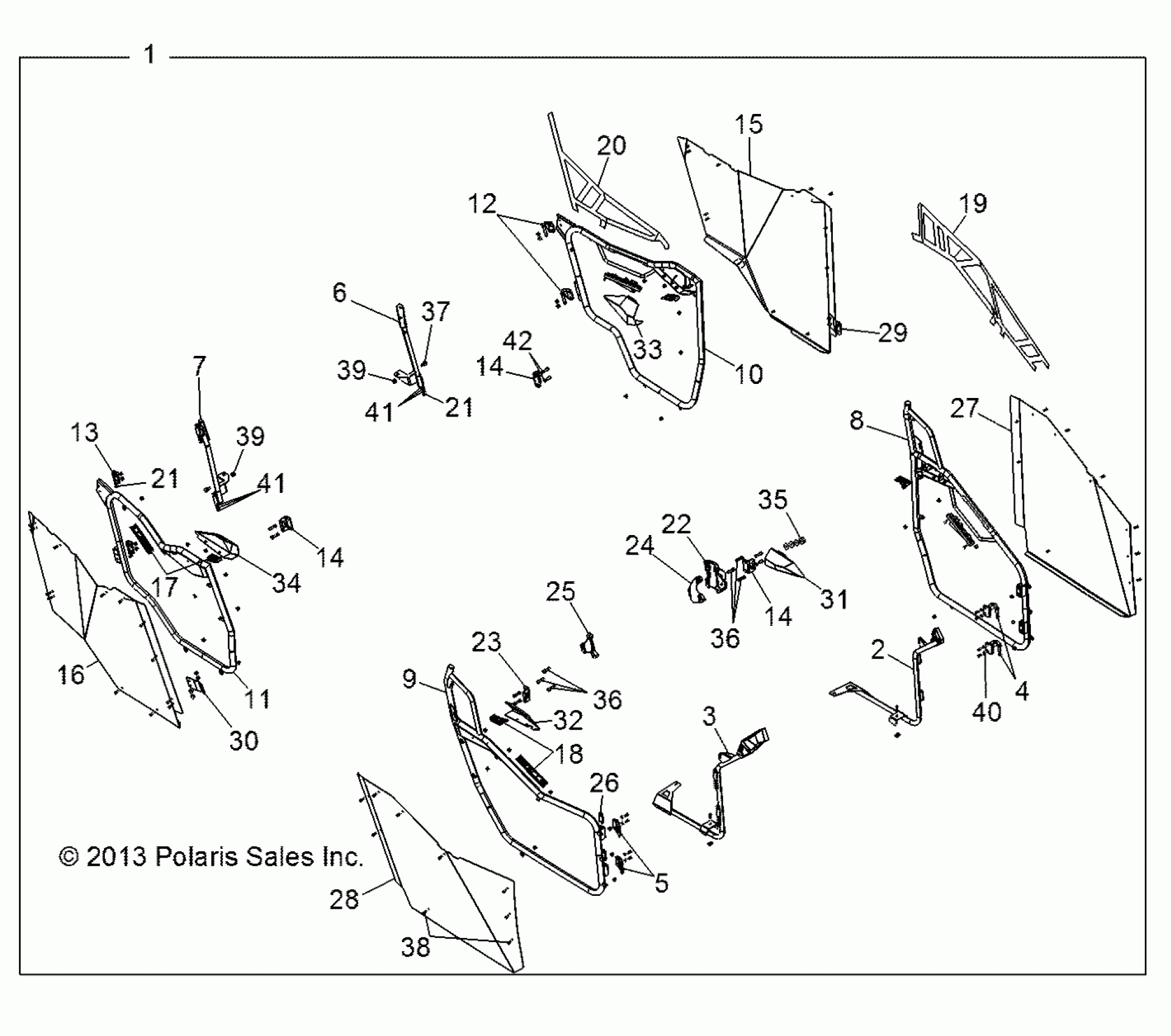

Polaris RZR 4 XP JAGGED X - R13XT9EAL BODY, DOOR - R13XT9EAL (49RGRDOOR13JAGX) Diagram

#

Description
Price

1

KIT, DOOR, AL, RZ4, BLACK [INCL. ALL]

2879042

Unavailable

2

WELD, HINGE SUPPORT BRKT, RZR, LH

1018173

Unavailable

3

WELD, HINGE SUPPORT BRKT, RZR, RH

1018174

Unavailable

4

WELD, HINGE BRACKET, RZR, LH

1018177

$28.32

5

WELD, HINGE BRACKET, RZR, RH

1018178

$131.29

6

WELD, HINGE SUPPORT BRKT, LH, RR

1019234

Unavailable

7

WELD, HINGE SUPPORT BRKT, RH, RR

1019235

Unavailable

8

WELD, DOOR, FR, LH, RZ4

1019244

Unavailable

9

WELD, DOOR, FR, RH, RZ4

1019245

$366.65

10

WELD, DOOR, RR, LH, RZ4

1019246

Unavailable

11

WELD, DOOR, RR, RH, RZ4

1019247

Unavailable

12

WELD, HINGE BRACKET, RR, LH, RZ4

1019248

$16.35

13

WELD, HINGE BRACKET, RR, RH, RZ4

1019249

Unavailable

14

WELD, BRKT, STRIKER, DOOR, RZ4

1019250

Unavailable

14

WELD, BRKT, STRIKER, DOOR, RZ4

1019250

Unavailable

14

WELD, BRKT, STRIKER, DOOR, RZ4

1019250

Unavailable

15

WELD, SKIN, DOOR, RR, LH, RZ4

1019295

Unavailable

16

WELD, SKIN, DOOR, RR, RH, RZ4

1019296

$145.22

17

ASM., LATCH, DOOR, LF/RR, RZ4

1019297

Unavailable

18

ASM., LATCH, DOOR, RF/LR, RZ4

1019298

Unavailable

19

NET, HALF DOOR, FRT, RZ4

2685528

$182.54

20

NET, HALF DOOR, RR, RZ4

2685529

Unavailable

21

RING-RETAINING

7710415

$2.74

21

RING-RETAINING

7710415

$2.74

22

MNT, STRIKER, DOOR, LH OUTER

5138334

$183.95

23

MNT, STRIKER, DOOR, RH OUTER

5138335

Unavailable

24

MNT, STRIKER, DOOR, LH INNER

5138336

Unavailable

25

MNT, STRIKER, DOOR, RH INNER

5138337

$63.79

26

STRAP, HINGE MOUNT, STEEL, DOOR

5255462

Unavailable

27

DOOR, SKIN, AL, FR, LH, RZ4

5256927

$113.32

28

DOOR, SKIN, AL, FR, RH, RZ4

5256928

Unavailable

29

BRKT, DOOR, SECURE. LH, RR, RZR4

5256929

$44.51

30

BRKT, DOOR, SECURE, RH, RZR4

5256930

Unavailable

31

COVER, LATCH, DOOR, FR, LH, RZ4

5256939

Unavailable

32

COVER, LATCH, DOOR, FR, RH, RZ4

5256940

Unavailable

33

COVER, LATCH, DOOR, RR, LH, RZ4

5256941

Unavailable

34

COVER, LATCH, DOOR, RR, RH, RZ4

5256942

$17.30

35

GUIDE, DOOR, ISOLATOR, RZ4

5450151

$11.90

36

SCREW

7517361

$23.81

36

SCREW

7517361

$23.81

37

BOLT, HXHDFLG

7518702

$3.97

38

SCREW

7519748

$4.76

39

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

39

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

40

WASHER, LOCK

7555949

Unavailable

41

WASHER

7556026

$10.46

41

WASHER

7556026

$10.46

42

WASHER-LOCK

7556111

$1.59
