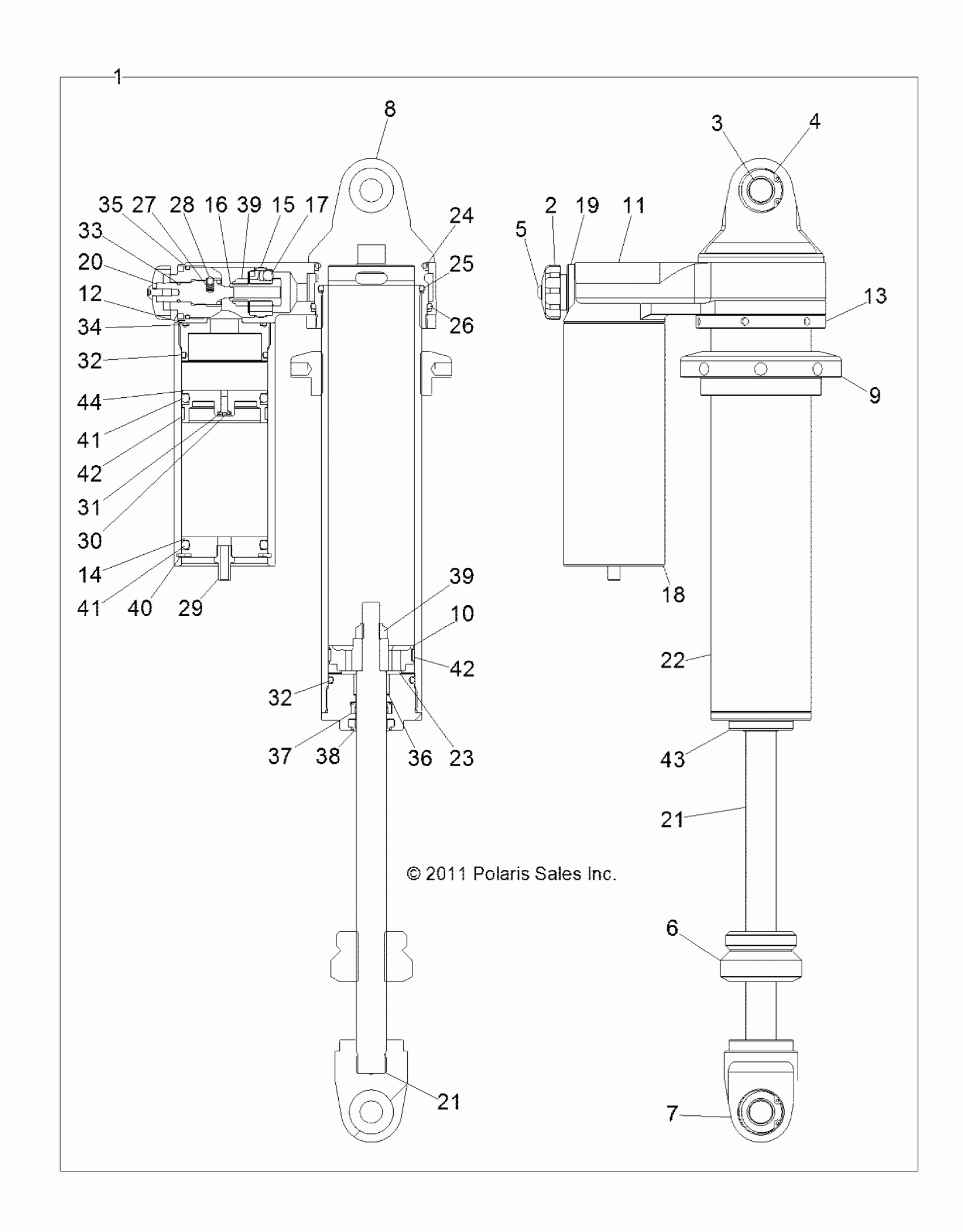

Polaris RZR 4 XP 900 - R12XT87AA/9EAS SUSPENSION, REAR SHOCK (7043776) - R12XT87AA/9EAS (49RGRSHOCKRR7043776) Diagram

#

Description
Price

1

Shock, Rear [Incl. All]

7043776

$899.99

2

KNOB, CLICKER

1800481

$101.65

3

BEARING, SPHERICAL

1800592

$74.99

4

Reing, Retaining

1800482

$13.54

5

SCREW

1800357

$2.19

6

BUMPER

1800593

$80.74

7

Loop, Shaft

1800483

$77.99

8

Loop, Body

1800484

$216.17

9

NUT, SPRING

1800485

$104.99

10

PISTON

1800486

Unavailable

11

Bridge, PB

TBA

Unavailable

12

MOUNT, RESERVOIR

1800488

$106.49

13

Nut, Lock

1800489

$28.99

14

Cap, End

1800490

$38.19

15

Valve, Check

TBA

Unavailable

16

Bolt, Clicker

TBA

Unavailable

17

Ball

TBA

Unavailable

18

Body, Reservoir

1800491

$81.75

19

NUT

1800492

Unavailable

20

NUT

1800493

Unavailable

21

SHAFT

1800494

$227.52

21

SHAFT

1800494

$227.52

22

BODY

1800495

Unavailable

23

SPACER

1800496

Unavailable

24

O-RING

1800497

$5.65

25

O-RING

1800498

$2.02

26

O-RING

1800499

$1.60

27

SPRING-COMP .025X.3, 40.5#

1800128

$11.32

28

BALL, D-TENT

1800127

$6.46

29

VALVE, SCHRAEDER

1800021

$48.56

30

SCREW, BLEED

1800043

$6.46

31

O-RING, BLEED SCREW

1800210

$1.60

32

O-RING

1800500

$2.02

32

O-RING

1800500

$2.02

33

O-Ring, Stud

1800215

$7.68

34

O-RING

1800502

$2.02

35

O-RING

1800503

$1.60

36

BUSHING, SHAFT

1800504

$39.99

37

SEAL, SHAFT

1800505

$64.99

38

WIPER

1800506

$54.99

39

Nut, Crimp

TBA

Unavailable

39

Nut, Crimp

TBA

Unavailable

40

RING, RETAINING

1800507

$13.99

41

O-RING

1800508

$5.65

41

O-RING

1800508

$5.65

42

BAND, PISTON

1800509

$71.24

42

BAND, PISTON

1800509

$71.24

43

Asm., Seal Head

TBA

Unavailable

44

PISTON

1800480

$123.02
