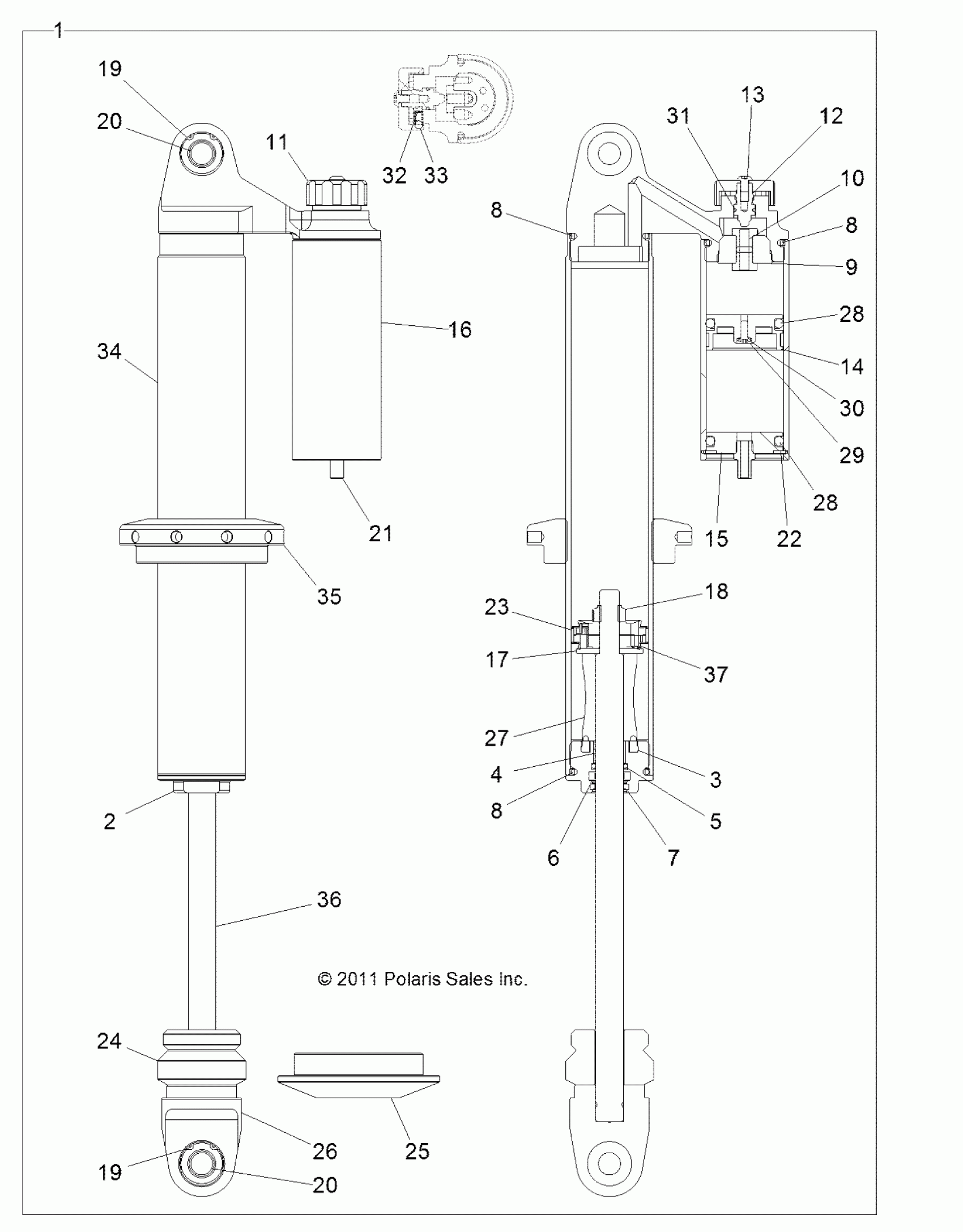

Polaris RZR 4 XP 900 - R12XT87AA/9EAS SUSPENSION, FRONT SHOCK (7043777) - R12XT87AA/9EAS (49RGRSHOCKFRT7043777) Diagram

#

Description
Price

1

Shock, Front [Incl. All]

7043777

Unavailable

2

Head, Seal

1800385

$52.24

3

Stop, Bump, Internal

1800386

Unavailable

4

BUSHING, SHAFT

1800038

$12.70

5

O-RING, SEAL HEAD, BROWN

1800655

$8.70

6

Seal, Shaft, U Cup, Black

1800656

$39.99

7

WIPER

1800034

$36.41

8

O-RING BODY LOOP

1800030

$1.37

8

O-RING BODY LOOP

1800030

$1.37

8

O-RING BODY LOOP

1800030

$1.37

9

PISTON

1800217

$56.65

10

SCREW

1800219

$11.11

11

KNOB

1800284

Unavailable

12

STUD, CLICKER

1800352

$39.99

13

SCREW

1800357

$2.19

14

PISTON, RESERVOIR

1800355

$99.99

15

Cap, End

1800394

Unavailable

16

BODY, RESERVOIR

1800392

$109.27

17

WASHER

1800393

Unavailable

18

NUT, CRIMP

1800164

$9.52

19

RING, SNAP

1800041

$8.08

19

RING, SNAP

1800041

$8.08

20

BEARING

1800170

$109.99

20

BEARING

1800170

$109.99

21

VALVE, SCHRAEDER

1800021

$48.56

22

RING, SNAP

1800159

$5.56

23

BAND, PISTON

1800185

$44.51

24

BUMPER

1800593

$80.74

25

RETAINER, SPRING

1500867

$84.99

26

RING, RETAINING

1800482

$13.54

27

SPACER, SHAFT

1800512

$79.03

28

O-RING

1800184

$5.65

28

O-RING

1800184

$5.65

29

SCREW, BLEED

1800043

$6.46

30

O-RING, BLEED SCREW

1800210

$1.60

31

O-Ring, Stud

1800215

$7.68

32

SPRING-COMP .025X.3, 40.5#

1800128

$11.32

33

BALL, D-TENT

1800127

$6.46

34

Spacer, Shaft

1800513

$175.99

35

NUT, SPRING

1800514

$87.13

36

SHAFT

1800515

Unavailable

37

ASM., PISTON

1800516

$129.51
