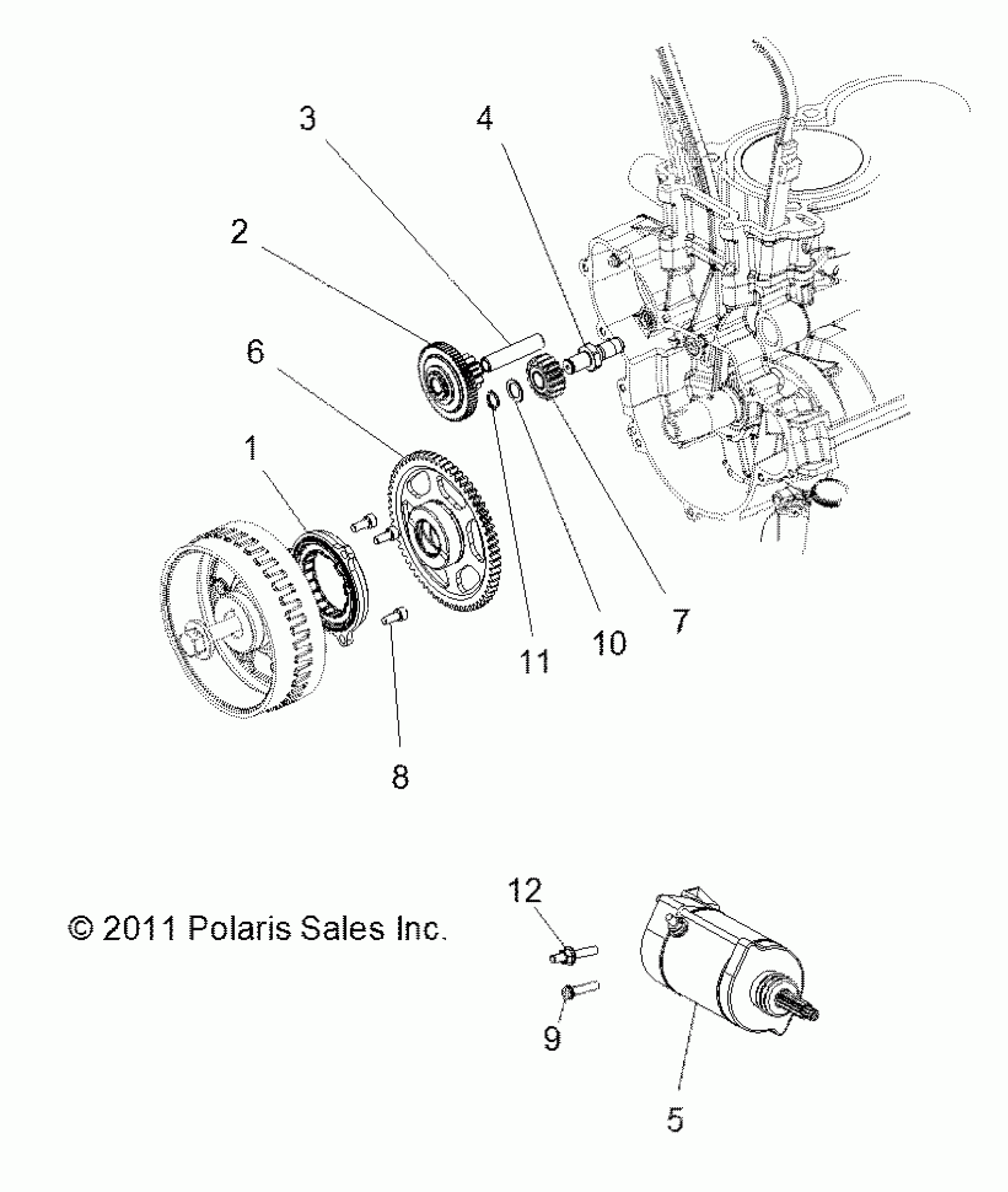

Polaris RZR 4 XP 900 - R12XT87AA/9EAS ENGINE, STARTER and DRIVE - R12XT87AA/9EAS (49RGRSTARTINGMTR12RZRXP4) Diagram

#

Description
Price

1

ASM., SPRAG CLUTCH, HUB, STARTER

1204184

$205.19

2

Asm., Torque Limit Gear, Bushed

1204294

Unavailable

3

Pin, Torque Limit Gear, Long

3022303

$23.81

4

Pin, Starter Intermediate Gear

3022304

Unavailable

5

Starter

4013245

Unavailable

6

Gear, Freewheel, 1 Way Clutch

6230467

$174.03

7

Gear, Intermediate, Starter, Bearing

6230478

$61.74

8

SCREW

7517431

$5.56

9

SCREW

7519297

$3.97

10

Washer, Thrust

7556566

$4.76

11

Ring, Retaining, External

7710645

$1.21

12

STUD, DOUBLE, END

7519237

$3.97
