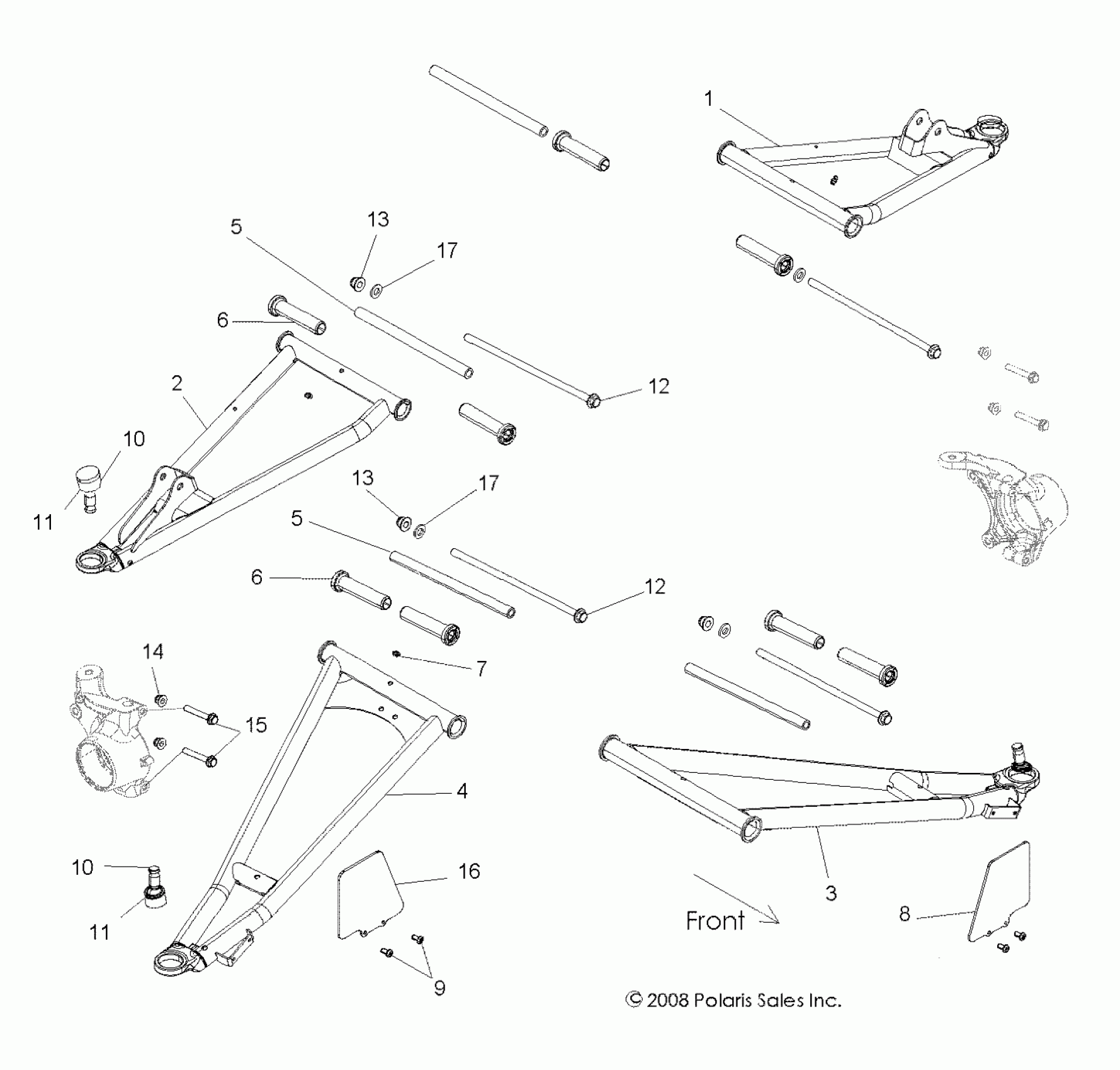

Polaris RZR 4/EPS RGE - R11XH76AW/AZ/XY76AA SUSPENSION, FRONT CONTROL ARMS - R11XH76AW/AZ/XY76AA (49RGRSUSPFRT09RZRS) Diagram

Arm, Control, Upper, Front, LT, Matte Black, LH Built 2/01/11 and Before]

1017575-458

Unavailable

Arm, Control, Upper, Front, LT, Matte Black, LH Built 2/02/11 and After]

1018209-458

$139.99

Arm, Control, Upper, Front, LT, Matte Black, RH Built 2/01/11 and Before]

1017576-458

Unavailable

Arm, Control, Upper, Front, LT, Matte Black, RH Built 2/02/11 and After]

1018210-458

$139.99

Arm, Control, Lower, Front, LT, Matte Black, LH Built 2/01/11 and Before]

1017577-458

Unavailable

Arm, Control, Lower, Front, LT, Matte Black, LH Built 2/02/11 and After]

1018211-458

$131.99

Arm, Control, Lower, Front, LT, Matte Black, RH Built 2/01/11 and Before]

1017578-458

Unavailable

Arm, Control, Lower, Front, LT, Matte Black, RH Built 2/02/11 and After]

1018212-458

$131.99

TUBE, PIVOT

5137104

Unavailable

TUBE, PIVOT

5137104

Unavailable

BUSHING, A-ARM, LONG

5436973

$5.19

ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY) [OPTIONAL]

1543326

$12.79

BUSHING, A-ARM, LONG

5436973

$5.19

ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY) [OPTIONAL]

1543326

$12.79

FITTING, ZERK

7080510

$5.59

Shield, CV, Front, Black, LH

5438404-070

$6.99

Screw

7512084

$1.49

Joint, Ball

7081666

$73.35

Joint, Ball

7081666

$73.35

RING, RETAINING

7710533

$2.39

RING, RETAINING

7710533

$2.39

SCREW, FLANGED

7519087

$13.59

SCREW, FLANGED

7519087

$13.59

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

NUT, NYLOK

7547405

$1.49

SCREW, FLANGE

7516733

$6.39

Shield, CV, Front, Black, RH

5438405-070

Unavailable

WASHER

7556153

$1.99

WASHER

7556153

$1.99
