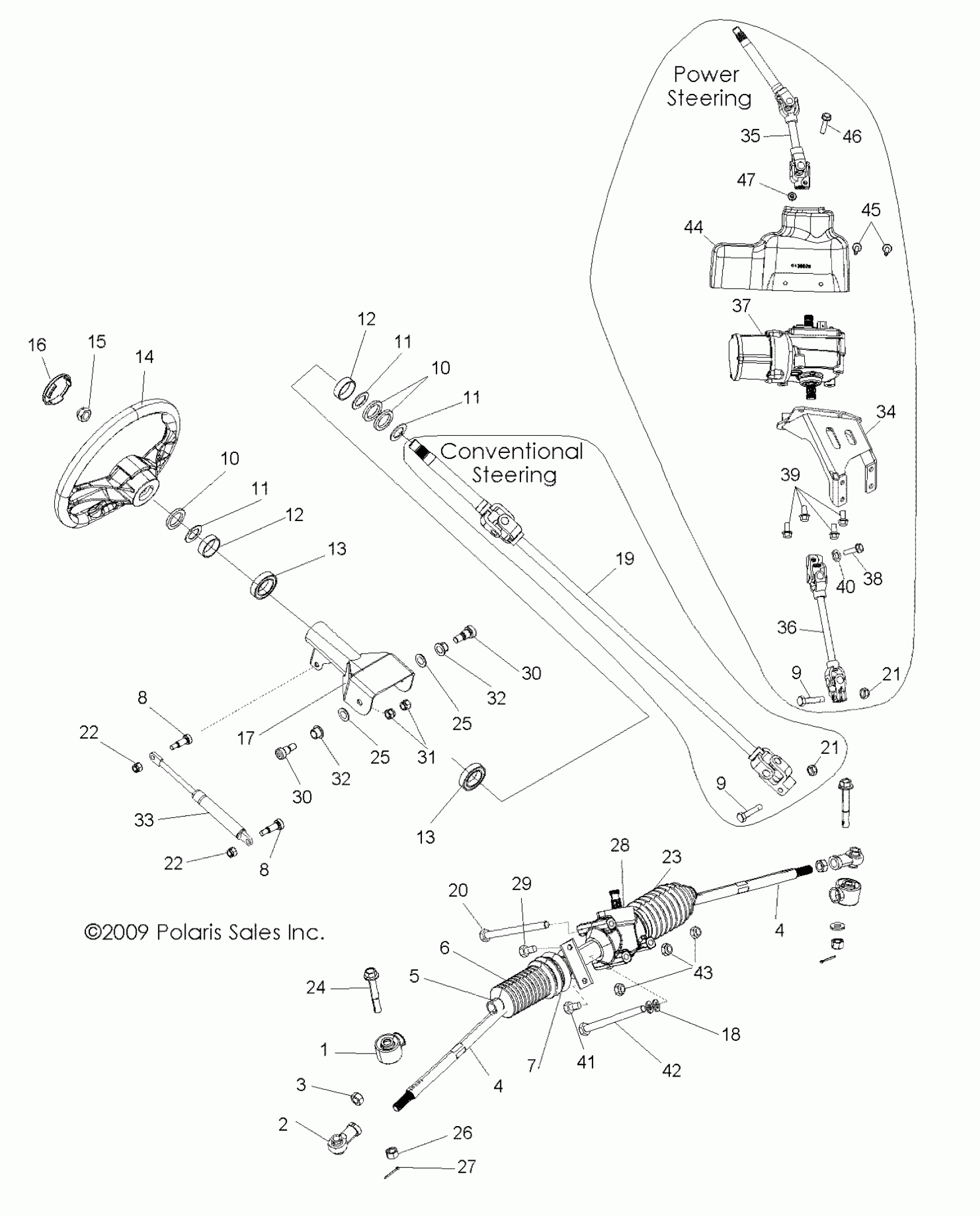

Polaris RZR 4/EPS RGE - R11XH76AW/AZ/XY76AA STEERING, STEERING ASM. - R11XH76AW/AZ/XY76AA (49RGRSTEERING10RZREPS) Diagram

#

Description
Price

1

Boot, Seal, Rod End

5411920

Unavailable

2

Rod End

7061054

Unavailable

3

Nut, Jam, LH

7547028

$2.39

4

TIE ROD, INNER

-------

Unavailable

4

TIE ROD, INNER

-------

Unavailable

5

CLAMP, BOOT, SMALL

7080978

$2.39

6

BOOT, PASSENGER, SIDE RACK

5412013

$55.99

7

CLAMP, BOOT, LARGE

7080979

$5.59

8

BOLT, SHOULDER

7518786

$2.39

8

BOLT, SHOULDER

7518786

$2.39

9

SCREW

7518644

$4.79

9

SCREW

7518644

$4.79

10

WASHER-NEOPREME,28 OD X 20 ID

7556482

$3.99

10

WASHER-NEOPREME,28 OD X 20 ID

7556482

$3.99

11

WASHER

7556483

$3.99

11

WASHER

7556483

$3.99

11

WASHER

7556483

$3.99

12

SPACER-STEERING SHAFT

5252796

$4.79

12

SPACER-STEERING SHAFT

5252796

$4.79

13

BEARING-STEERING

3514686

$9.59

13

BEARING-STEERING

3514686

$9.59

14

WHEEL-STEERING, 14"

1823623

$123.99

15

NUT

7547188

$5.59

16

CAP-STEERING WHEEL

5436536

$31.99

17

Asm., Tube, Pivot, Black [Incl. 13]

1017485

Unavailable

18

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

19

Shaft, Steering, Upper/Lower [XH76AW]

1823681

$251.99

20

BOLT [LOCK PATCH]

7518895

$3.99

21

NUT, NYLOK

7547385

$1.49

21

NUT, NYLOK

7547385

$1.49

22

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

22

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

23

BOOT, DRIVER SIDE, RACK

5412012

$59.99

24

Bolt

7517909

$5.59

25

WASHER

7555919

$4.99

25

WASHER

7555919

$4.99

26

Nut

7547177

$2.39

27

Pin, Cotter

7661203

$1.49

28

ASM., GEAR BOX, STEERING [INCL. 2-7,23]

1823443

$593.99

29

BOLT

7512325

$2.39

30

BOLT, SHOULDER

7517607

$5.59

30

BOLT, SHOULDER

7517607

$5.59

31

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

32

BUSHING-PEDAL PIVOT

5431107

$8.79

32

BUSHING-PEDAL PIVOT

5431107

$8.79

33

Asm., Shock, Oil Locking

7043523

$88.79

34

Mount, EPS, Black [XY76AA]

1017716-458

$119.99

35

Shaft, Steering, EPS, Upper [XY76AA]

1823749

$139.99

36

Shaft, Steering, EPS, Lower [XY76AA]

1823782

$159.99

37

Asm., Power Steering [XY76AA]

2411617

Unavailable

38

Bolt, Cap [XY76AA]

7517924

$4.79

39

Bolt [XY76AA]

7518558

$3.99

40

Washer, Spring Lock [XY76AA]

7552901

$1.49

41

BOLT

7512371

$4.79

42

BOLT

7515382

$2.39

43

NUT-5/16-18 NYLOK-Y

7542324

$1.49

44

Cover, EPS [XY76AA]

5438626

$31.99

45

Screw [XY76AA]

7519092

$1.49

46

Screw [XY76AA]

7516827

$6.39

47

NUT-M6 FLANGE,NYLOC [XY76AA]

7547274

$1.49
