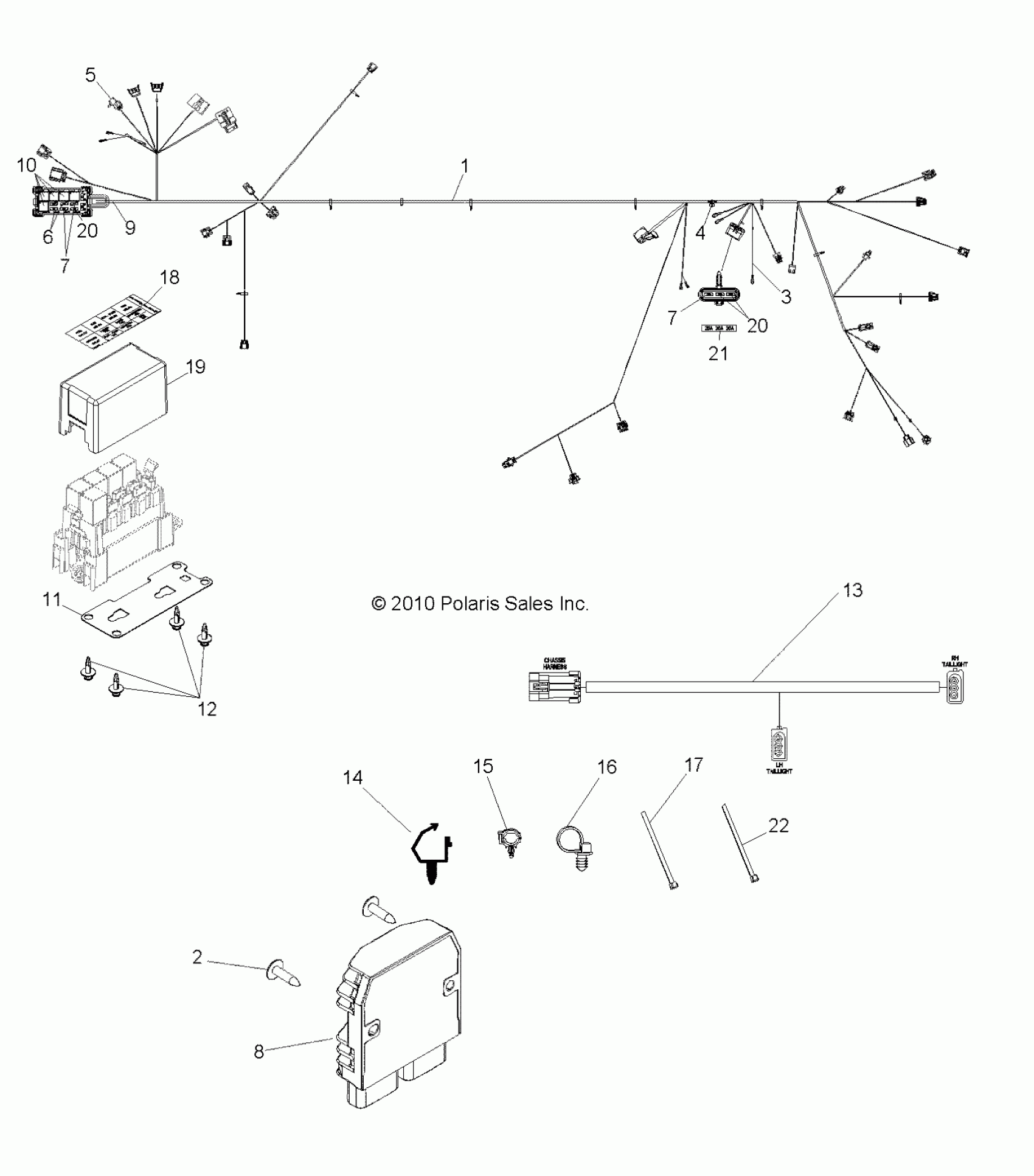

Polaris RZR 4/EPS RGE - R11XH76AW/AZ/XY76AA ELECTRICAL, WIRE HARNESS - R11XY76AA (49RGRHARNESS11RZR4EPS) Diagram

#

Description
Price

1

KIT, HARNESS, IAC

2878507

$135.99

1

KIT, HARNESS, PHASE SENSOR

2878504

$127.99

1

KIT, HARNESS, TPS

2878498

$113.32

1

KIT, HARNESS, COIL

2878501

Unavailable

1

KIT, HARNESS, REGULATOR, AC IN

2878505

$95.99

1

KIT, HARNESS, REGULATOR, DC OUT

2878506

$307.99

1

KIT, STATOR

2878508

Unavailable

1

KIT, HARNESS, FUEL PUMP/PFA

2878510

$99.99

1

KIT, HARNESS, ENGINE TEMP

2878496

$59.99

1

KIT, HARNESS, CPS

2878497

$111.99

1

KIT, HARNESS, T-BAP

2875542

Unavailable

1

KIT, HARNESS, HEADLIGHT

2878493

$47.99

1

Harness, Chassis, EPS [Incl. 3-7,9,10,19-21, All Kits, All Decals]

2411660

Unavailable

2

SCREW

7517685

$1.59

3

KIT, FUSIBLE LINK, 1 MM

2202670

$35.99

4

BREAKER-CIRCUIT,20 AMP,SEALED

2410881

$72.84

5

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

6

FUSE-IGNITION,10 AMP

2434016

$4.79

7

FUSE-PARK,20 AMP

2434017

Unavailable

7

FUSE-PARK,20 AMP

2434017

Unavailable

8

REGULATOR

4012941

$227.99

9

DIODE, 6 AMP

2411035

$51.99

10

RELAY-SPST,SERIES 303,SEALED

4011283

Unavailable

11

PLATE, FUSE MOUNT

5253675

$7.19

12

Rivet

7661855

$1.49

13

HARNESS, BOX

2411384

$63.99

14

CLIP, ROUTING

7670109

$2.39

15

Clip, Rosebud

4020149

$6.39

16

CABLE-TIE,DIA10-50MM,FIR-TREE

7081334

$1.59

17

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

18

DECAL, RELAY/FUSE BLOCK

7176911

Unavailable

19

COVER-RELAY/FUSE CENTER

5438758

$11.32

20

FUSE-MAIN,30 AMP

2434015

$7.19

20

FUSE-MAIN,30 AMP

2434015

$7.19

21

Decal, Power Fuse

7176910

$3.65

22

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41
