Description

Price

-

ASM., TRANSMISSION [INCL. ALL]

3235282

Unavailable

1

BEARING, BALL

3234549

$19.99

2

ASM., GEAR, SHAFT/PIN

3235294

$483.59

3

BEARING, BALL

3234502

$31.99

3

BEARING, BALL

3234502

$31.99

4

RING, RETAINING

3234552

$7.19

4

RING, RETAINING

3234552

$7.19

5

WASHER, THRUST

3234878

$12.79

5

WASHER, THRUST

3234878

$12.79

6

GEAR, REVERSE, 29T

3235291

$123.99

7

BEARING, NEEDLE

3234555

$19.99

8

BEARING, NEEDLE

3234536

$31.99

9

SCREW

7518172

$7.19

9

SCREW

7518172

$7.19

10

Kit, Transmission Housing [Incl. 4,12,13,22,45]

3234889

Unavailable

11

PLUG, DRAIN W/O-RING

5133731

$11.19

11

PLUG, DRAIN W/O-RING

5133731

$11.19

12

SEAL, OIL

3234551

$39.99

13

SEAL, OIL

3235073

$39.99

14

RING, RETAINING

3234547

$4.79

15

GEAR, MAIN PINION

3234548

$87.99

16

BEARING, CUP

3234556

$11.99

16

BEARING, CUP

3234556

$11.99

17

BEARING, CONE

3234557

$19.99

17

BEARING, CONE

3234557

$19.99

18

SHAFT, PINION, 20T

3235293

$155.99

19

GEAR, MAIN OUTPUT

3234559

$183.99

20

KIT, SHIM

3234560

$47.99

21

BUSHING, DOWEL

3234503

$6.39

21

BUSHING, DOWEL

3234503

$6.39

21

BUSHING, DOWEL

3234503

$6.39

22

SEAL, OIL

3610102

$31.99

23

CUP, TAPERED BEARING

3235079

$39.99

24

CONE, TAPERED BEARING

3235080

$47.99

25

SHAFT, PINION, 21T

3235292

$239.99

26

BEARING, CONE

3234565

$19.99

27

BEARING, CUP

3234566

$15.99

28

KIT, SHIM

3234567

$31.99

29

CAP, BEARING RETAINER

3234568

$51.99

30

BEARING, NEEDLE

3234561

$19.99

31

ASM., COVER, TRANSMISSION [INCL. 34]

3234496

$284.23

32

PLUG, FILL W/O-RING

5133736

$23.99

33

SCREW

3234571

$7.19

34

SEAL, OIL

3234570

$27.99

35

SCREW

3234618

$9.59

36

SCREW, FLANGE

3234511

$4.79

37

SHAFT, PINION, 24T

3235296

$327.99

38

RING, RETAINING

3234879

$12.79

39

PLATE, RETAINER

3234874

Unavailable

40

GEAR, CLUTCH, REVERSE, 47T

3235290

$155.99

41

BEARING, BALL

3234545

$31.99

42

FLANGE, PARK

3234877

$395.99

43

Screw

3234544

$5.59

44

SCREW

3234901

$9.59

45

STUD, PRESS FIT

7518378

$1.59

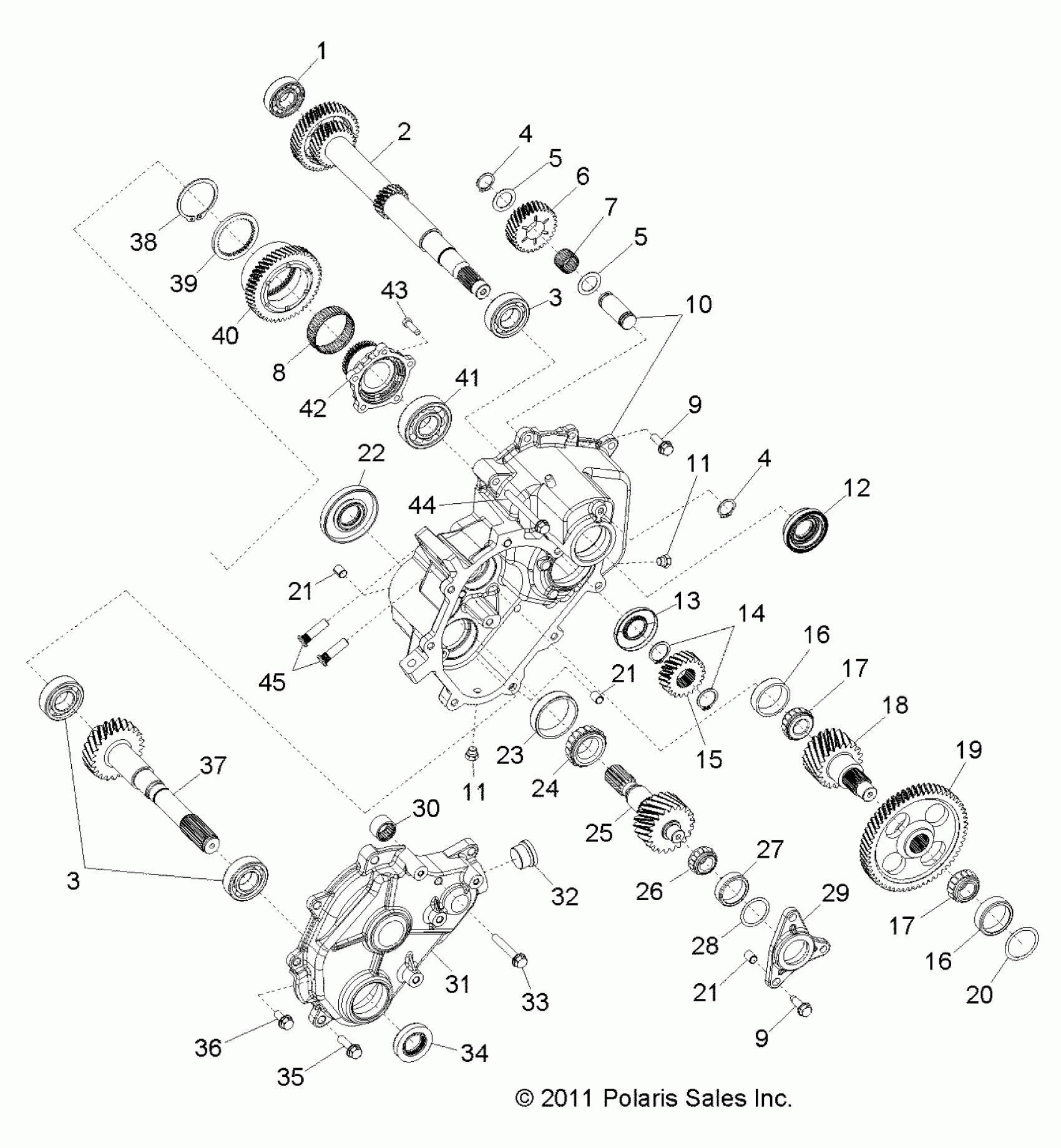

Polaris RZR 4/EPS RGE - R11XH76AW/AZ/XY76AA DRIVE TRAIN, MAIN GEARCASE INTERNALS 1 - R11XH76AW/AZ/XY76AA (49RGRTRANSINTL11RZRS) Diagram

ASM., TRANSMISSION [INCL. ALL]

BEARING, BALL

ASM., GEAR, SHAFT/PIN

BEARING, BALL

BEARING, BALL

RING, RETAINING

RING, RETAINING

WASHER, THRUST

WASHER, THRUST

GEAR, REVERSE, 29T

BEARING, NEEDLE

BEARING, NEEDLE

SCREW

SCREW

Kit, Transmission Housing [Incl. 4,12,13,22,45]

PLUG, DRAIN W/O-RING

PLUG, DRAIN W/O-RING

SEAL, OIL

SEAL, OIL

RING, RETAINING

GEAR, MAIN PINION

BEARING, CUP

BEARING, CUP

BEARING, CONE

BEARING, CONE

SHAFT, PINION, 20T

GEAR, MAIN OUTPUT

KIT, SHIM

BUSHING, DOWEL

BUSHING, DOWEL

BUSHING, DOWEL

SEAL, OIL

CUP, TAPERED BEARING

CONE, TAPERED BEARING

SHAFT, PINION, 21T

BEARING, CONE

BEARING, CUP

KIT, SHIM

CAP, BEARING RETAINER

BEARING, NEEDLE

ASM., COVER, TRANSMISSION [INCL. 34]

PLUG, FILL W/O-RING

SCREW

SEAL, OIL

SCREW

SCREW, FLANGE

SHAFT, PINION, 24T

RING, RETAINING

PLATE, RETAINER

GEAR, CLUTCH, REVERSE, 47T

BEARING, BALL

FLANGE, PARK

Screw

SCREW

STUD, PRESS FIT
