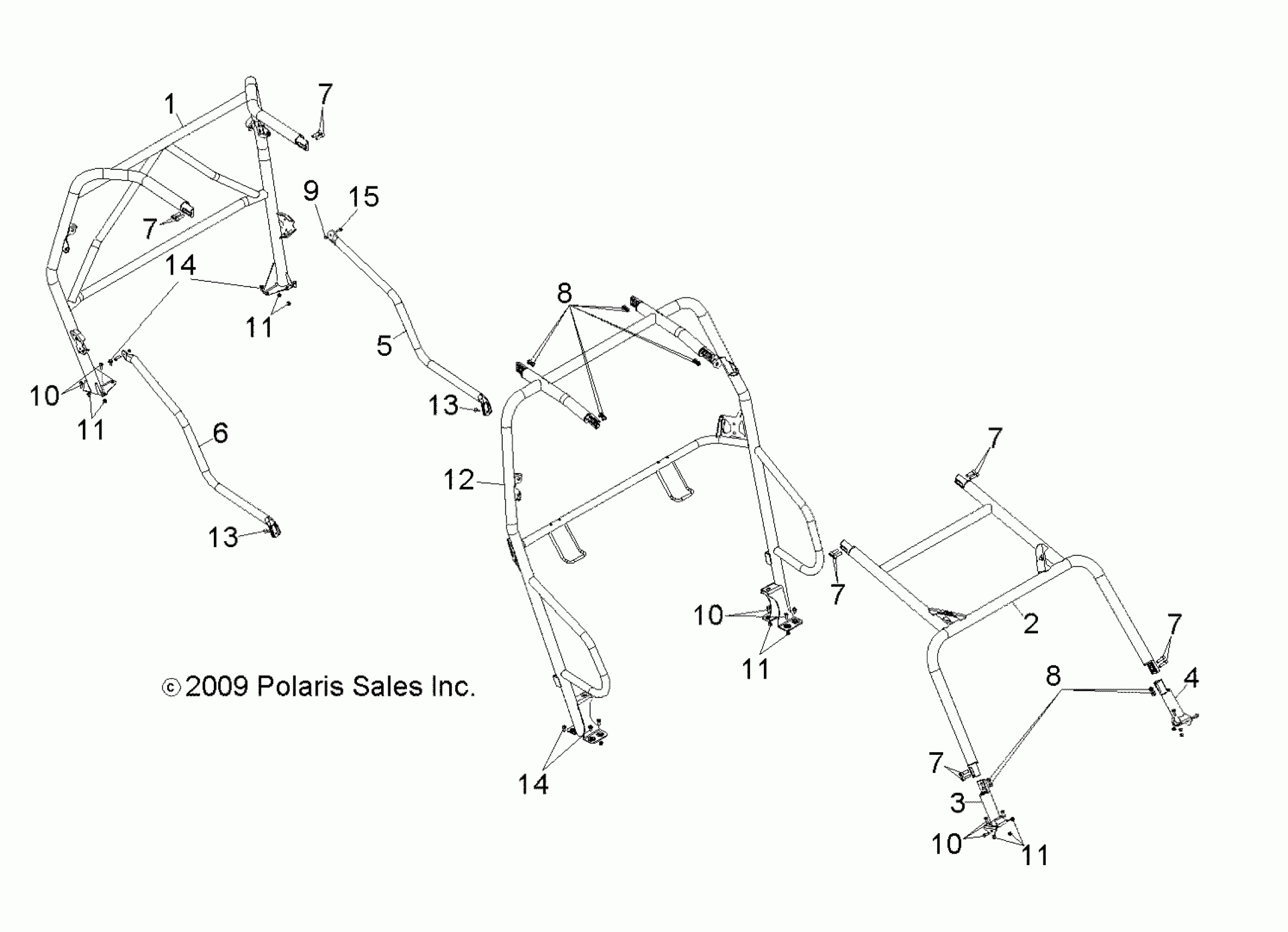

Polaris RZR 4/EPS RGE - R11XH76AW/AZ/XY76AA CHASSIS, CAB FRAME and SIDE BARS - R11XH76AW/AZ/XY76AA (49RGRCAB10RZRS4) Diagram

#

Description
Price

1

Frame, Cab, Rear, Matte Black [XH76AW]

1017785-458

Unavailable

1

Frame, Cab, Rear, Cloud Silver [XY76AA][XH76AZ]

1017785-385

Unavailable

2

Frame, Cab, Front, Matte Black [XH76AW]

1017783-458

Unavailable

2

Frame, Cab, Front, Cloud Silver [XY76AA][XH76AZ]

1017783-385

Unavailable

3

Base, Cab Frame, Front, Base, RH, Matte Black [XH76AW]

5632414-458

$127.59

3

Base, Cab Frame, Front, Base, RH, Cloud Silver [XY76AA][XH76AZ]

5632414-385

Unavailable

4

Base, Cab Frame, Front, Base, LH, Matte Black [XH76AW]

5632415-458

$127.59

4

Base, Cab Frame, Front, Base, LH, Cloud Silver [XY76AA][XH76AZ]

5632415-385

Unavailable

5

Tube, Cab Frame, Side, Rear, LH, Matte Black [Built 11/10/10 and After][XH76AW]

5336743-458

$193.59

5

Tube, Cab Frame, Side, Rear, LH, Cloud Silver [Built 11/03/10 and Before][XY76AA][XH76AZ]

5336188-385

Unavailable

5

Tube, Cab Frame, Side, Rear, LH, Matte Black [Built 11/09/10 and Before][XH76AW]

5336188-458

$219.99

5

Tube, Cab Frame, Side, Rear, LH, Cloud Silver [Built 11/04/10 and After][XY76AA][XH76AZ]

5336743-385

Unavailable

6

Tube, Cab Frame, Side, Rear, RH, Matte Black [Built 11/10/10 and After][XH76AW]

5336744-458

Unavailable

6

Tube, Cab Frame, Side, Rear, RH, Cloud Silver [Built 11/03/10 and Before][XY76AA][XH76AZ]

5336199-385

Unavailable

6

Tube, Cab Frame, Side, Rear, RH, Matte Black [Built 11/09/10 and Before][XH76AW]

5336199-458

Unavailable

6

Tube, Cab Frame, Side, Rear, RH, Cloud Silver [Built 11/04/10 and After][XY76AA][XH76AZ]

5336744-385

$99.99

7

SCREW

7517935

$2.39

7

SCREW

7517935

$2.39

7

SCREW

7517935

$2.39

7

SCREW

7517935

$2.39

7

SCREW

7517935

$2.39

7

SCREW

7517935

$2.39

8

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

8

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

9

NUT- M8X1.25, FLG, NYLOC-OLIVE D [Built 12/07/10 and After]

7547332

$3.99

9

Nut [Built 12/06/10 and Before]

7542153

$1.59

10

SCREW

7515398

$2.39

10

SCREW

7515398

$2.39

10

SCREW

7515398

$2.39

11

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

11

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

11

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

11

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

12

Frame, Cab, Mid, Cloud Silver [XY76AA][XH76AZ]

1017784-385

Unavailable

12

Frame, Cab, Mid, Matte Black [XH76AW]

1017784-458

Unavailable

13

SCREW

7517230

$1.49

13

SCREW

7517230

$1.49

14

SCREW

7515399

$1.49

14

SCREW

7515399

$1.49

15

Screw [Built 12/06/10 and Before]

7518280

$1.49

15

Bolt, Shoulder [Built 12/07/10 and After]

7517286

$5.22
