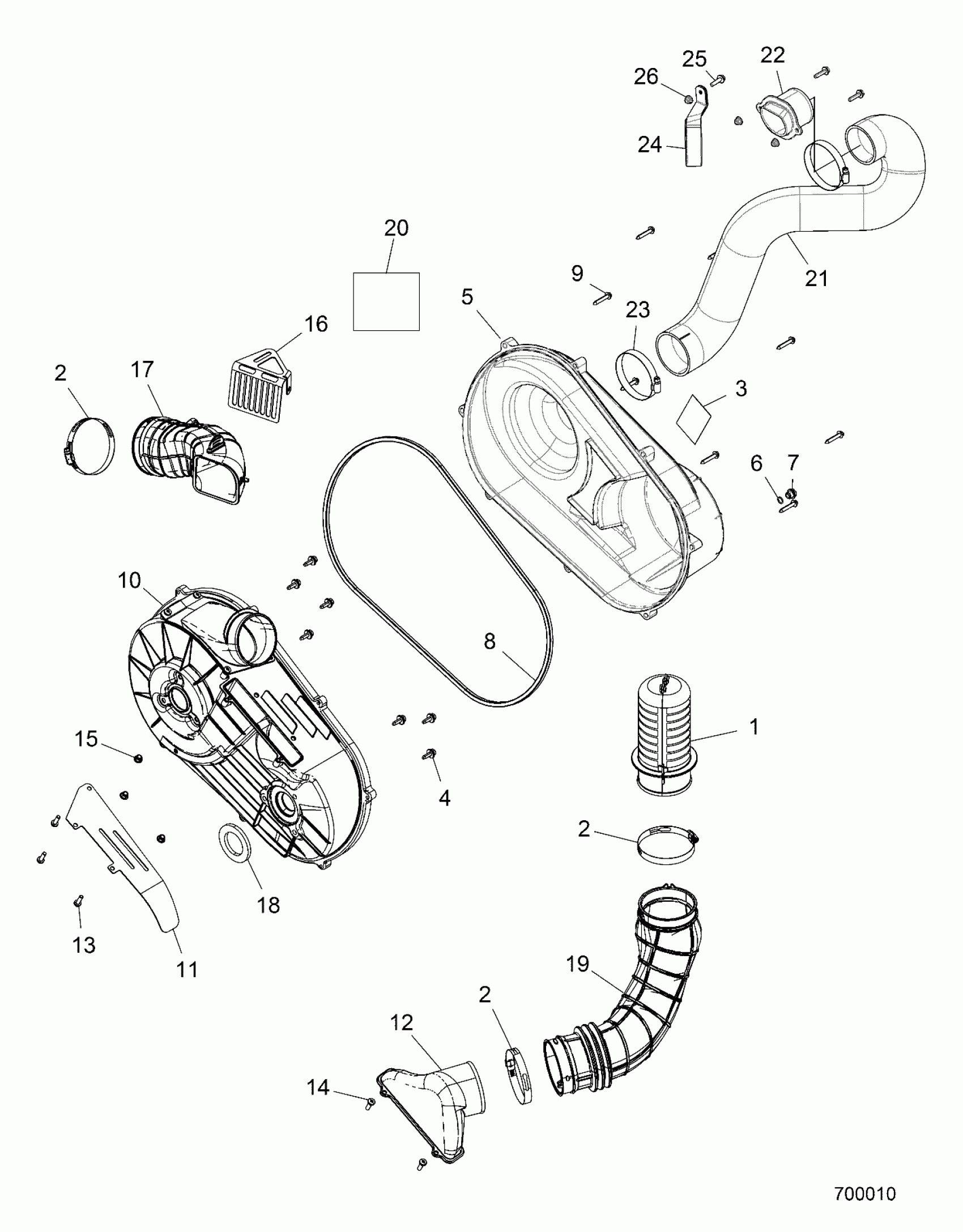

Polaris RZR 4 900 - Z15VCE87AT/AV DRIVE TRAIN, CLUTCH COVER AND DUCTING - Z15VCE87AT/AV (700010) Diagram

#

Description
Price

1

ASM., INTAKE, CLUTCH DUCT

2635411

$31.99

2

CLAMP-HOSE SLOTTED,92-100 DIA

7081969

$10.39

2

CLAMP-HOSE SLOTTED,92-100 DIA

7081969

$10.39

2

CLAMP-HOSE SLOTTED,92-100 DIA

7081969

$10.39

3

DECAL-BELT,WARNING/CHECK

7177469

Unavailable

4

ASM., BOLT AND WASHER

7519278

$4.79

5

ASM., COVER, CLUTCH, OUTER [INCL. 6,7]

2635611

$175.99

6

O RING-.364X.504X.07

5410542

Unavailable

7

PLUG-DRAIN,CLUTCH COVER

5434264

$5.59

8

SEAL, OUTER CLUTCH COVER

5521831

Unavailable

9

SCREW

7519330

$3.99

10

ASM., COVER, CLUTCH, INNER [INCL. 11-15]

2634863

$159.99

11

BRKT-GUARD,CLUTCH COVER

5256223

$35.99

12

DUCT, CLUTCH, AIR INLET

5450051

$43.99

13

SCREW

7518546

$3.19

14

SCREW

7519205

$1.59

15

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.99

16

BRACKET, SCREEN, BELT

5256732

$11.19

17

HOSE, CLUTCH, AIR OUTLET

5451061

$107.99

18

SEAL-COVER,PTO

5813708

$23.99

19

HOSE, CLUTCH, AIR INLET

5451062

$43.99

20

DECAL, INTAKE DUCT

7182087

$27.99

21

HOSE-CLUTCH INTAKE,SP

5415488

$91.99

22

BOOT-PLASTIC,INTAKE

5451776

$9.59

23

CLAMP-HOSE,3.75,SS

7080907

$11.19

24

CLAMP-P,LARGE

7082088

$13.59

25

BOLT-M6X1.0X25,HXHD,FLG,BLK

7518576

$3.19

26

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99
