Description

Price

1

FRAME, SEAT

1019447

$215.99

2

ASM-SEAT BACK,BLK/WHT [AV]

2686277

$355.99

2

ASM-SEAT BACK,BLK/WHITE [AT]

2685974

$359.99

3

ASM-SEAT BTM,BLK/WHT [AV]

2686280

$355.99

3

ASM., SEAT BOTTOM, BLACK/WHITE [AT]

2685981

Unavailable

4

SCREW

7515177

$3.19

5

ASM., BASE, SEAT SLIDER [AT][INCL. 6-14, QTY 6 OF 15]

2685704

$195.99

6

ASM., BASE, SEAT [INCL. 7-12]

2634889

$123.99

7

PLATE-LATCH,SEAT

5258647

$6.39

8

GROMMET, SEAT BASE

5413441

$3.99

9

HANDLE-SEAT BASE LATCH

5437121

$4.84

10

SPRING, LATCH, SEAT

7081466

$39.99

11

Screw

7517610

$1.59

12

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

13

BRACKET, SEAT SLIDER ADJUSTMENT PLATE

5257975

Unavailable

14

BOLT, CARRIAGE

7518994

$3.22

15

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

16

BRACKET, SEAT SLIDER MOUNTING PLATE

5257974

$63.99

17

BRACKET, SEAT SLIDER LEVER

5257976

Unavailable

18

SPRING

7044099

$5.59

19

BOLT, SHOULDER

7518786

$2.39

20

BOLT, SHOULDER

7518897

$1.59

21

TUBE, SPACER

5337939

Unavailable

22

SCREW

7519296

$1.59

23

WASHER, SPRING LOCK

7552801

$1.59

24

Washer, Flat

7555859

$1.49

25

LATCH, COVER PLATE, BLACK

5450510-070

$4.79

26

PAD-SEAT BASE,RZR,MP

5814087

Unavailable

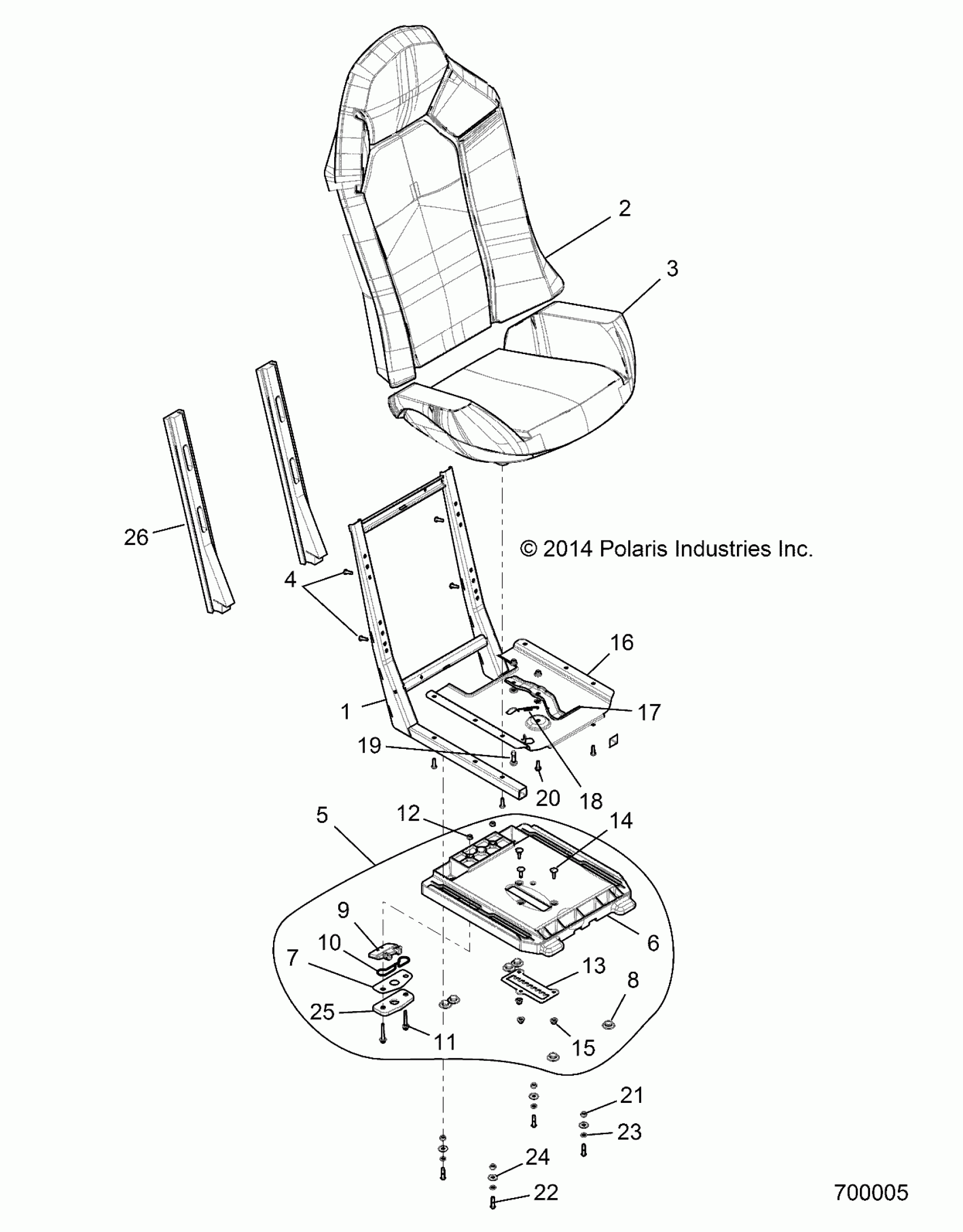

Polaris RZR 4 900 - Z15VCE87AT/AV BODY, SEAT ASM. AND SLIDER - Z15VCE87AT/AV (700005) Diagram

FRAME, SEAT

ASM-SEAT BACK,BLK/WHT [AV]

ASM-SEAT BACK,BLK/WHITE [AT]

ASM-SEAT BTM,BLK/WHT [AV]

ASM., SEAT BOTTOM, BLACK/WHITE [AT]

SCREW

ASM., BASE, SEAT SLIDER [AT][INCL. 6-14, QTY 6 OF 15]

ASM., BASE, SEAT [INCL. 7-12]

PLATE-LATCH,SEAT

GROMMET, SEAT BASE

HANDLE-SEAT BASE LATCH

SPRING, LATCH, SEAT

Screw

NUT-6MM X 1 NYLOK-Z

BRACKET, SEAT SLIDER ADJUSTMENT PLATE

BOLT, CARRIAGE

NUT- M8X1.25, FLG, NYLOC-OLIVE D

BRACKET, SEAT SLIDER MOUNTING PLATE

BRACKET, SEAT SLIDER LEVER

SPRING

BOLT, SHOULDER

BOLT, SHOULDER

TUBE, SPACER

SCREW

WASHER, SPRING LOCK

Washer, Flat

LATCH, COVER PLATE, BLACK

PAD-SEAT BASE,RZR,MP
