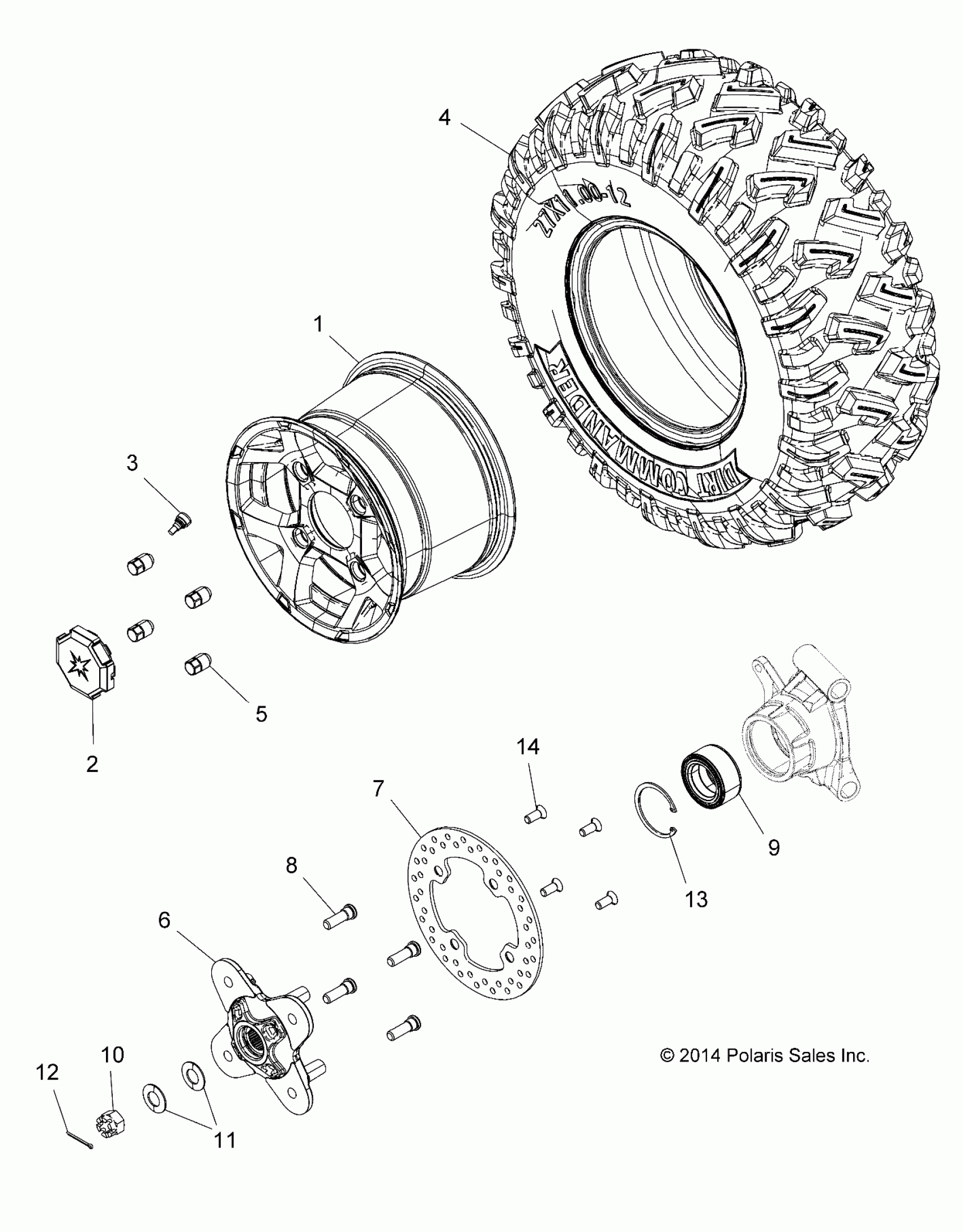

Polaris RZR 4 900 (R12) - Z16VCE87AB/AR/AE/AS WHEELS, REAR - Z16VCE87AB/AR/AE/AS (49RGRWHEELRR15RZR900) Diagram

#

Description
Price

1

RIM, REAR, 12X8, CAST

1522231-655

$138.79

2

CAP, RIM

1522216-655

$38.71

3

VALVE-RIM

1525017

$5.59

4

TIRE, REAR, 27X11-12

5414992

$182.39

5

NUT, WHEEL, TAPERED

7547489

$9.59

6

HUB, WHEEL, MATTE BLACK

5139978-458

Unavailable

7

DISC, BRAKE

5254999

$67.99

8

STUD, WHEEL

7519753

$4.79

9

BEARING, BALL, SEALED

3514822

Unavailable

9

BEARING-WHEEL,HD,44X72X33.1MM [OPTIONAL]

3515090

$63.99

10

NUT, CASTLE, ZINC/YELLOW

7547337

$1.99

11

WASHER, CONE

7555796

$7.99

12

PIN, COTTER

7661404

$4.79

13

RING, RETAINING, INTERNAL

7710440

$10.39

14

SCREW

7518978

$3.99
