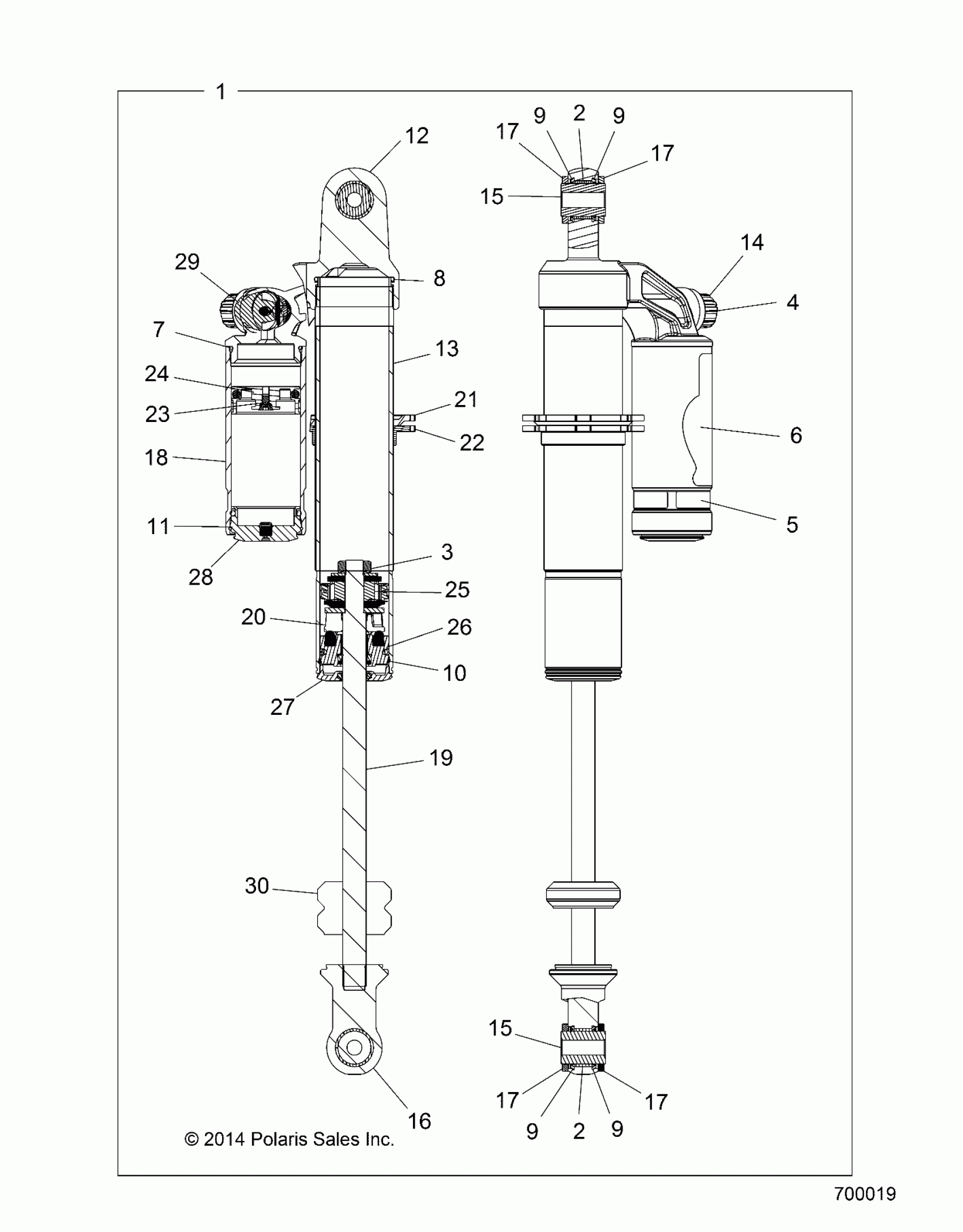

Polaris RZR 4 900 (R12) - Z16VCE87AB/AR/AE/AS SUSPENSION, REAR SHOCK - Z16VCE87AB/AR/AE/AS (700019) Diagram

#

Description
Price

1

SHOCK, REAR, PIGGY BACK [INCL. ALL]

7043897

$866.79

1

SHOCK, REAR, PIGGY BACK [INCL. ALL]

7044258

$866.79

2

BUSHING, EYELET

1501010

$19.99

2

BUSHING, EYELET

1501010

$19.99

3

NUT, CONTROL LOCK

1500871

Unavailable

4

SCREW

1501011

$13.59

5

DECAL, PERFORMANCE SERIES

1501012

$14.39

6

DECAL, RESERVOIR

1501013

$10.39

7

O-RING,.103W-1.737ID

1500623

$6.39

8

O-RING

1500510

$6.39

9

SEAL, WEATHER

1501014

$8.79

9

SEAL, WEATHER

1501014

$8.79

9

SEAL, WEATHER

1501014

$8.79

9

SEAL, WEATHER

1501014

$8.79

10

RING, RETAINING

1500236

$9.59

11

RING-RETAINING, WIRE 2.050

1501015

$9.59

12

BODY, CAP, PIGGY BACK, RH

1501017

$215.59

12

BODY, CAP, PIGGY BACK, LH

1501016

$215.99

13

BODY

1501018

$70.39

14

KNOB, LOW SPEED

1501019

$10.39

15

SLEEVE

1501087

$23.99

15

SLEEVE

1501087

$23.99

16

EYELET, SHAFT

1501089

$48.87

17

EYELET, SPACER

1501088

$6.39

17

EYELET, SPACER

1501088

$6.39

17

EYELET, SPACER

1501088

$6.39

17

EYELET, SPACER

1501088

$6.39

18

RESEVOIR, 5' THD

1501023

$57.19

19

SHAFT

1501024

$99.99

20

SPACER, SHAFT

1501025

$9.59

21

RING, PRELOADED, BACK

1500872

$43.99

22

RING, PRELOAD

1500873

$47.99

23

SCREW, W/O-RING

1500161

Unavailable

24

ASM., PISTON, FLOAT

1501026

$48.39

25

PISTON

1500870

$63.99

26

ASM., BEARING

1500940

$101.19

27

ASM., BEARING, CAP

1500835

$96.79

28

ASM., END CAP

1501027

$101.19

29

ASM., DAMPING, ADJUSTER LSC

1501006

$114.39

30

BUMPER, BLACK

1501028

$26.39
