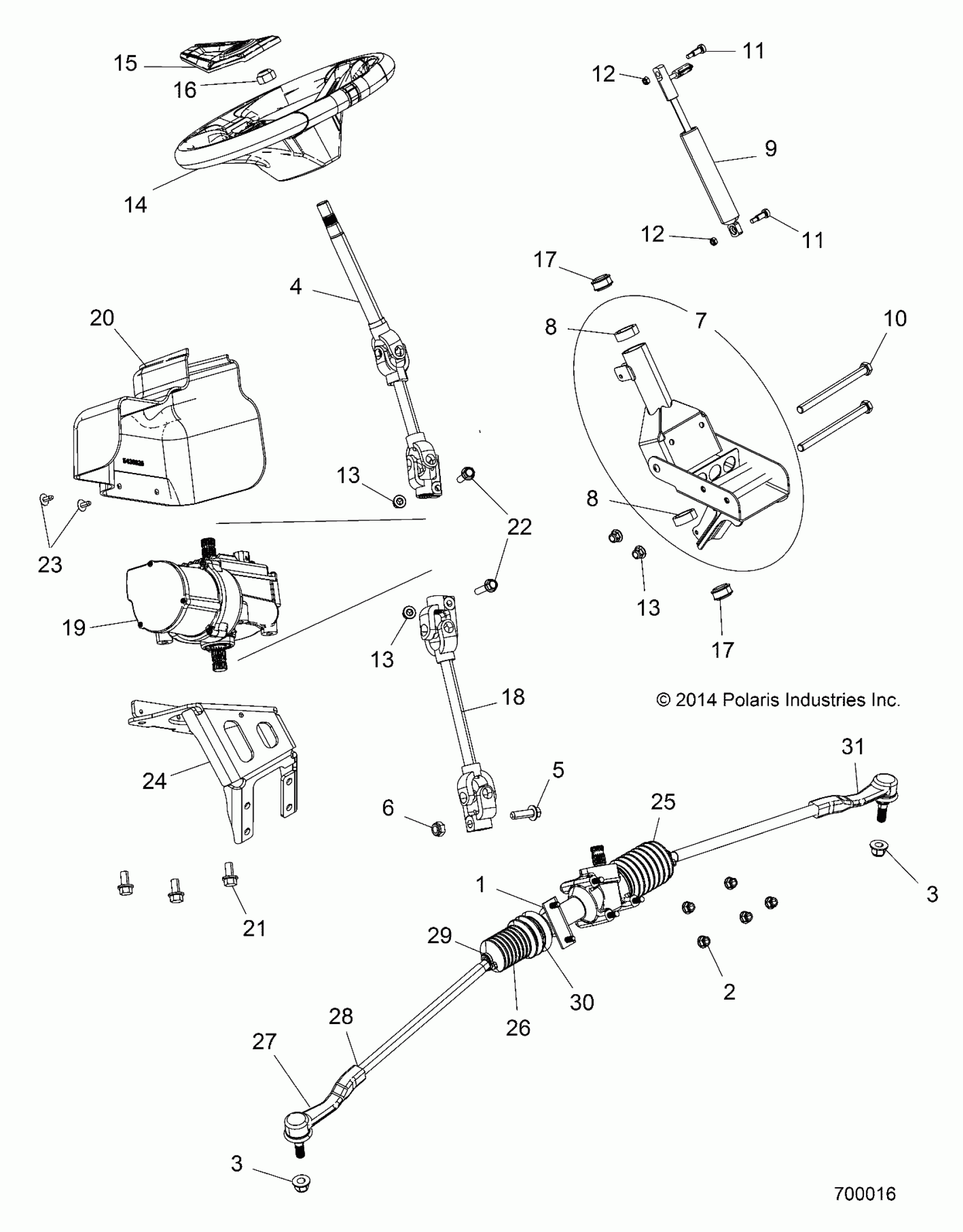

Polaris RZR 4 900 (R12) - Z16VCE87AB/AR/AE/AS STEERING, POWER STEERING ASM. - Z16VCE87AB/AR/AE/AS (700016) Diagram

#

Description
Price

1

ASM., GEAR BOX, STEERING [INCL 25-31]

1823994

Unavailable

2

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

3

NUT, FLANGE, NYLOCK

7547334

$4.79

3

NUT, FLANGE, NYLOCK

7547334

$4.79

4

SHAFT, STEERING, UPPER

1823891

$143.99

5

SCREW

7518644

$4.79

6

NUT

7547385

$1.49

7

ASM-TILT,STEERING,RVTD,M10,BLK [INCL. 8]

1824420-458

$143.99

8

BEARING-STEERING

3514686

$9.59

8

BEARING-STEERING

3514686

$9.59

9

ASM-SHOCK,OIL LOCKING,MACH

7044098

$95.99

10

BOLT

7518665

$13.59

11

SCR-SH-M6X1.0X11 12.9 ZB SHB

7519980

$7.19

11

SCR-SH-M6X1.0X11 12.9 ZB SHB

7519980

$7.19

12

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

12

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

13

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

13

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

13

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

14

WHEEL, STEERING

1824014

Unavailable

15

CAP, STEERING WHEEL

5450255-656

$31.99

16

NUT

7547506

$4.39

17

BUSHING-STEERING

7556675

$14.95

17

BUSHING-STEERING

7556675

$14.95

18

SHAFT, STEERING, LOWER, EPS

1824012

$127.99

19

ASM., POWER STEERING

2413041

$1,971.19

20

COVER, EPS

5438626

$31.99

21

BOLT

7518558

$3.99

22

SCREW

7519052

$1.59

23

SCREW

7519092

$1.49

24

MOUNT, EPS, BLACK

5257531-329

$119.99

25

BELLOWS, D.S.

5412012

$59.99

26

BELLOWS, P.S.

5412013

$55.99

27

ROD-END,TAPERED,RH

7061216

$79.99

28

NUT, JAM

2205058

$23.99

29

BELLOWS, CLAMP SMALL

7080978

$2.39

30

BELLOWS,CLAMP LARGE

7080979

$5.59

31

ROD-END,TAPERED,LH

7061215

$79.99
