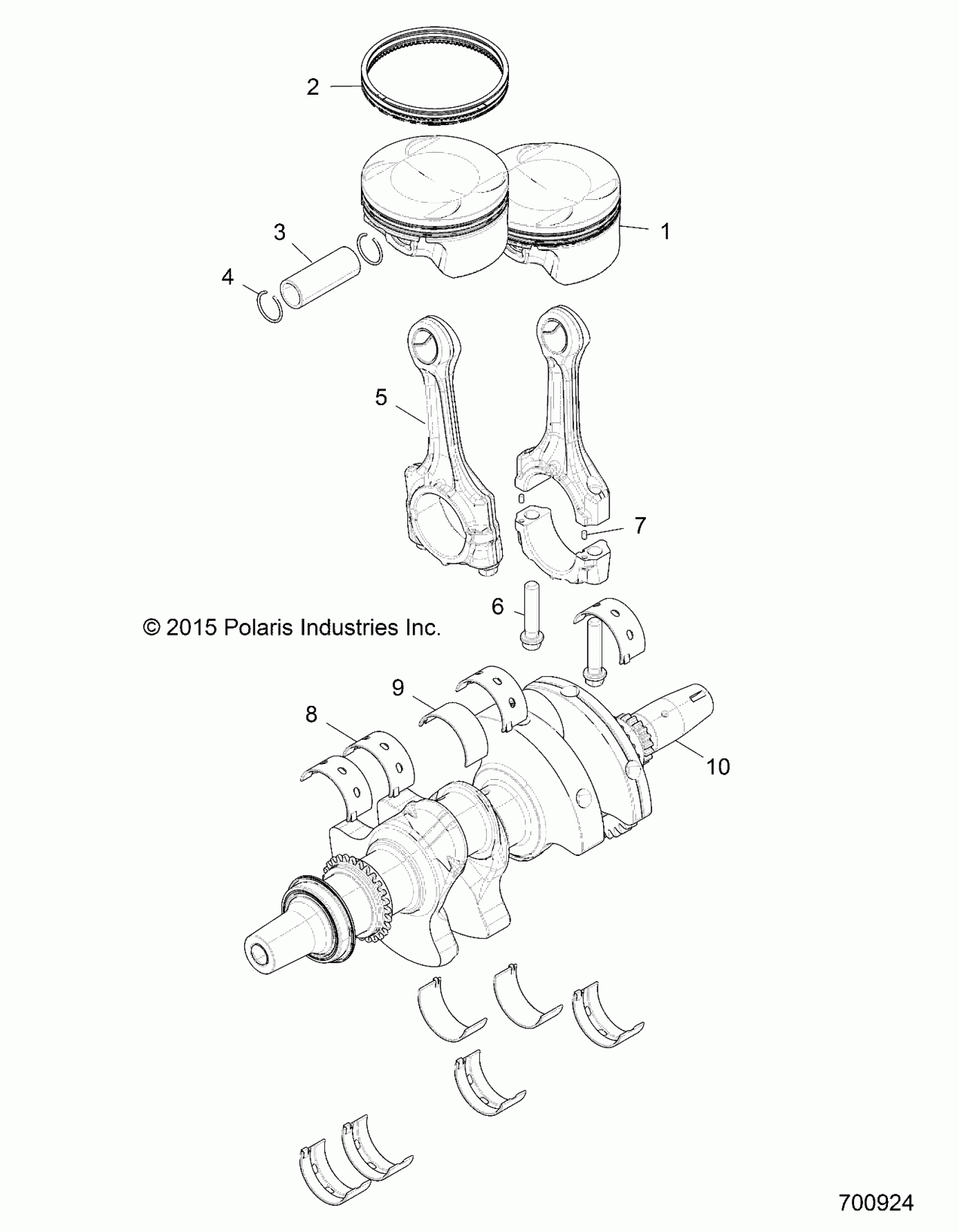

Polaris RZR 4 900 (R12) - Z16VCE87AB/AR/AE/AS ENGINE, CRANKSHAFT and PISTON - Z16VCE87AB/AR/AE/AS (700924) Diagram

KIT-PISTON 3022567 [INCL. 1 PISTON, 1 PIN, 1 RING SET, 2 CLIPS]

2205244

$189.99

KIT-PISTON RINGS [INCL. 1 TOP, 1 MIDDLE AND 1 BOTTOM RING]

2205245

Unavailable

PIN-PISTON

3022358

$23.99

RING, RETAINING

3022413

$3.99

ASM., CONNECTING ROD, FORGED [INCL. ROD, CAP, 6][IF BUILT BEFORE 10/19/15]

1204473

Unavailable

ASM., CONNECTING ROD, FORGED [INCL. ROD, CAP, 6,7][IF BUILT AFTER 10/20/15]

3022893

$203.99

SCREW, CONNECTING ROD [USED W/ 1204473][IF BUILT BEFORE 10/19/15]

7519310

Unavailable

SCREW, CONNECTING ROD [USED W/ 3022893][IF BUILT AFTER 10/20/15]

7520349

$11.19

PIN-DOWEL-SOL-M3X5 SUJ2

7661972

$10.39

BEARING, MAIN, WHITE

3514662-001

$9.59

BEARING-MAIN,G-90,41MM,BLU

3514662-002

$9.59

BEARING-MAIN,G-90,41MM,GRN

3514662-003

$9.59

BEARING-MAIN,G-90,41MM,YLW

3514662-004

$9.59

BEARING-MAIN,G-90,41MM,RED

3514662-005

$9.59

BEARING, CONNECTING ROD, WHITE

3514663-001

$8.79

BEARING, CONNECTING ROD, BLUE

3514663-002

$8.79

BEARING, CONNECTING ROD, GREEN

3514663-003

$8.79

BEARING, CONNECTING ROD, YELLOW

3514663-004

$8.79

ASM., CRANKSHAFT

1204553

Unavailable
