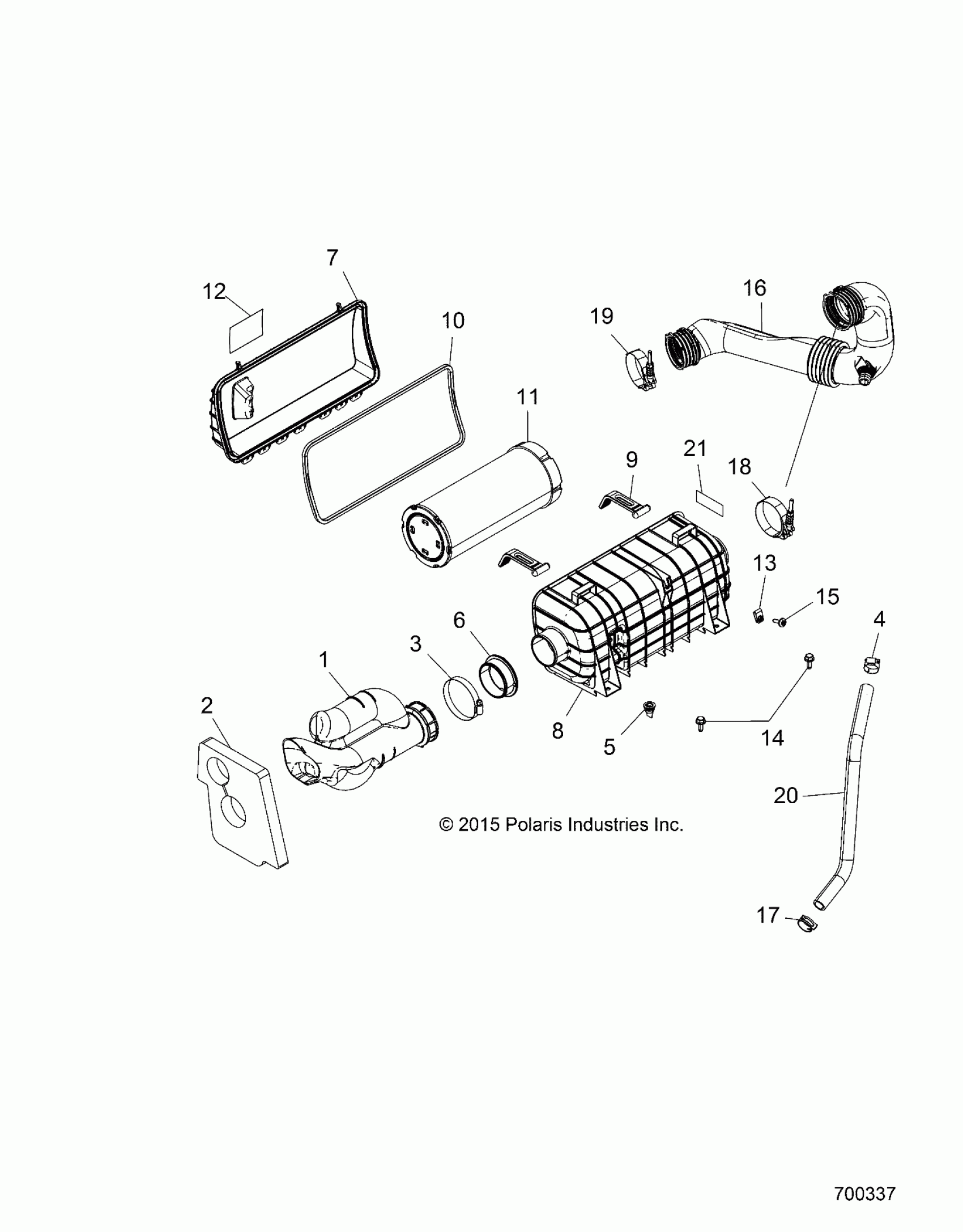

Polaris RZR 4 900 (R12) - Z16VCE87AB/AR/AE/AS ENGINE, AIR INTAKE SYSTEM - Z16VCE87AB/AR/AE/AS (700337) Diagram

#

Description
Price

1

DUCT, INTAKE, AIRBOX

5450781

$62.92

2

PANEL, INTAKE SEPARATOR

5814168

$11.32

3

CLAMP, HOSE

7080439

$9.52

4

CLAMP, HOSE

7080614

$7.14

5

PLUG-DRAIN

5414472

$5.56

6

SEAL, INTAKE, AIRBOX

5415155

$5.65

7

COVER, AIRBOX

5451097

$66.49

8

AIRBOX

5451098

$174.27

9

STRAP, AIRBOX

5451099

$4.84

10

SEAL, AIRBOX

5814054

$33.24

11

FILTER-AIR [STD]

7082115

$35.71

11

K-FILTER-AIR,PERF,RZX [OPT]

2881063

$79.99

12

DECAL-CAUT.AIR BOX

7182652

Unavailable

13

NUT

7547674

$1.19

14

BOLT

7518555

$2.38

15

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.97

16

ASM., INTAKE DUCT [INCL 18-19]

1240871

$227.52

17

SPRINGBAND, CLAMP

7080841

$7.14

18

CLAMP, HOSE, T-BOLT, 72 DIA

7081978

$35.71

19

CLAMP, HOSE, T-BOLT, 66.4 DIA

7081979

$35.71

20

HOSE, VENT

5414896

$39.99

21

DECAL-INTAKE DUCT

7182087

$32.37
