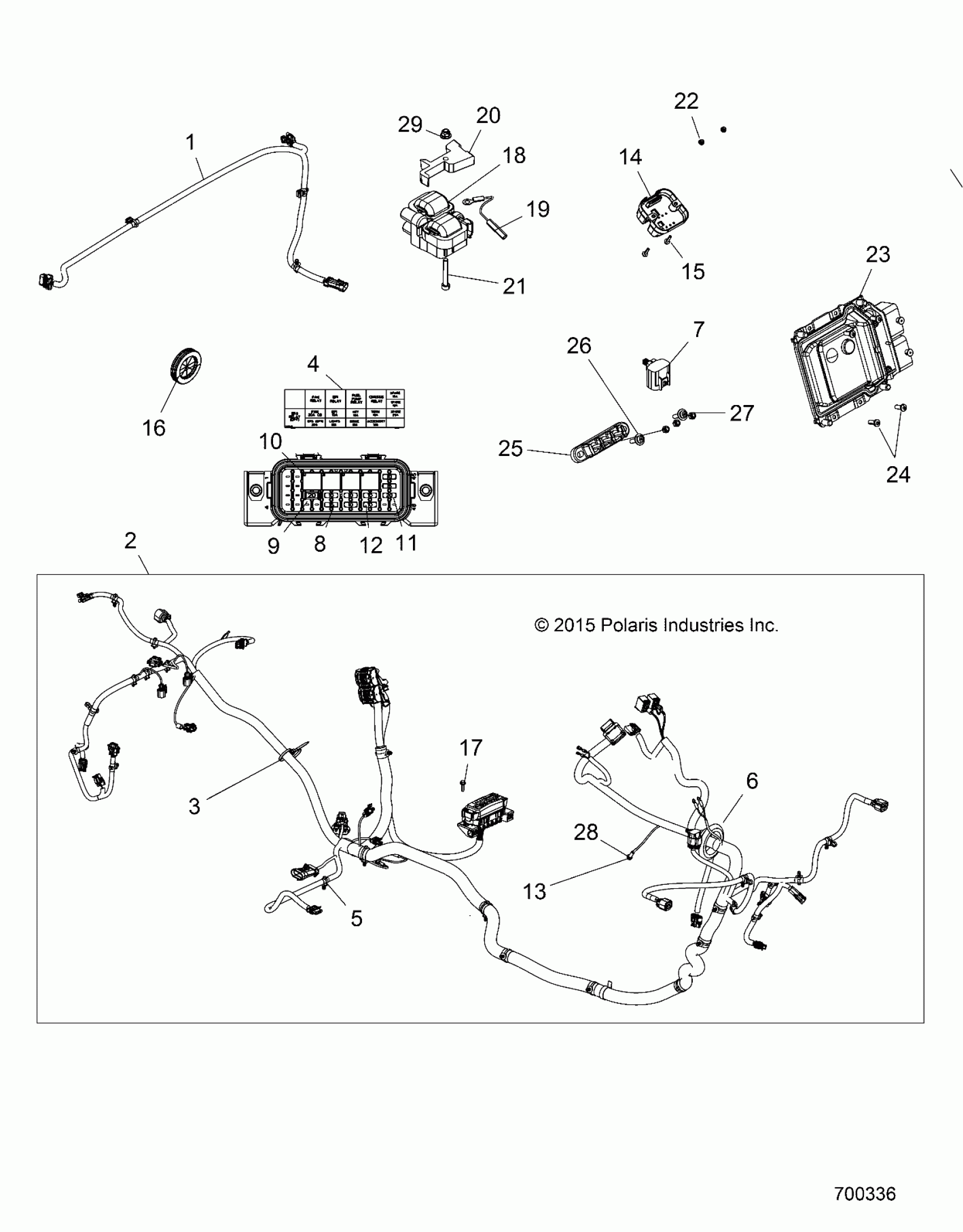

Polaris RZR 4 900 (R12) - Z16VCE87AB/AR/AE/AS ELECTRICAL, WIRE HARNESS - Z16VCE87AB/AR/AE/AS (700336) Diagram

#

Description
Price

1

HARNESS, BOX

2412287

$51.99

2

HARNESS, CHASSIS, EPS [INCL 3-13, 28]

2413226

Unavailable

3

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.79

4

LABEL-FUSE BOX

7180883

Unavailable

5

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

6

GROMMET-65MM,BLK

5813954

$7.19

7

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

8

FUSE-MINI BLADE,15 AMP

2410280

Unavailable

9

BREAKER-CIRCUIT,20 AMP

4011372

$40.46

10

RELAY-SPST,SERIES 303,SEALED

4011283

Unavailable

11

FUSE-PARK,20 AMP

2434017

Unavailable

12

FUSE-IGNITION,10 AMP

2434016

$4.79

13

LED-PANEL MNT,12V,BLUE

2413217

$51.99

14

REGULATOR, 3 PHASE, 50 AMP, SERIES

4014856

Unavailable

15

SCREW

7519202

$3.99

16

GROMMET

5414440

$7.19

17

BOLT, FLANGE, BLACK

7518576

$3.19

18

COIL-EFI

4010425

Unavailable

19

JUMPER ,COIL GROUND

4014422

$27.99

20

SPACER-COIL MOUNT

5436577

$3.99

21

SCREW

7518780

$3.99

22

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

23

ECM, NO START

4014125

$694.99

24

SCREW

7519091

$3.19

25

BLOCK-TERMINAL,3 POST,TALL

4015778

$27.99

26

Screw

7518196

$1.49

27

NUT

7547341

$1.49

28

CLIP-ROUTING,DIN BOX

7082020

$5.59

29

NUT-M6 FLANGE,NYLOC

7547274

$1.49
