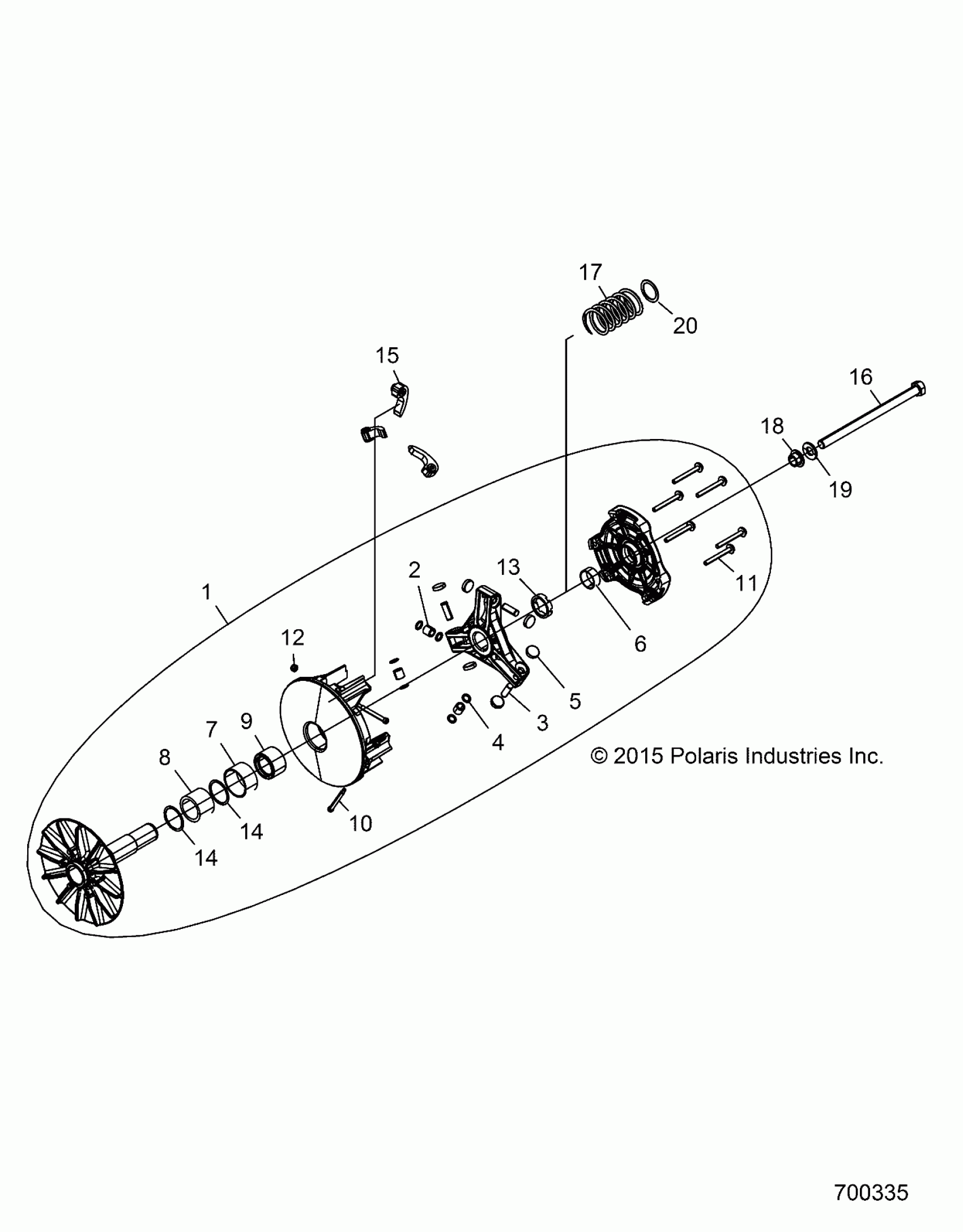

Polaris RZR 4 900 (R12) - Z16VCE87AB/AR/AE/AS DRIVE TRAIN, PRIMARY CLUTCH - Z16VCE87AB/AR/AE/AS (700335) Diagram

#

Description
Price

1

ASM., DRIVE CLUTCH, BASIC [INCL. 2-14]

1323308

Unavailable

2

ASM-ROLLER AND BUSHING

1321622

$32.37

3

PIN-ROLLER

5020422

$2.39

4

WASHER-CLUTCH,SPIDER ROLLER

5438247

$1.59

5

BUTTON, CLUTCH

5450940

$7.99

6

COVER, BEARING

3576510

$9.59

7

BEARING

3514492

$31.99

8

BEARING-NEEDLE

3514609

$35.99

9

SPACER-CLUTCH

5633000

$27.99

10

BOLT, SHOULDER

7512266

$3.19

11

SCREW

7518349

$1.49

12

NUT, FLEX LOC

7541906

$3.19

13

NUT, JAM

7547498

$23.99

14

WASHER-CLUTCH,VESPEL

7556335

$6.39

14

WASHER-CLUTCH,VESPEL

7556335

$6.39

15

WEIGHT-SHIFT,29-59,PM

5633319

$31.99

16

SCREW

7519208

Unavailable

17

SPRING-CLUTCH,58-105

7044465

$19.99

18

WASHER-CLUTCH RET,M14

5132441

$23.99

19

WASHER

7556003

$6.39

20

SPACER-CLUTCH,LIMITER

5438963

$3.99
