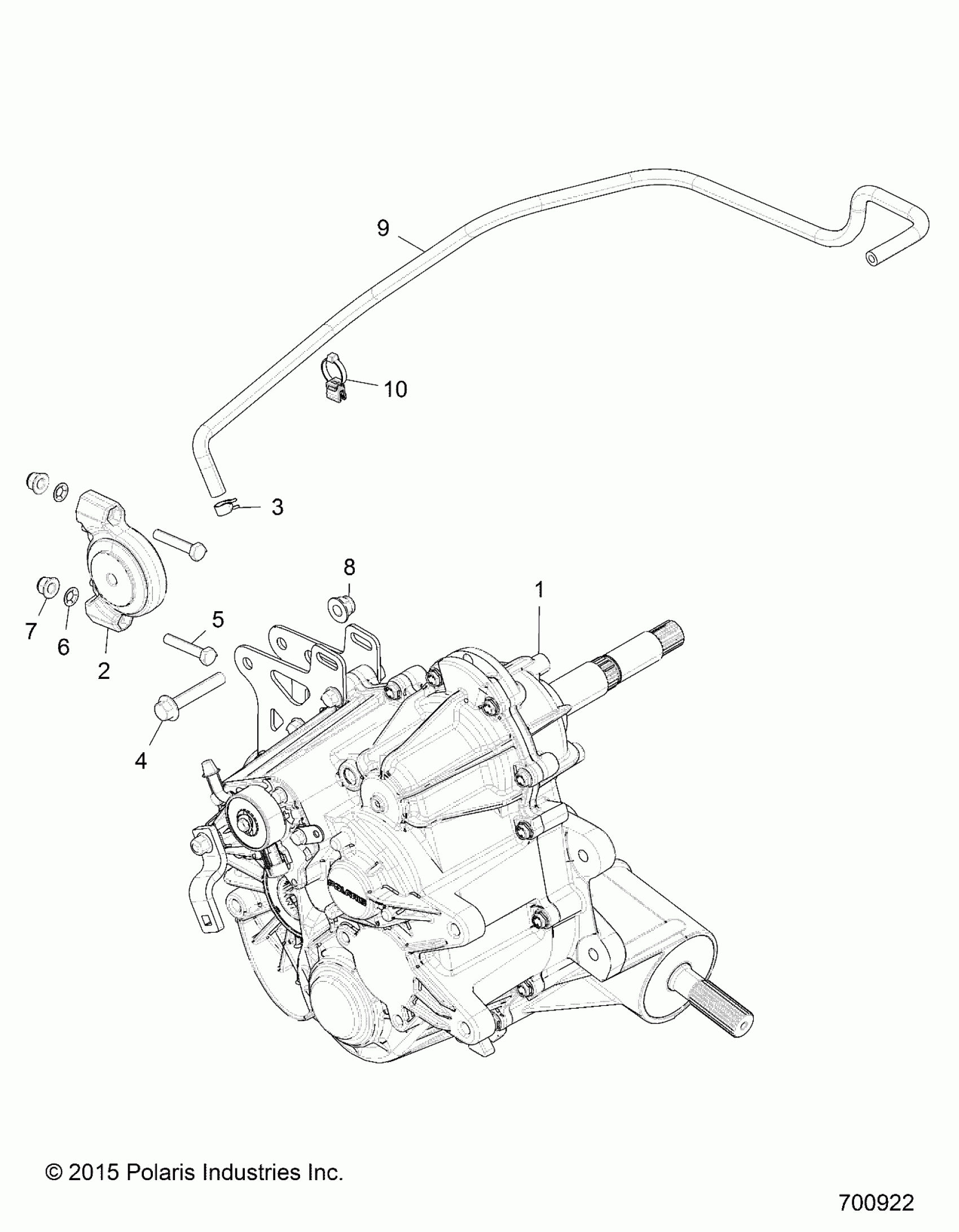

Polaris RZR 4 900 (R12) - Z16VCE87AB/AR/AE/AS DRIVE TRAIN, MAIN GEARCASE MOUNTING - Z16VCE87AB/AR/AE/AS (700922) Diagram

#

Description

Price

1

ASM., GEARCASE, COMPLETE

1333515

$2,587.19

2

MOUNT-ISOLATOR,DRIVELINE

1332955

$71.99

3

CLAMP-HOSE, (LARGE GREEN) [IF BUILT BEFORE 11/9/15]

7080307

$1.49

3

CLAMP-HOSE, 17/32, GREEN [IF BUILT AFTER 11/10/15]

7081432

$3.99

4

BOLT

7518563

$3.19

5

SCREW

7519097

$1.59

6

NUT

7547030

$4.79

7

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

8

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

9

LINE, FUEL [IF BUILT BEFORE 11/9/15]

8450003-1525

Unavailable

9

FUEL LINE 1/4"SAE #30R7,100CM [IF BUILT AFTER 11/10/15]

8450040-100

$59.99

10

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59
