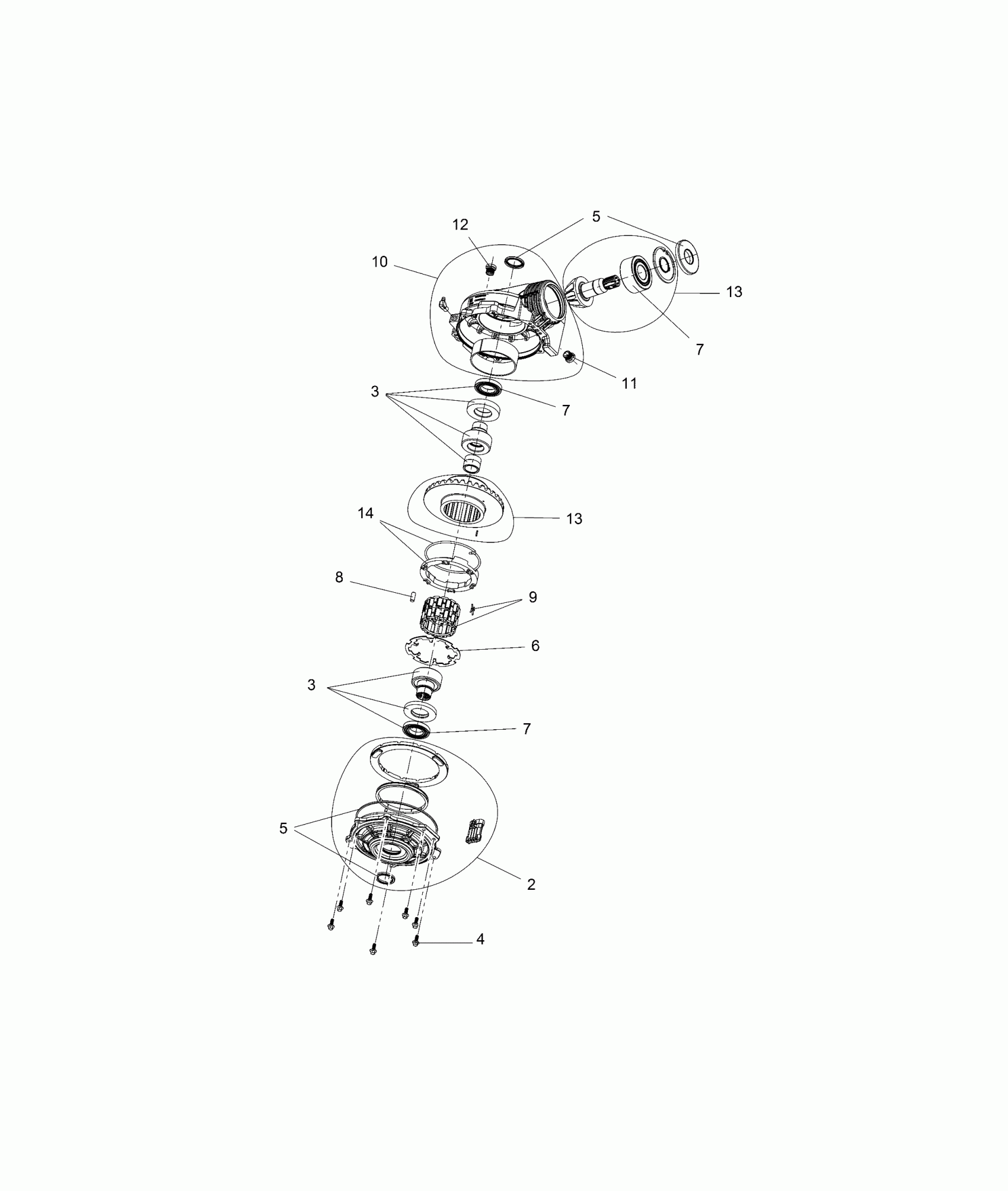

Polaris RZR 4 900 (R12) - Z16VCE87AB/AR/AE/AS DRIVE TRAIN, FRONT GEARCASE INTERNALS (IF BUILT BEFORE 9/2/15) - Z16VCE87AB/AR/AE/AS (49RGRTRANS151000) Diagram

#

Description
Price

-

ASM., GEARCASE, FRONT [INCL. ALL]

1333344

$2,099.99

2

ASM., COVER OUTPUT

3235481

$580.94

3

ASM., OUTPUT HUB

3235622

$465.49

3

ASM., OUTPUT HUB

3235622

$465.49

4

COVER-FASTNERS [INCL. 7 FASTENERS]

3235483

$62.92

5

COMPLETE SEAL REPAIR

3235484

$109.24

5

COMPLETE SEAL REPAIR

3235484

$109.24

6

PLATE, 4WD ARMATURE

3235485

$113.32

7

BEARING

3235174

$94.99

7

BEARING

3235174

$94.99

7

BEARING

3235174

$94.99

8

K-CLUTCH ROLLS [INCL. FULL ROLLER SET OF 24]

3235624

$6.46

9

ASM-ROLL CAGE [INCL. ROLL CAGE AND 24 H-CLIPS]

3235625

$174.03

10

ASM., GEARCASE

3235488

$809.99

11

KIT-PLUG,DRAIN

2203738

$42.74

12

KIT-PLUG,FILL

2203739

$44.51

13

ASM., GEAR HOUSING AND PINION GEAR

3235489

Unavailable

13

ASM., GEAR HOUSING AND PINION GEAR

3235489

Unavailable

14

TORSION SPRING & RETAINER

3235490

$85.49
