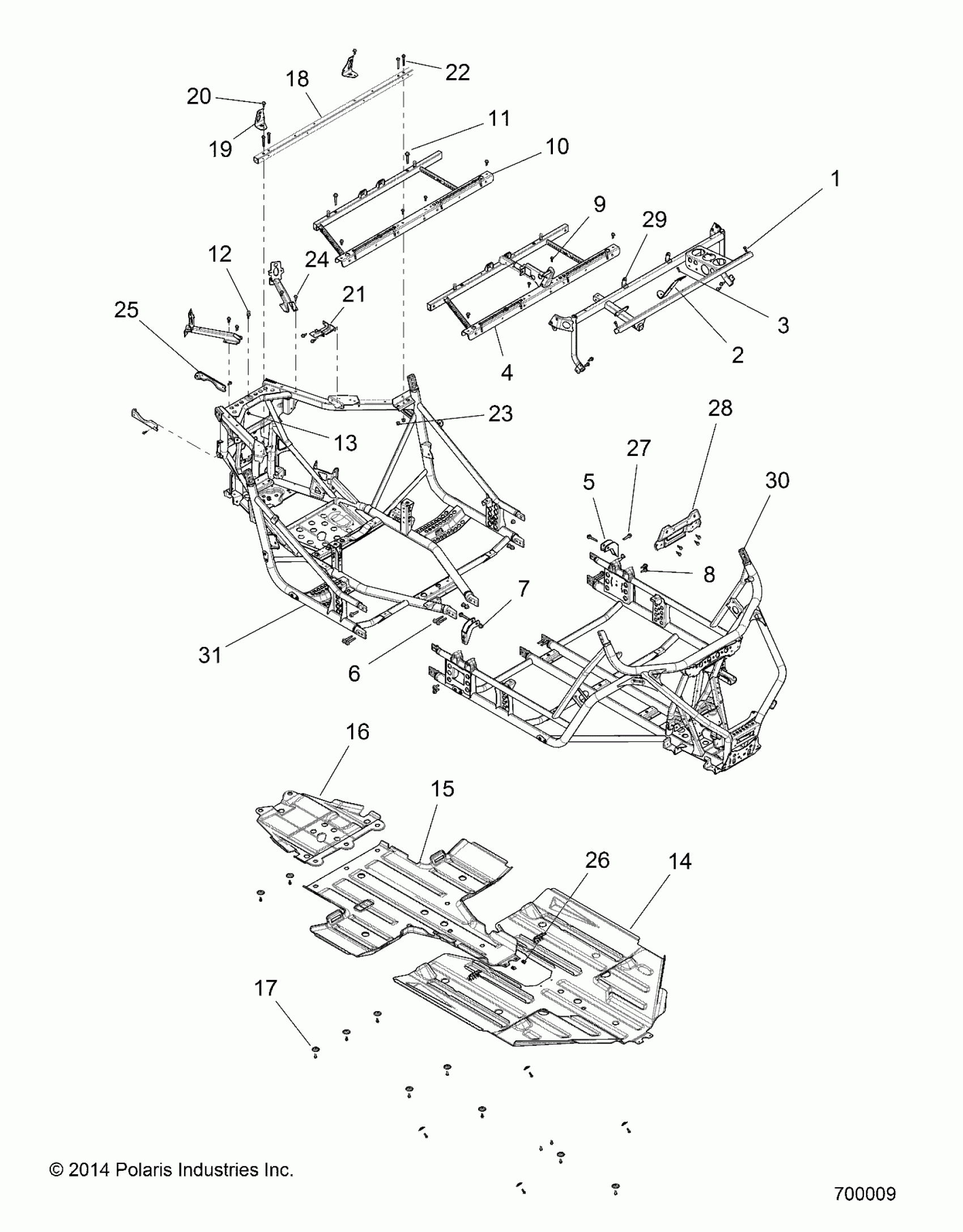

Polaris RZR 4 900 (R12) - Z16VCE87AB/AR/AE/AS CHASSIS, MAIN FRAME AND SKID PLATE - Z16VCE87AB/AR/AE/AS (700009) Diagram

#

Description
Price

1

BOLT-M8X1.25X20,HXFLG

7518555

Unavailable

2

BRKT-DIN MNT,BLK

5257304-329

$27.99

3

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

Unavailable

4

WELD-SEAT BASE,MP,BLK

1020572-329

$183.99

5

BRKT-SEAT SUPPORT,FRT,MP,BLK

5258097-329

$51.99

6

SCR-HXFL-M10X1.25X55 10.9 ZOD

7519285

$2.39

7

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

Unavailable

8

SCR-M10X1.5X25-8.8 HFS ZOD

7518934

$3.99

9

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

10

WELD-SEAT BASE,REAR,BLK

1019777-329

$223.99

11

BOLT-M10X1.5X55,HX HD FLG

7518474

$4.79

12

PLUNGER-BOX LATCH

5139009

$13.59

13

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

14

PLATE-SKID,BLK

5451895-070

$191.99

15

PLATE-SKID,BLK

5439771-070

$167.99

16

PLATE-SKID,REAR,BLK

5450706-070

Unavailable

17

WASHER-SKID PLATE

7556065

$4.79

18

ASM-TUBE,TOP FRAME,E-COAT

1021506-329

$83.59

19

TIEDOWN,FRONT,LH,M.BLK

5259103-458

$30.79

20

TIEDOWN,FRONT,RH,M.BLK

5259104-458

Unavailable

21

MOUNT,COIL,E-COAT

5259105-329

$27.99

22

SCR-M8X1.25X55,HX/FL-Y

7517281

$8.99

23

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

24

WELD-MOUNT,BODY,M.BLK

1020506-458

$59.99

25

BRACKET, FASCIA

5259106

$14.39

26

NUT-M6-1.0,U-TYPE (2.5-3.8)

7547674

$1.49

27

SCR-HXFL-M10X1.25X40 8.8 ZOD

7519332

$5.59

28

BRKT-SUSP MNT,FRT,M.BLK

5259449-458

$51.99

29

WELD-DASH,E-COAT BLK

1020984-329

$307.99

30

WELD-MAINFRAME,FRT,MP,BLK

1021322-458

Unavailable

31

WELD-MAINFRAME,REAR,BLK

1021627-458

Unavailable
