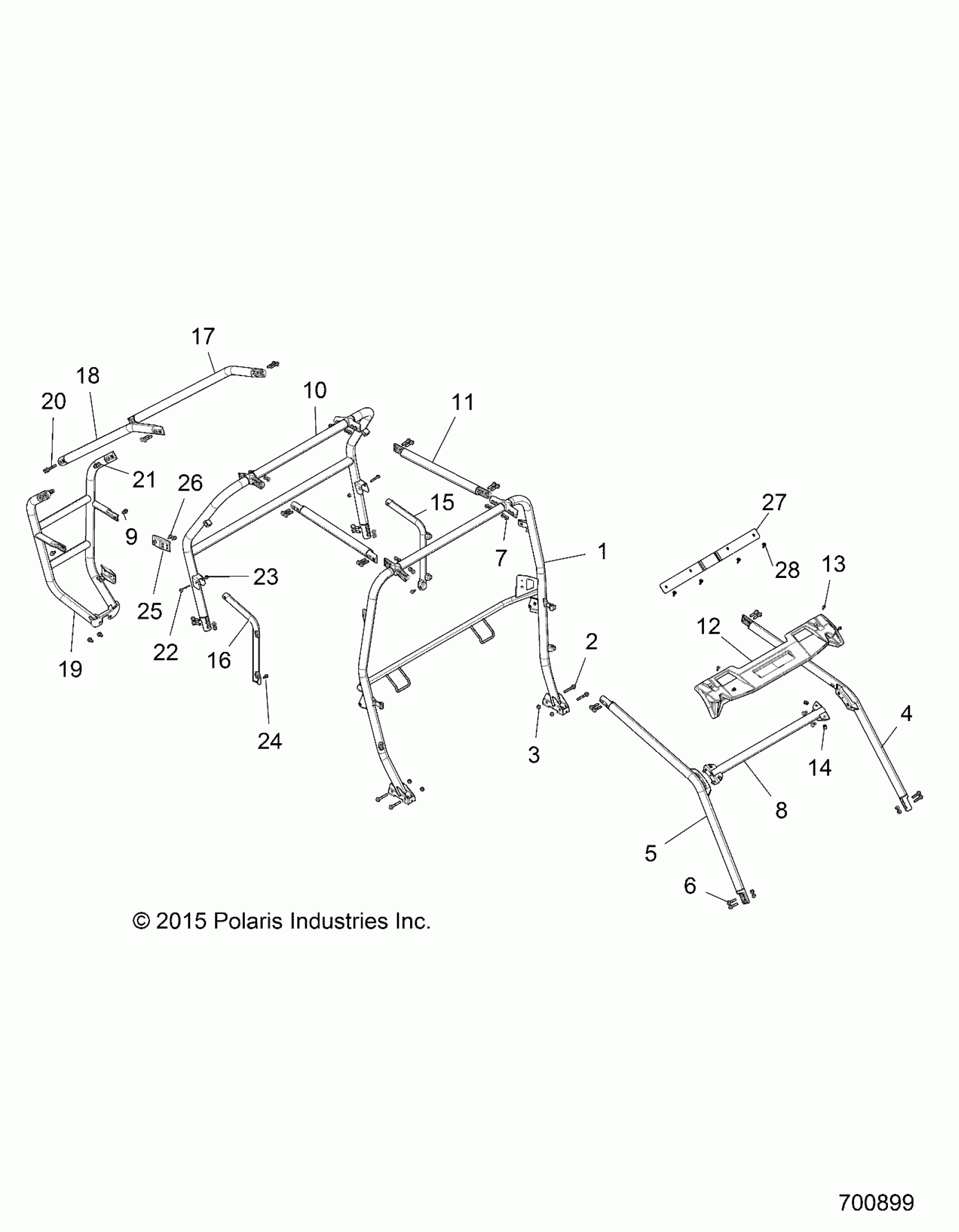

Polaris RZR 4 900 (R12) - Z16VCE87AB/AR/AE/AS CHASSIS, CAB FRAME - Z16VCE87AB/AR/AE/AS (700899) Diagram

#

Description
Price

1

WELD-HOOP,ROPS,MID,MP,BLK [IF BUILT BEFORE 10/1/15]

1020054-458

Unavailable

1

WELD-HOOP,ROPS,MID,MP,BLK [IF BUILT AFTER 10/2/15]

1022059-458

$589.59

2

SCR-HXFL-M10X1.5X65 10.9 RIE

7519903

$9.59

3

NUT-NYLOCK M10X1.5,REF 0600110

7547268

$1.49

4

WELD-ROPS,MP,LH,BLK

1020052-458

$351.99

5

WELD-ROPS,MP,RH,BLK

1020053-458

$351.99

6

SCR-HXFL-M10X1.5X45 10.9 RIE

7519906

$4.79

7

NUT-HEX-M10X1.5 10 ZB3 NYL

7547746

$2.39

8

WELD-ROPS,FRONT,CROSS,BLK [TO 2/20/16]

1020755-458

$197.99

8

WELD-BOLSTER,LH,M.BLK [FROM 2/21/16]

1020237-458

$127.99

9

SCR-HXFL-M10X1.5X20 10.9 RIE P [TO 2/20/16]

7519905

$2.39

9

WELD-BOLSTER,RH,M.BLK [FROM 2/21/16]

1020238-458

$127.99

10

WELD-HOOP,ROPS,REAR,MP,M BLK

1020286-458

$510.39

11

WELD-BRACE,ROPS,MID,BLK

1020057-458

$277.19

12

PANEL-VISOR TRIM,BLK

5450657-070

$51.99

13

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

14

NUT-M6-1.0,U-TYPE (2.5-3.8)

7547674

$1.49

15

WELD-BOLSTER,LH,BLK

1020403-458

Unavailable

16

WELD-BOLSTER,RH,BLK

1020404-458

Unavailable

17

WELD-ROPS,REAR,MP,LH

1020620-458

$184.79

18

WELD-ROPS,REAR,MP,RH,BLK

1020621-458

$184.79

19

WELD-ROPS,C PILLAR,M BLK

1020434-458

$510.39

20

SCR-HXFL-M10X1.25X55 10.9 RIE

7519956

$2.39

21

NUT-HXFL-M10X1.25 8 ZB3 NYL

7547750

$3.99

22

SCR-HXFL-M8X1.25X55 8.8 ZB

7520094

$5.59

23

NUT-HXFL-M8X1.25 8 ZB3 NYL

7547454

Unavailable

24

BOLT-M8X1.25X20,HXHDFLG,W/PTCH

7518450

$1.59

25

BRKT-MOUNT,BUMPER,BLK

5259100-458

$67.99

26

BOLT-M8X1.25X20,HXFLG

7518555

$2.39

27

BRKT-VISOR,BLK

5262666-458

$35.99

28

SCR-M6X1X16 TR/TX-M

7518936

$3.99
