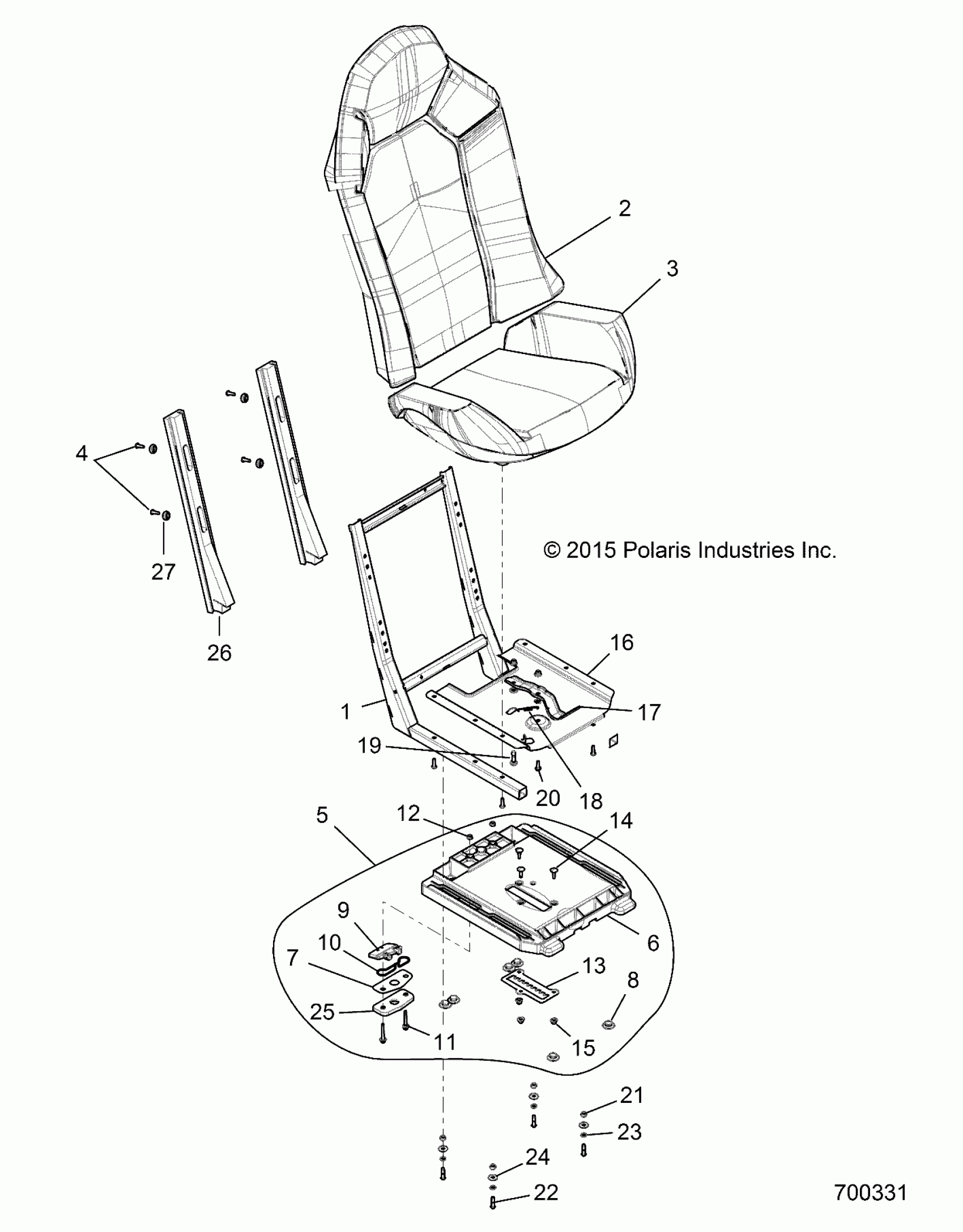

Polaris RZR 4 900 (R12) - Z16VCE87AB/AR/AE/AS BODY, SEAT ASM. AND SLIDER - Z16VCE87AB/AR/AE/AS (700331) Diagram

#

Description
Price

1

FRAME, SEAT

1021289

$67.99

2

ASM-SEAT BACK,HAV RED/BLK [AR]

2686791

Unavailable

2

ASM-SEAT BACK,BLK/WHT [AB][AE][AS]

2686828

$409.49

3

ASM-SEAT BTM,HAV RED/BLK [AR]

2686794

Unavailable

3

ASM-SEAT BTM,BLK/WHT [AB][AE][AS]

2686831

$247.99

4

SCREW

7515177

$3.19

5

ASM., BASE, SEAT SLIDER [INCL. 6-14, QTY 6 OF 15]

2685704

$195.99

6

SEAT-BASE [INCL. 7-12]

5450170

$42.06

7

PLATE-LATCH,SEAT

5258647

$6.39

8

GROMMET, SEAT BASE

5413441

$3.99

9

HANDLE-SEAT BASE LATCH

5437121

$4.84

10

SPRING, LATCH, SEAT

7081466

$39.99

11

Screw

7517610

$1.59

12

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

13

BRACKET, SEAT SLIDER ADJUSTMENT PLATE

5257975

Unavailable

14

BOLT, CARRIAGE

7518994

$3.22

15

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

16

BRACKET, SEAT SLIDER MOUNTING PLATE

5261437

$59.99

17

BRACKET, SEAT SLIDER LEVER

5260733

$27.99

18

SPRING

7044099

$5.59

19

BOLT, SHOULDER

7518786

$2.39

20

BOLT, SHOULDER

7518897

$1.59

21

TUBE, SPACER

5337939

Unavailable

22

SCREW

7519296

$1.59

23

WASHER, SPRING LOCK

7552801

$1.59

24

Washer, Flat

7555859

$1.49

25

LATCH, COVER PLATE, BLACK

5450510-070

$4.79

26

PAD-SEAT BASE,RZR,MP

5415501-070

$35.99

27

BOLT-SHOULDER SLEEVE

5140211

$3.99
